Vista do motor, lado esquerdo - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma

Engine Left-Hand View - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma

Elétrico · página 494 de 620 · 700-00-30 · motor 2.2

Página 494 do Diagramas Elétricos: Vista do motor, lado esquerdo - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/eletrico/494
Imagem: https://ranger.mbrace.com.br/img/eletrico/494.webp

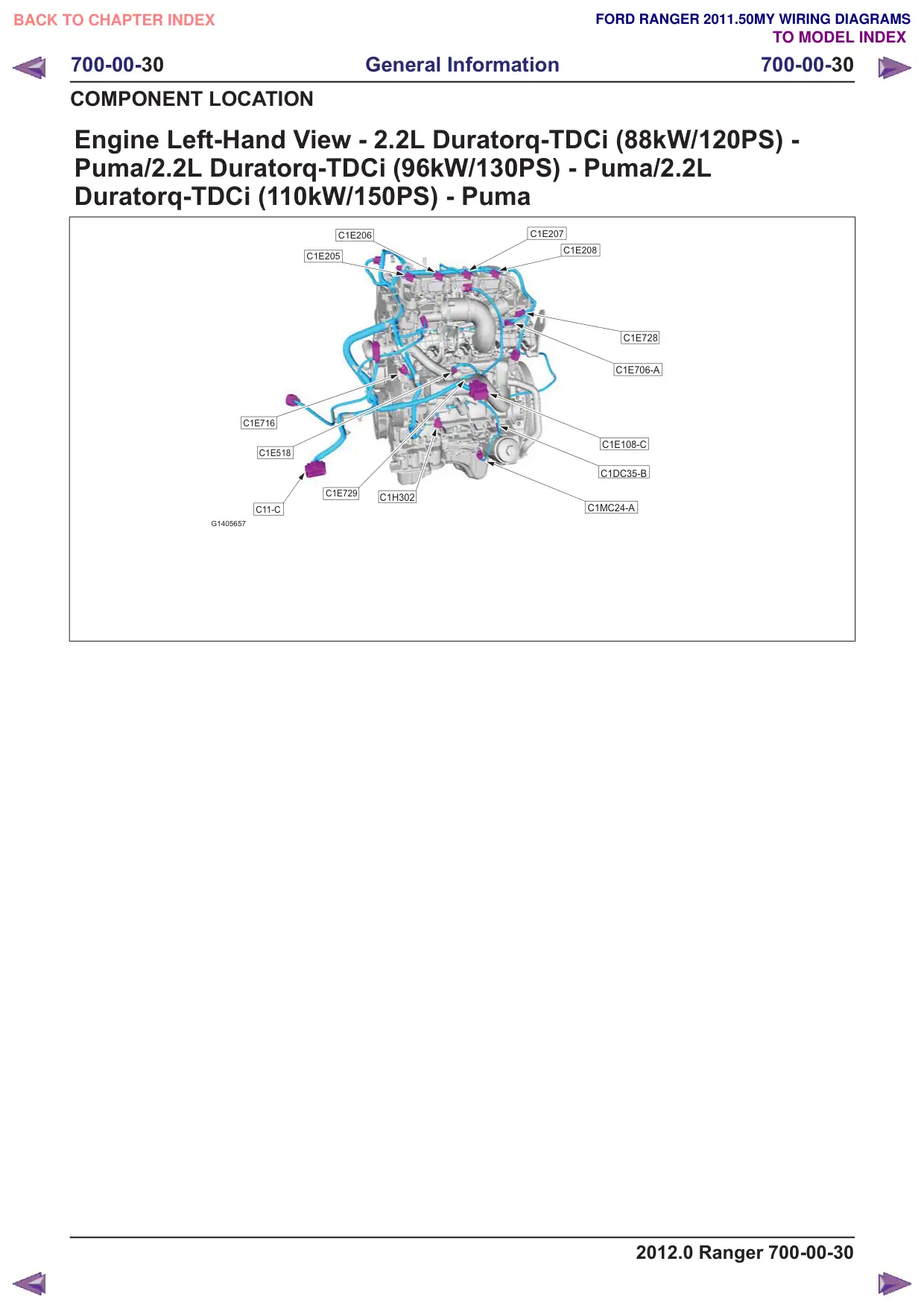

700-00-30 General Information 700-00-30 COMPONENT LOCATION Engine Left-Hand View - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma C1E206 C1E205 C1E716 C1E518 C1E729 C1H302 C11-C G1405657 C1E207 C1E208 C1E728 C1E706-A C1E108-C C1DC35-B C1MC24-A 2012.0 Ranger 700-00-30
