General Information
100-00-8
DESCRIPTION AND OPERATION

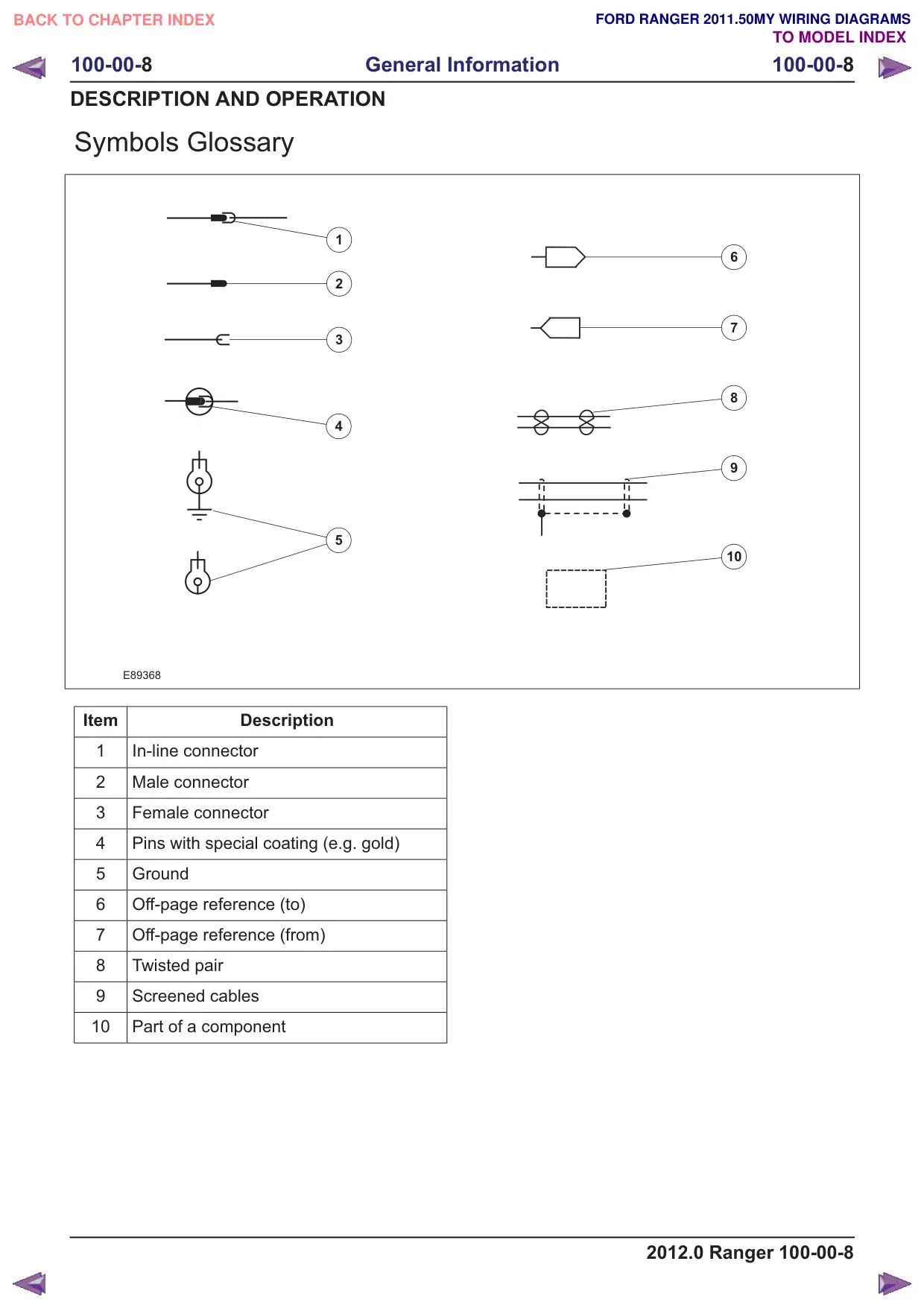

Symbols Glossary
1
2
3
4
5
E89368
Item
Description
1
In-line connector
2
Male connector
3
Female connector
4
Pins with special coating (e.g. gold)
5
Ground
6
Off-page reference (to)
7
Off-page reference (from)
8
Twisted pair
9
Screened cables
10
Part of a component
6
7
8
9
10
2012.0 Ranger 100-00-8
