General Information
100-00-20
100-00-20
DESCRIPTION AND OPERATION
Item
Description
5
Convertible body style
6
Van body style
7
3, 4, 5-door body style - Top View
8
Wagon body style - Top View
Underview
1
4
7
E88972
Item
Description
10
Right-hand drive (RHD) vehicle
11
Left-hand drive (LHD) vehicle

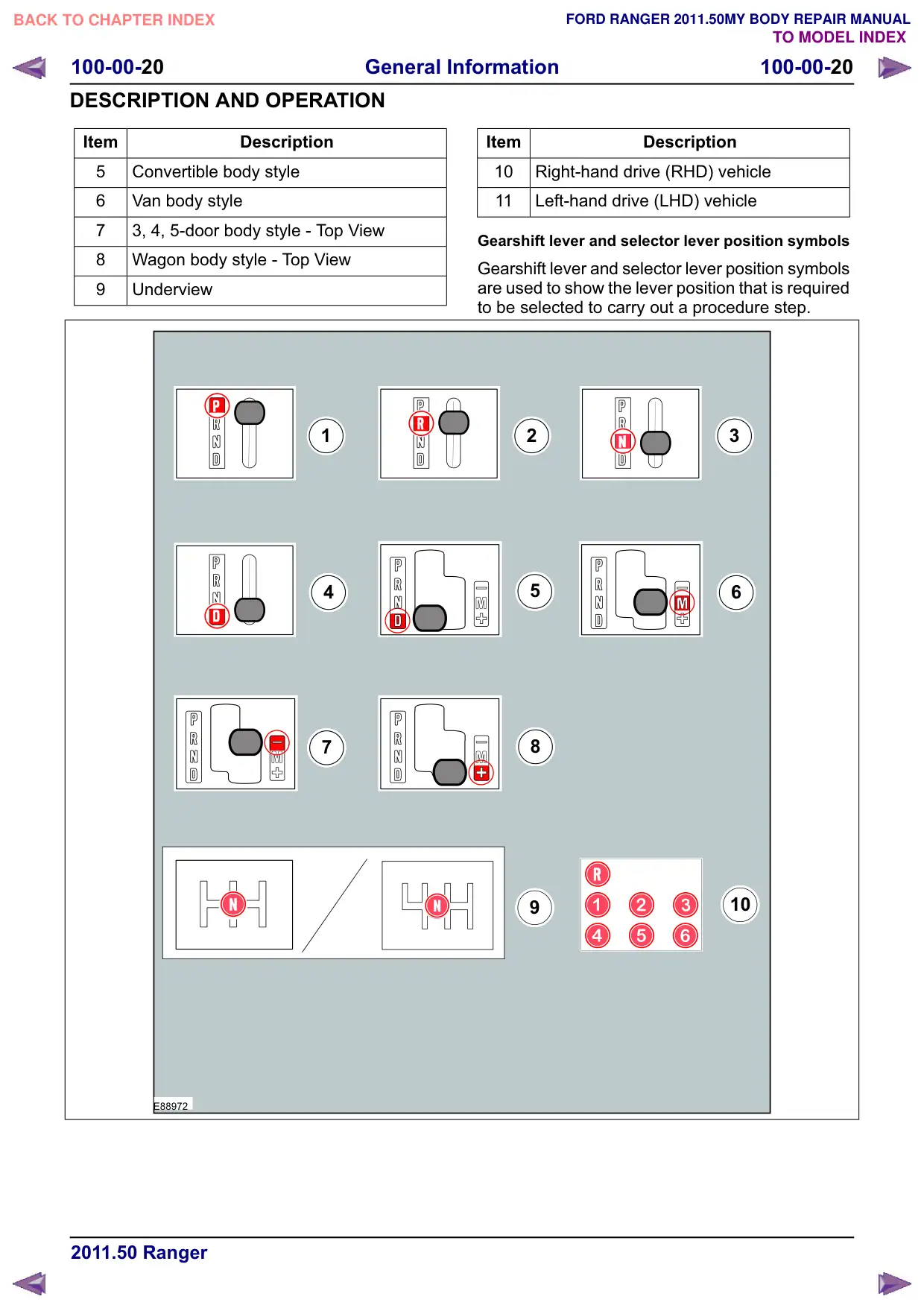

Gearshift lever and selector lever position symbols
Gearshift lever and selector lever position symbols
are used to show the lever position that is required
to be selected to carry out a procedure step.
2
3
5
6
8
10
