Forro da porta dianteira

Front Door Trim Panel

Carroceria · página 49 de 566 · 501-05-10 · parte 1 de 2

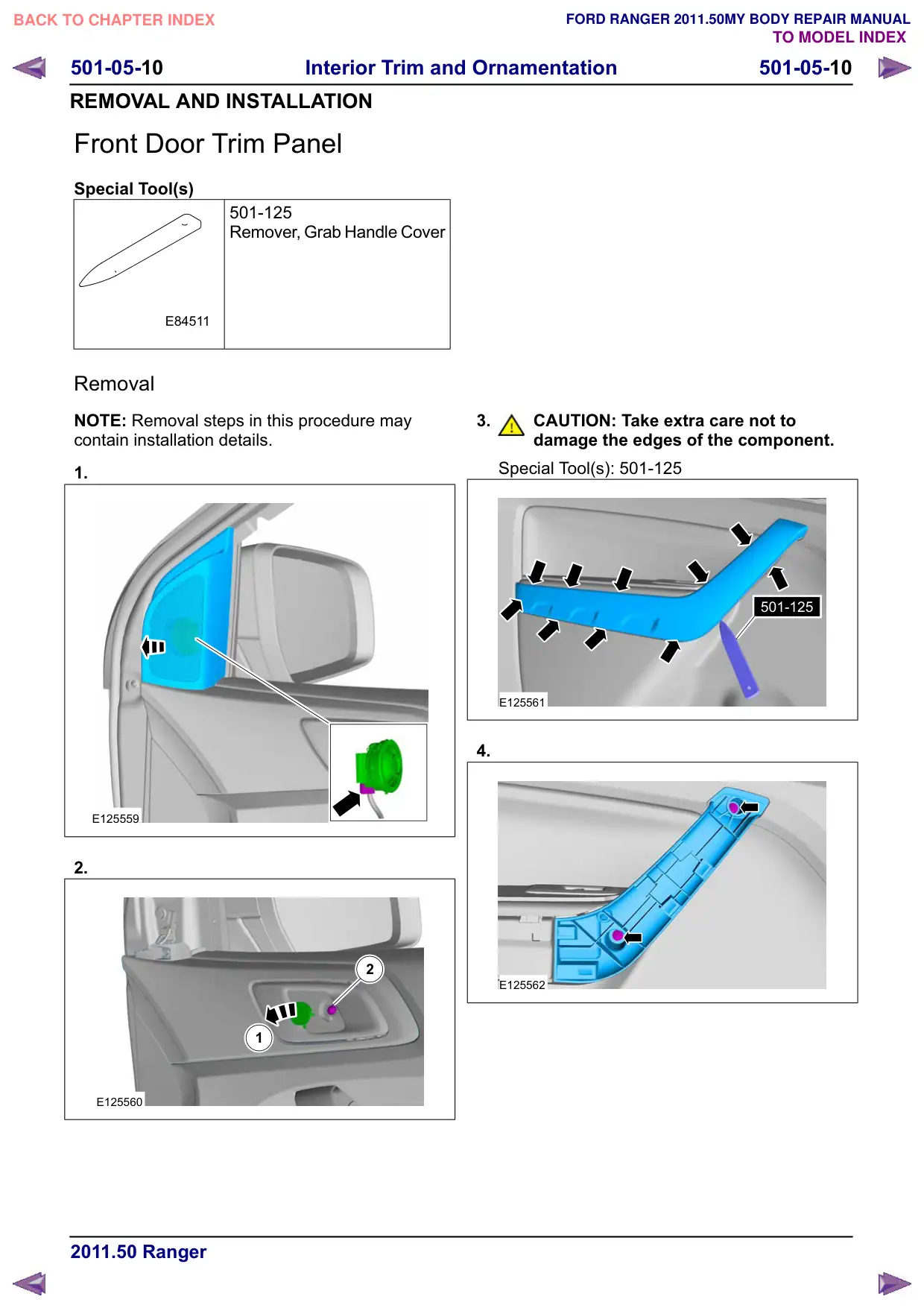

Página 49 do Manual de Carroceria: Forro da porta dianteira

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/49
Imagem: https://ranger.mbrace.com.br/img/carroceria/49.webp

501-05-10 Interior Trim and Ornamentation 501-05-10 REMOVAL AND INSTALLATION Front Door Trim Panel Special Tool(s) 501-125 Remover, Grab Handle Cover E84511 Removal NOTE: Removal steps in this procedure may contain installation details. 1. E125559 2. 2 1 E125560 3. CAUTION: Take extra care not to damage the edges of the component. Special Tool(s): 501-125 501-125 E125561 4. E125562
