Acabamento lateral do cowl

Cowl Side Trim Panel

Carroceria · página 48 de 566 · 501-05

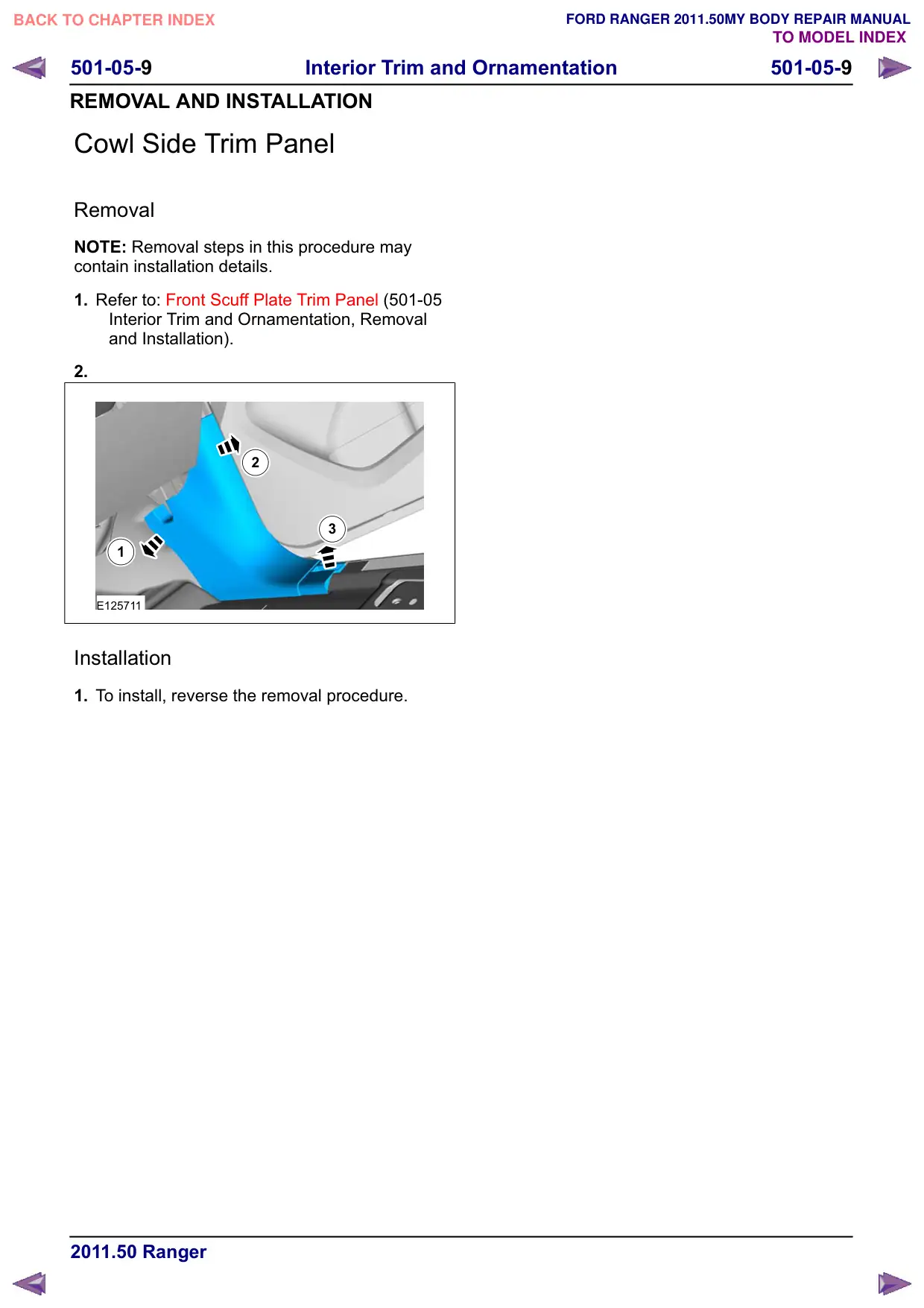

Página 48 do Manual de Carroceria: Acabamento lateral do cowl

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/48
Imagem: https://ranger.mbrace.com.br/img/carroceria/48.webp

501-05- Interior Trim and Ornamentation 501-05- REMOVAL AND INSTALLATION Cowl Side Trim Panel Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). 2. 2 3 1 E125711 Installation 1. To install, reverse the removal procedure.
