Painel traseiro – Cabine simples

Back Panel – Single Cab

Carroceria · página 454 de 566 · 501-30-2 · parte 1 de 3

Página 454 do Manual de Carroceria: Painel traseiro – Cabine simples

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/454
Imagem: https://ranger.mbrace.com.br/img/carroceria/454.webp

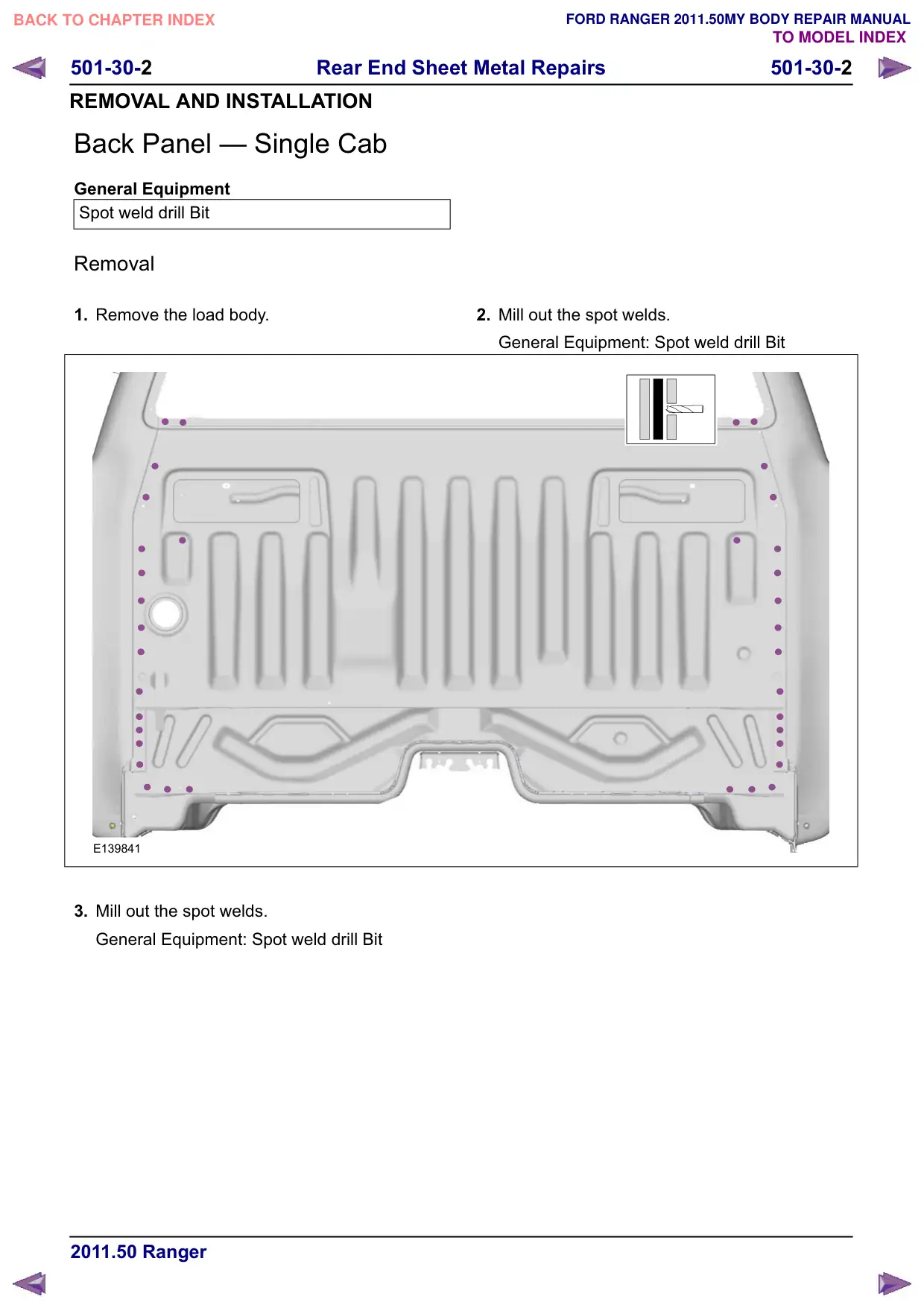

501-30-2 Rear End Sheet Metal Repairs 501-30-2 REMOVAL AND INSTALLATION Back Panel – Single Cab General Equipment Spot weld drill Bit Removal 1. Remove the load body. E139841 3. Mill out the spot welds. General Equipment: Spot weld drill Bit 2. Mill out the spot welds. General Equipment: Spot weld drill Bit
