Reforço do painel do cavalete do para-lama

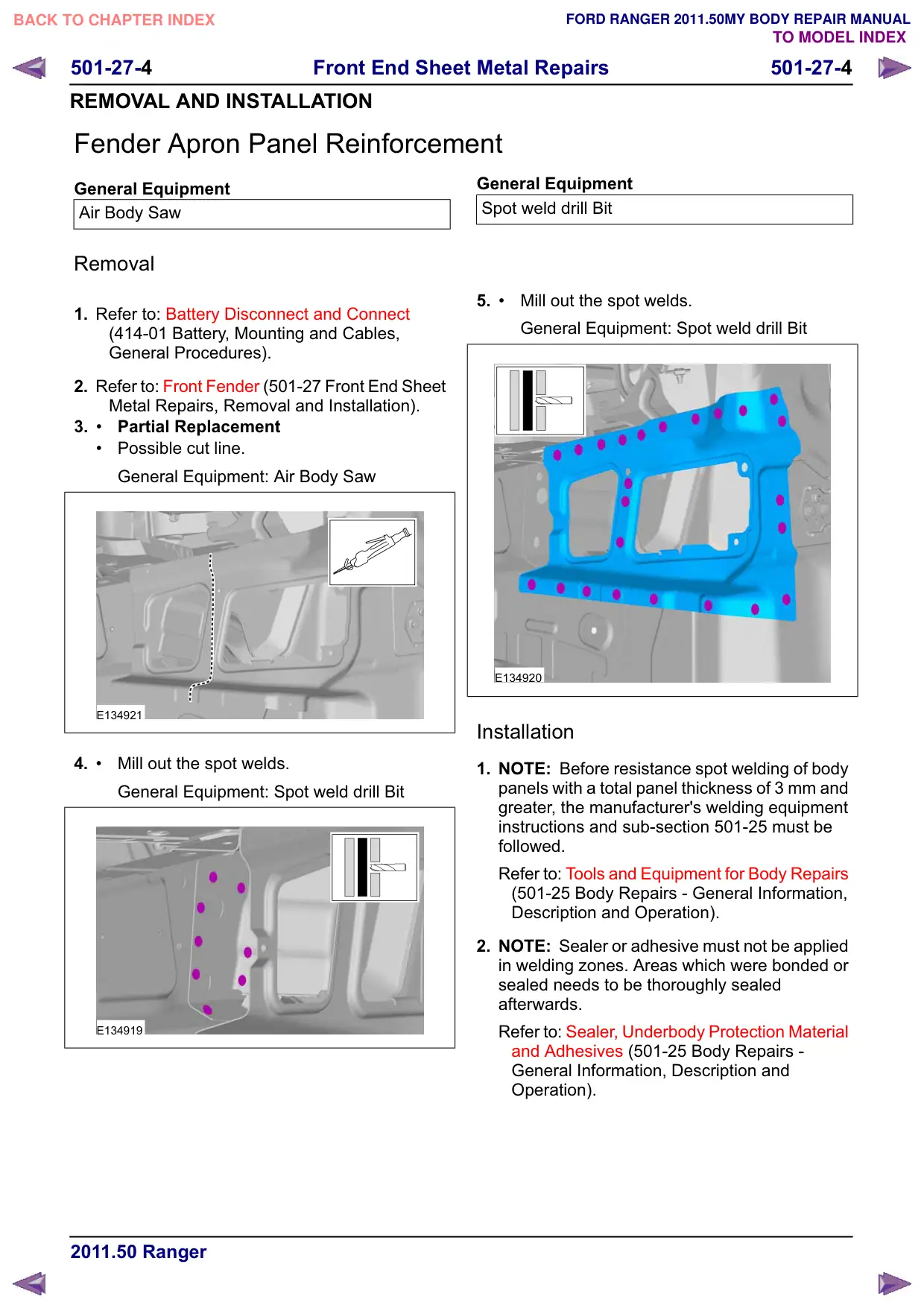

501-27-4 Front End Sheet Metal Repairs 501-27-4 REMOVAL AND INSTALLATION Fender Apron Panel Reinforcement General Equipment Air Body Saw Removal 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Front Fender (501-27 Front End Sheet Metal Repairs, Removal and Installation). 3. ‡ Partial Replacement ‡ Possible cut line. General Equipment: Air Body Saw E134921 4. ‡ Mill out the spot welds. General Equipment: Spot weld drill Bit E134919 General Equipment Spot weld drill Bit 5. ‡ Mill out the spot welds. General Equipment: Spot weld drill Bit E134920 Installation 1. NOTE: Before resistance spot welding of body panels with a total panel thickness of 3 mm and greater, the manufacturer's welding equipment instructions and sub-section 501-25 must be followed. Refer to: Tools and Equipment for Body Repairs (501-25 Body Repairs - General Information, Description and Operation). 2. NOTE: Sealer or adhesive must not be applied in welding zones. Areas which were bonded or sealed needs to be thoroughly sealed afterwards. Refer to: Sealer, Underbody Protection Material and Adhesives (501-25 Body Repairs - General Information, Description and Operation).
