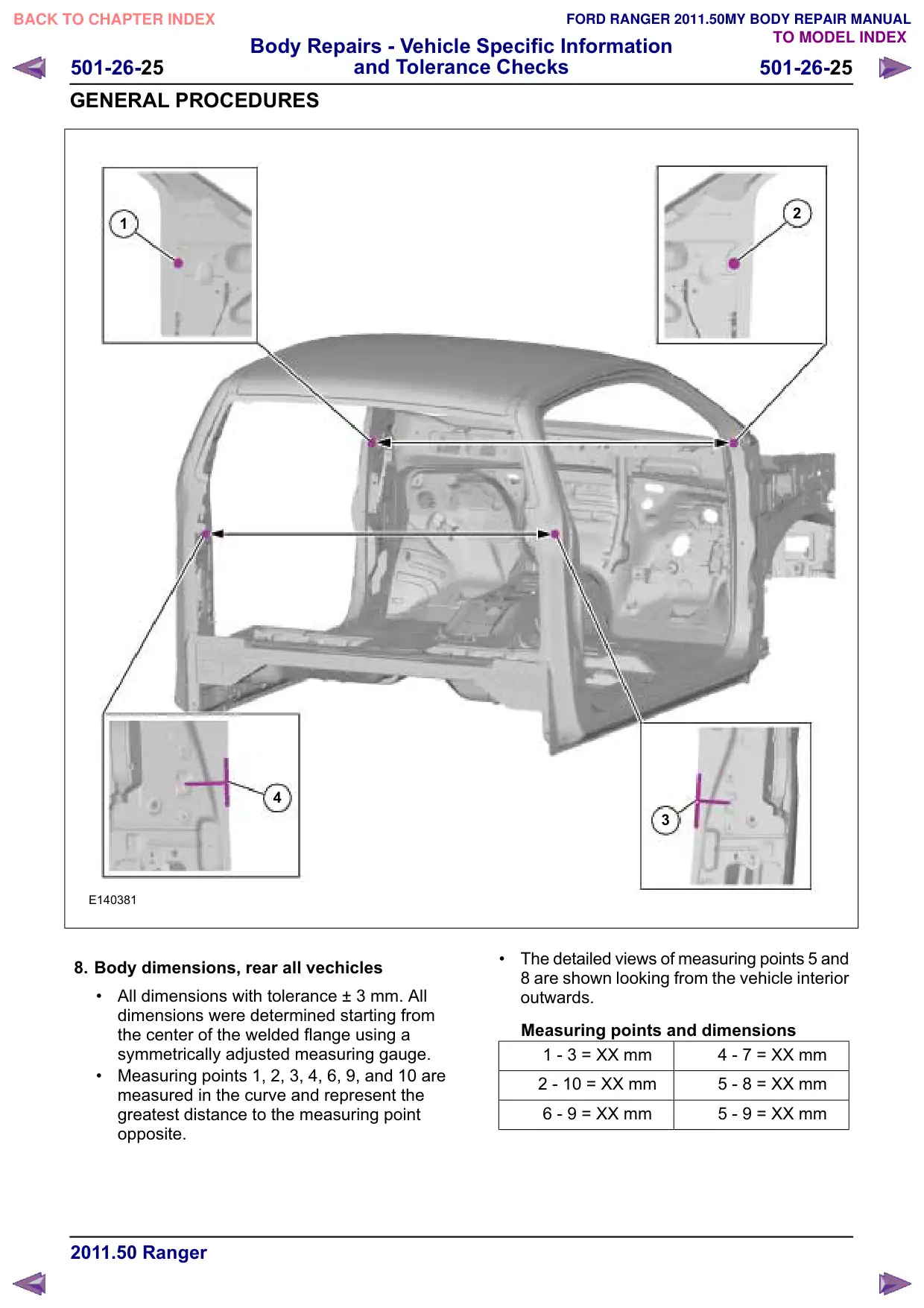

Body Repairs - Vehicle Specific Information 501-26-25 and Tolerance Checks 501-26-25 GENERAL PROCEDURES 1 4 E140381 8. Body dimensions, rear all vechicles ‡ All dimensions with tolerance ± 3 mm. All dimensions were determined starting from the center of the welded flange using a symmetrically adjusted measuring gauge. ‡ Measuring points 1, 2, 3, 4, 6, 9, and 10 are measured in the curve and represent the greatest distance to the measuring point opposite. 2 3 ‡ The detailed views of measuring points 5 and 8 are shown looking from the vehicle interior outwards. Measuring points and dimensions 1 - 3 XX mm 4 - 7 XX mm 2 - 10 XX mm 5 - 8 XX mm 6 - 9 XX mm 5 - 9 XX mm
