Verificação de tolerâncias da parte inferior da carroceria

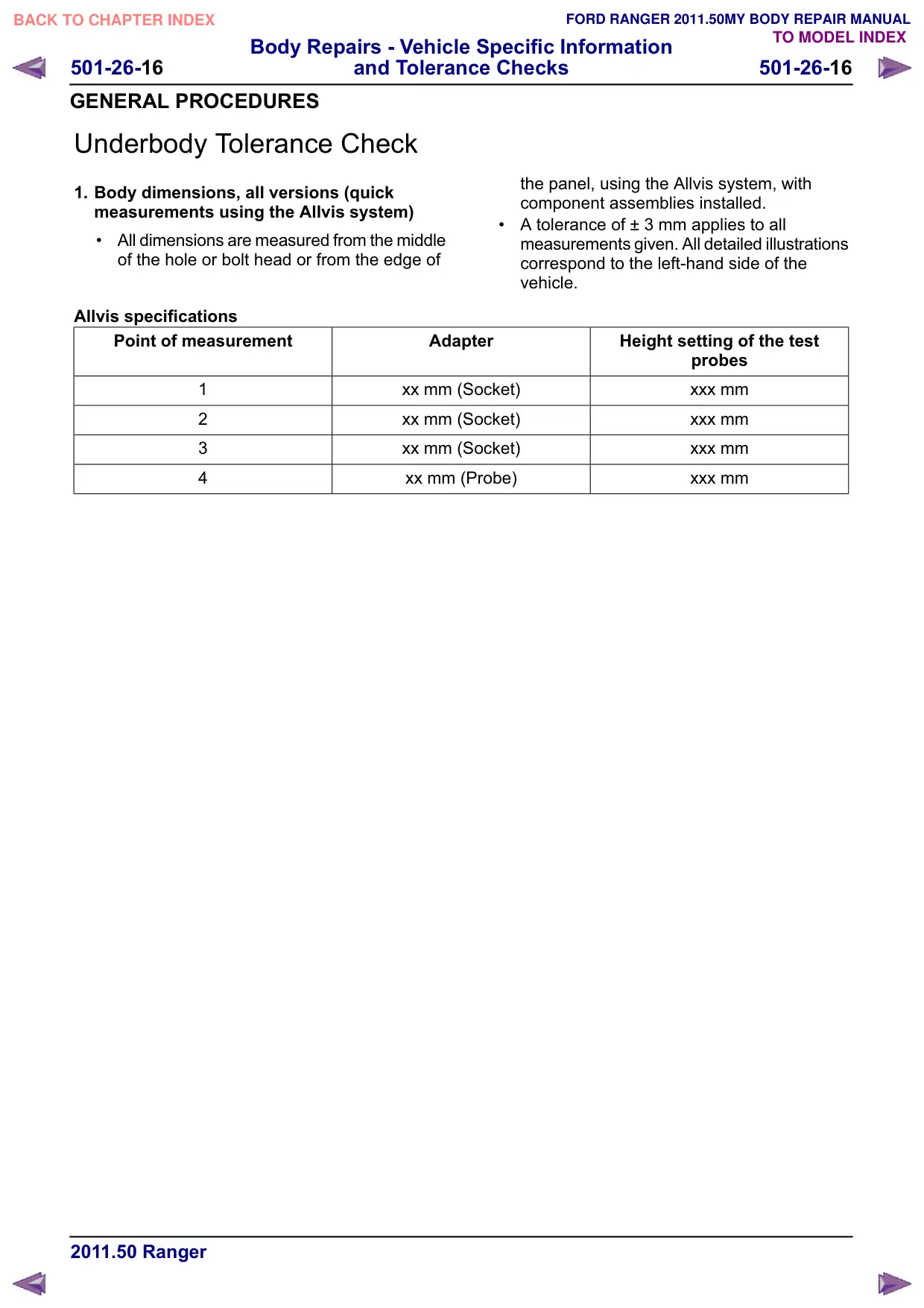

Body Repairs - Vehicle Specific Information 501-26-16 and Tolerance Checks 501-26-16 GENERAL PROCEDURES Underbody Tolerance Check 1. Body dimensions, all versions (quick measurements using the Allvis system) ‡ All dimensions are measured from the middle of the hole or bolt head or from the edge of Allvis specifications Point of measurement Adapter 1 xx mm (Socket) 2 xx mm (Socket) 3 xx mm (Socket) 4 xx mm (Probe) the panel, using the Allvis system, with component assemblies installed. ‡ A tolerance of ± 3 mm applies to all measurements given. All detailed illustrations correspond to the left-hand side of the vehicle. Height setting of the test probes xxx mm xxx mm xxx mm xxx mm
