Carroceria e estrutura – Localização de componentes

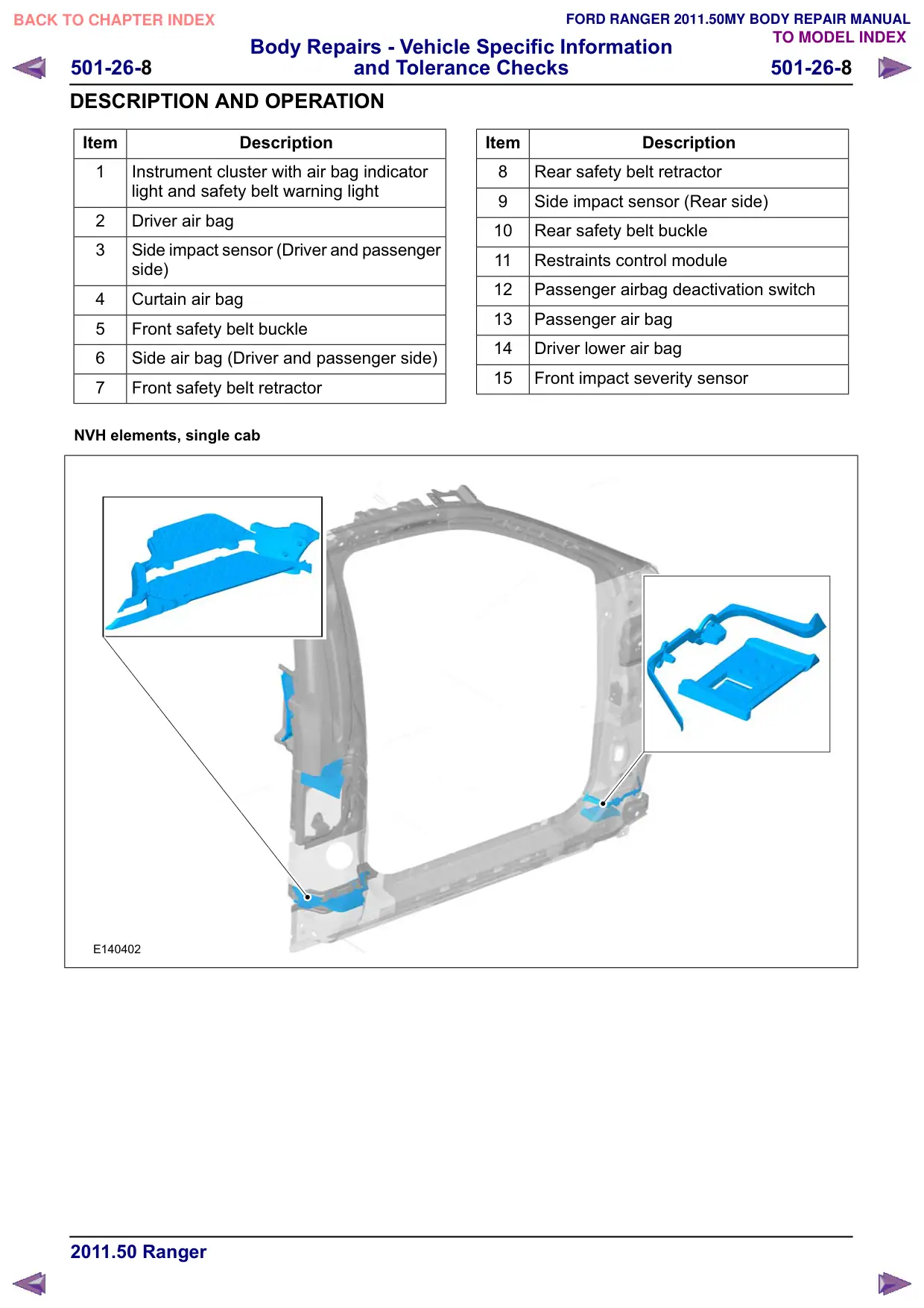

Body Repairs - Vehicle Specific Information 501-26-8 and Tolerance Checks 501-26-8 DESCRIPTION AND OPERATION Item Description 1 Instrument cluster with air bag indicator light and safety belt warning light 2 Driver air bag 3 Side impact sensor (Driver and passenger side) 4 Curtain air bag 5 Front safety belt buckle 6 Side air bag (Driver and passenger side) 7 Front safety belt retractor NVH elements, single cab E140402 Item Description 8 Rear safety belt retractor Side impact sensor (Rear side) 10 Rear safety belt buckle 11 Restraints control module 12 Passenger airbag deactivation switch 13 Passenger air bag 14 Driver lower air bag 15 Front impact severity sensor
