Porta dianteira

Front Door

Carroceria · página 36 de 566 · 501-03-27 · parte 1 de 2

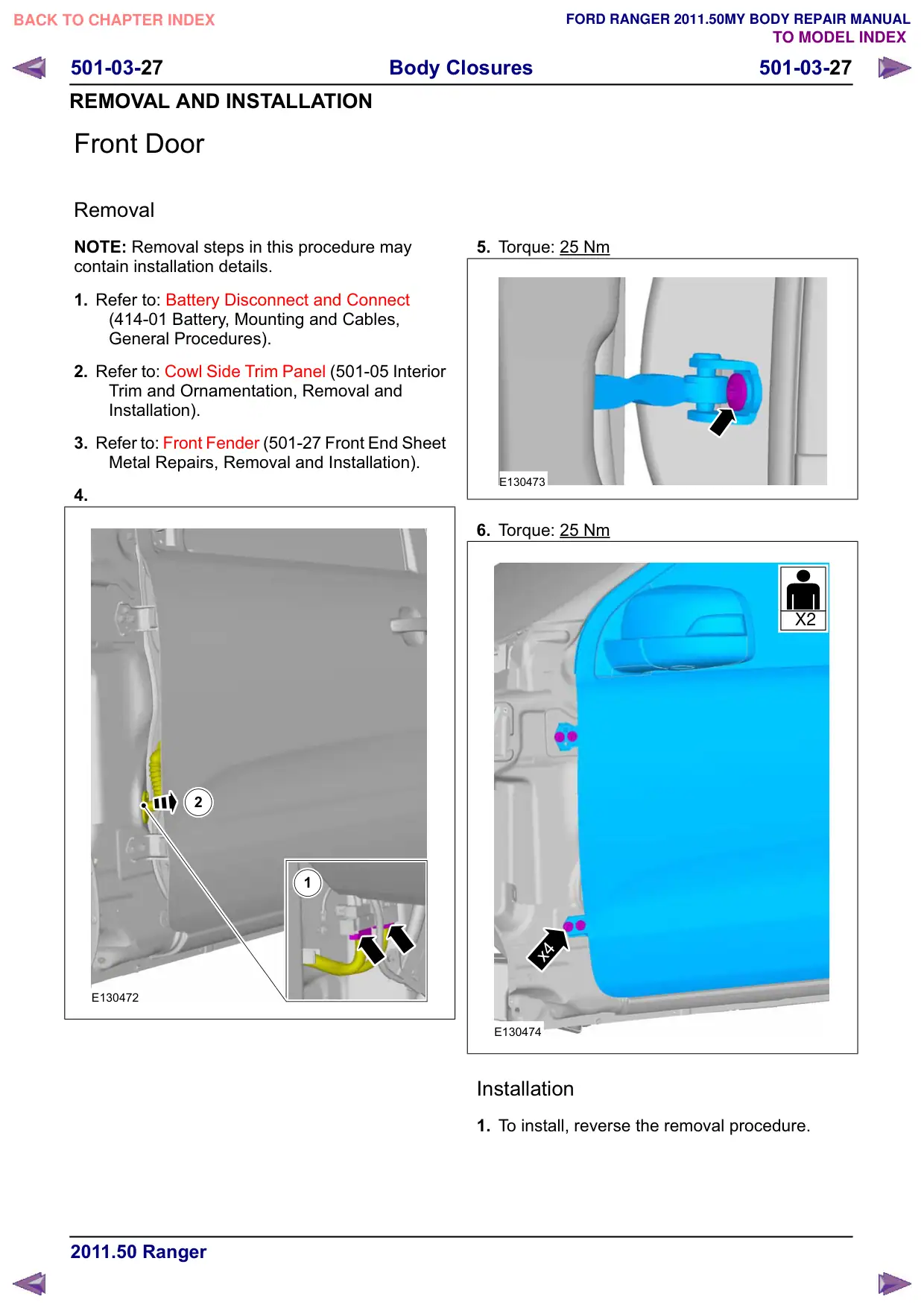

Página 36 do Manual de Carroceria: Porta dianteira

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/36
Imagem: https://ranger.mbrace.com.br/img/carroceria/36.webp

501-03-27 Body Closures 501-03-27 REMOVAL AND INSTALLATION Front Door Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). 3. Refer to: Front Fender (501-27 Front End Sheet Metal Repairs, Removal and Installation). 4. 2 1 E130472 5. Torque: 25 Nm E130473 6. Torque: 25 Nm X2 x4 E130474 Installation 1. To install, reverse the removal procedure.
