Módulo de controle de retenção (RCM)

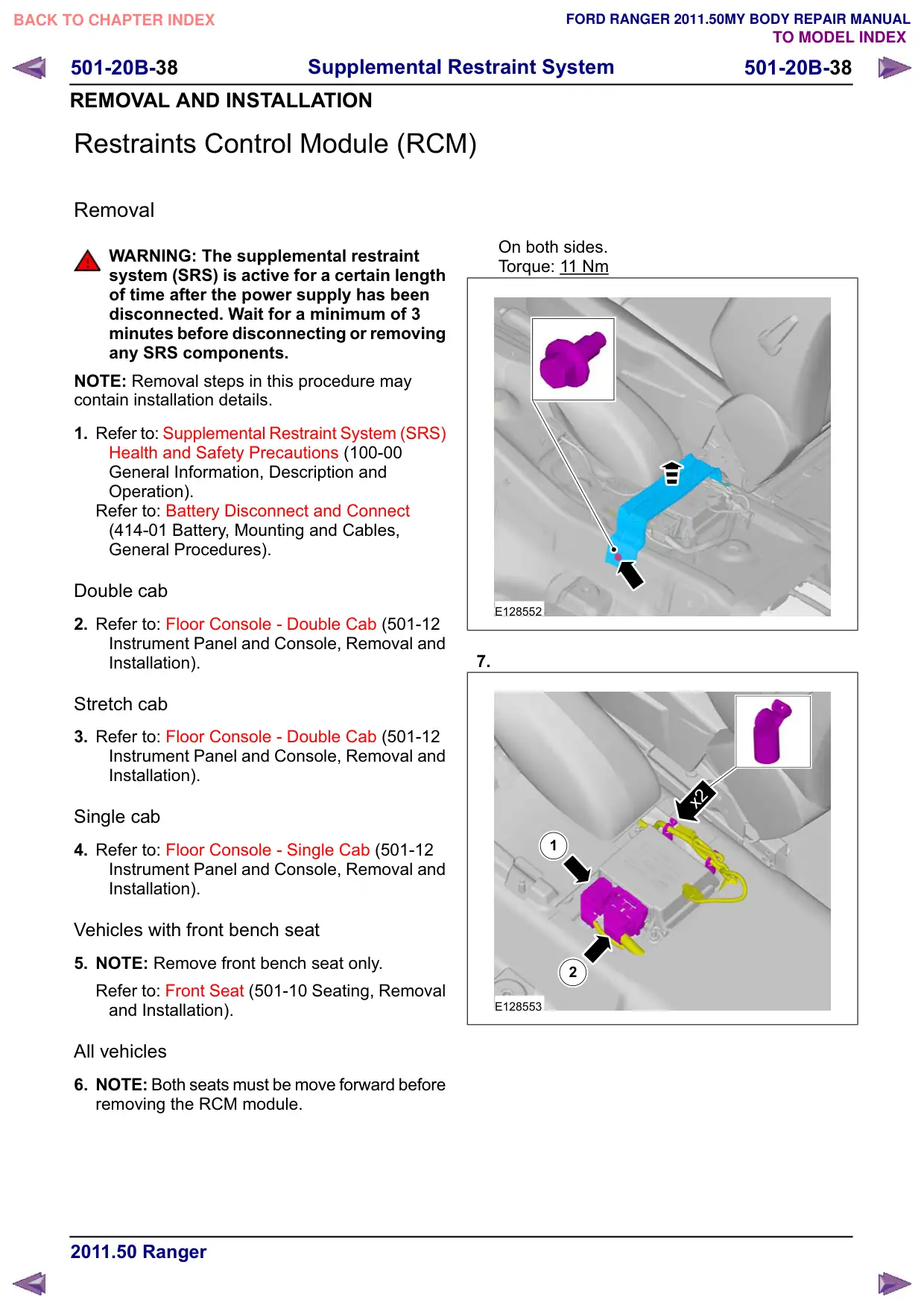

501-20B-38 Supplemental Restraint System 501-20B-38 REMOVAL AND INSTALLATION Restraints Control Module (RCM) Removal WARNING: The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions (100-00 General Information, Description and Operation). Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). Double cab 2. Refer to: Floor Console - Double Cab (501-12 Instrument Panel and Console, Removal and Installation). Stretch cab 3. Refer to: Floor Console - Double Cab (501-12 Instrument Panel and Console, Removal and Installation). Single cab 4. Refer to: Floor Console - Single Cab (501-12 Instrument Panel and Console, Removal and Installation). Vehicles with front bench seat 5. NOTE: Remove front bench seat only. Refer to: Front Seat (501-10 Seating, Removal and Installation). All vehicles 6. NOTE: Both seats must be move forward before removing the RCM module. On both sides. Torque: 11 Nm E128552 7. x2 1 2 E128553
