Módulo do airbag lateral
Side Air Bag Module
Texto da página
Link desta página: https://ranger.mbrace.com.br/carroceria/247
Imagem: https://ranger.mbrace.com.br/img/carroceria/247.webp

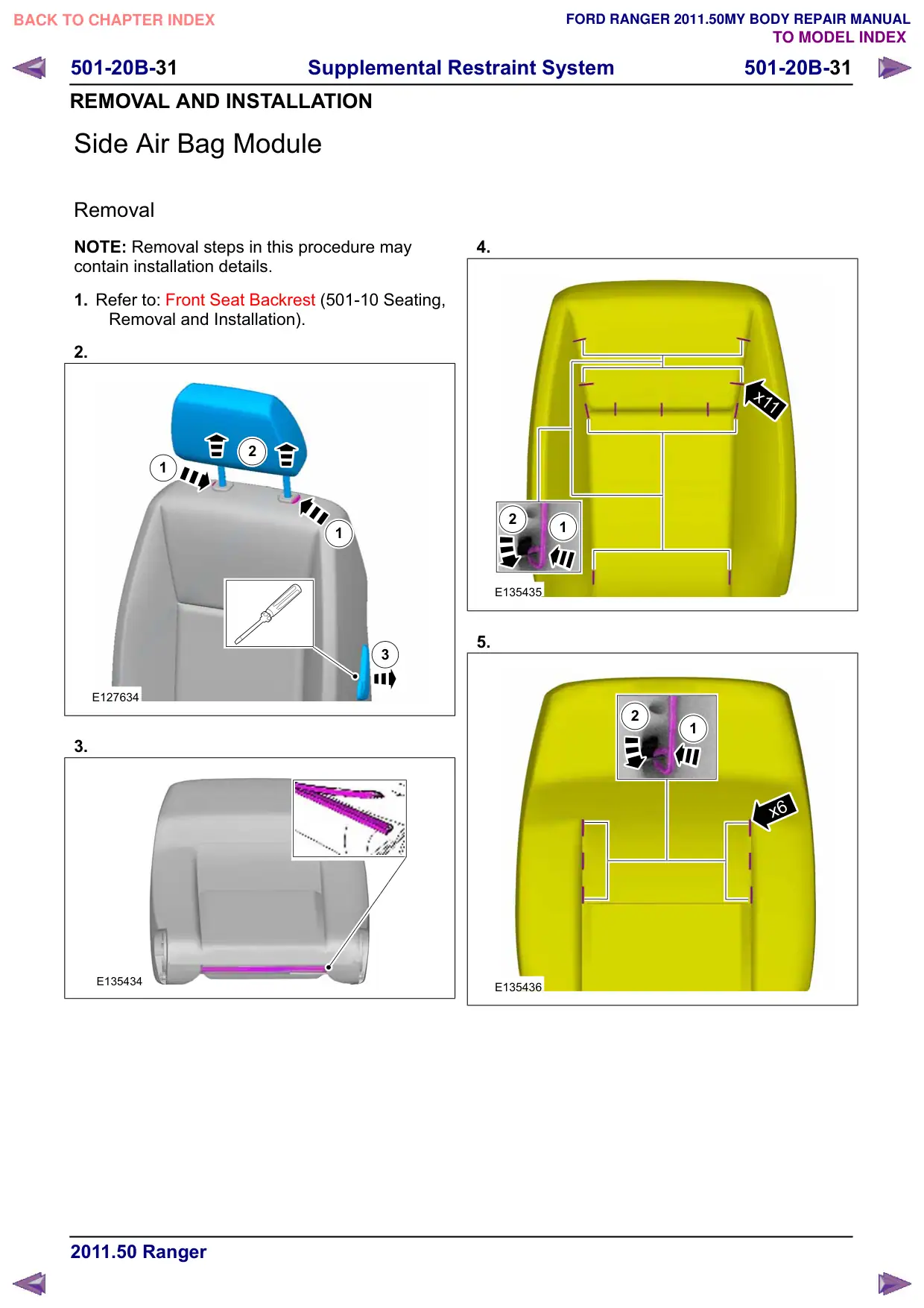

501-20B-31
Supplemental Restraint System
501-20B-31
REMOVAL AND INSTALLATION
Side Air Bag Module
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Front Seat Backrest (501-10 Seating,
Removal and Installation).
2.
2
1
1
3
E127634
3.
E135434
4.
x11
2
1
E135435
5.
2
1
x6
E135436
