Módulo do airbag inferior do motorista

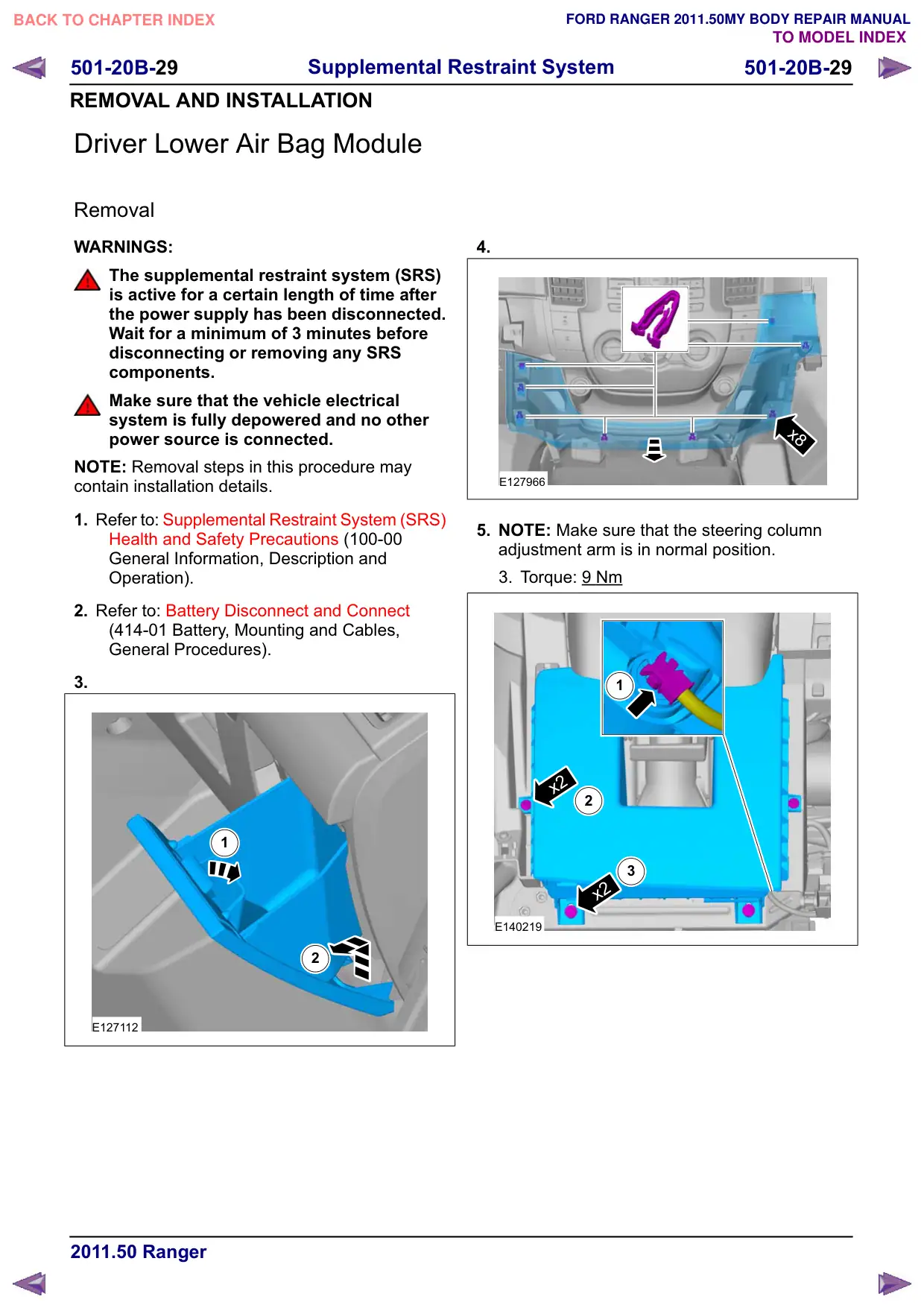

501-20B-29 Supplemental Restraint System 501-20B-29 REMOVAL AND INSTALLATION Driver Lower Air Bag Module Removal WARNINGS: The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components. Make sure that the vehicle electrical system is fully depowered and no other power source is connected. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 3. 1 2 E127112 4. x8 E127966 5. NOTE: Make sure that the steering column adjustment arm is in normal position. 3. Torque: 9 Nm 1 x2 2 3 x2 E140219
