Descarte de airbag e pré-tensionador do cinto de veículo sucateado

Scrapped Vehicle Air Bag and Safety Belt Pretensioner Disposal

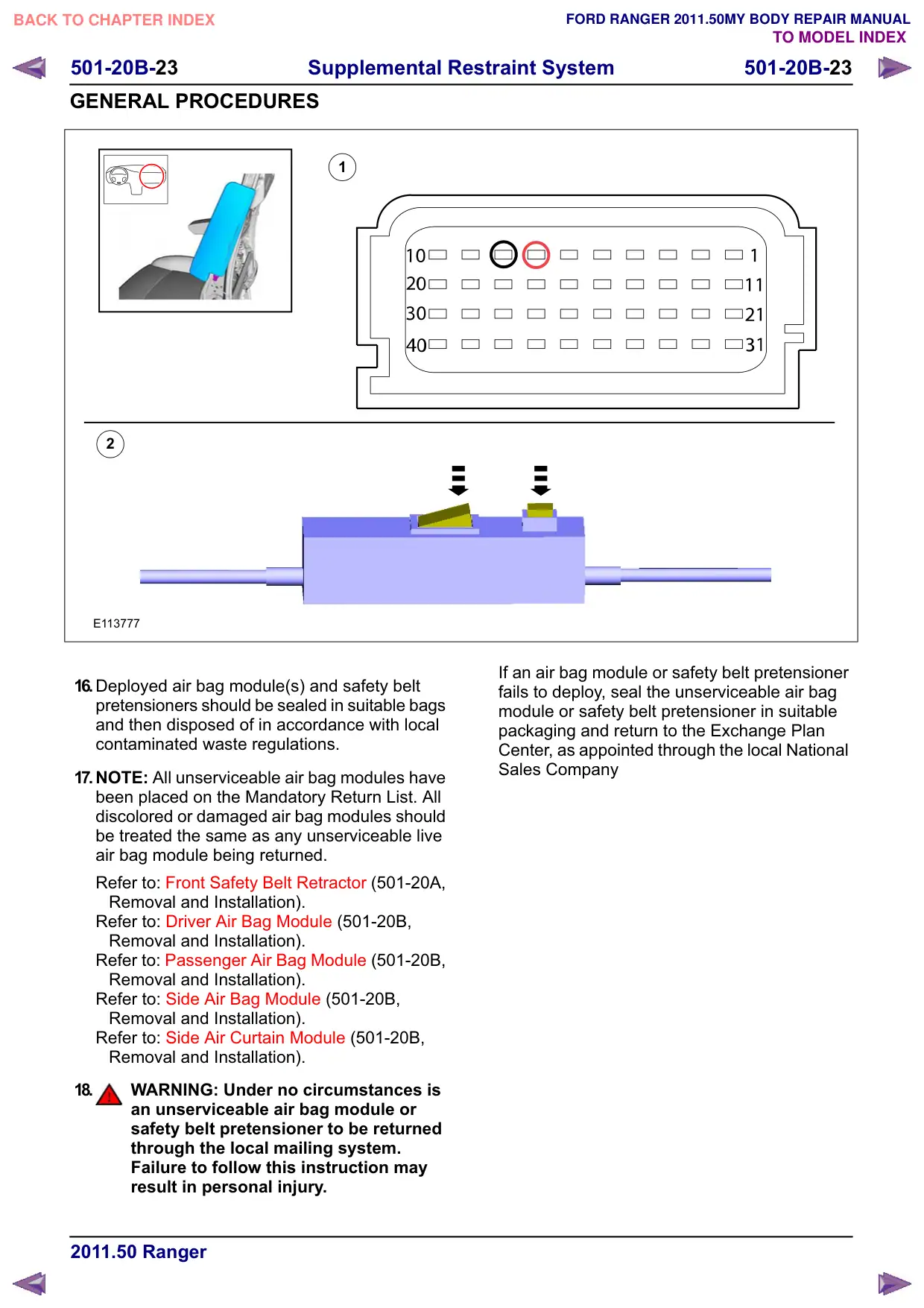

Carroceria · página 239 de 566 · 501-20B-23 · parte 10 de 10

Página 239 do Manual de Carroceria: Descarte de airbag e pré-tensionador do cinto de veículo sucateado
Explicar no Gemini Ampliar imagem Traduzir texto
Texto da página
501-20B-23 Supplemental Restraint System 501-20B-23 GENERAL PROCEDURES 1 2 E113777 16.Deployed air bag module(s) and safety belt pretensioners should be sealed in suitable bags and then disposed of in accordance with local contaminated waste regulations. 17.NOTE: All unserviceable air bag modules have been placed on the Mandatory Return List. All discolored or damaged air bag modules should be treated the same as any unserviceable live air bag module being returned. Refer to: Front Safety Belt Retractor (501-20A, Removal and Installation). Refer to: Driver Air Bag Module (501-20B, Removal and Installation). Refer to: Passenger Air Bag Module (501-20B, Removal and Installation). Refer to: Side Air Bag Module (501-20B, Removal and Installation). Refer to: Side Air Curtain Module (501-20B, Removal and Installation). 18. WARNING: Under no circumstances is an unserviceable air bag module or safety belt pretensioner to be returned through the local mailing system. Failure to follow this instruction may result in personal injury. If an air bag module or safety belt pretensioner fails to deploy, seal the unserviceable air bag module or safety belt pretensioner in suitable packaging and return to the Exchange Plan Center, as appointed through the local National Sales Company
