Ajuste da mola espiral do volante (clockspring)

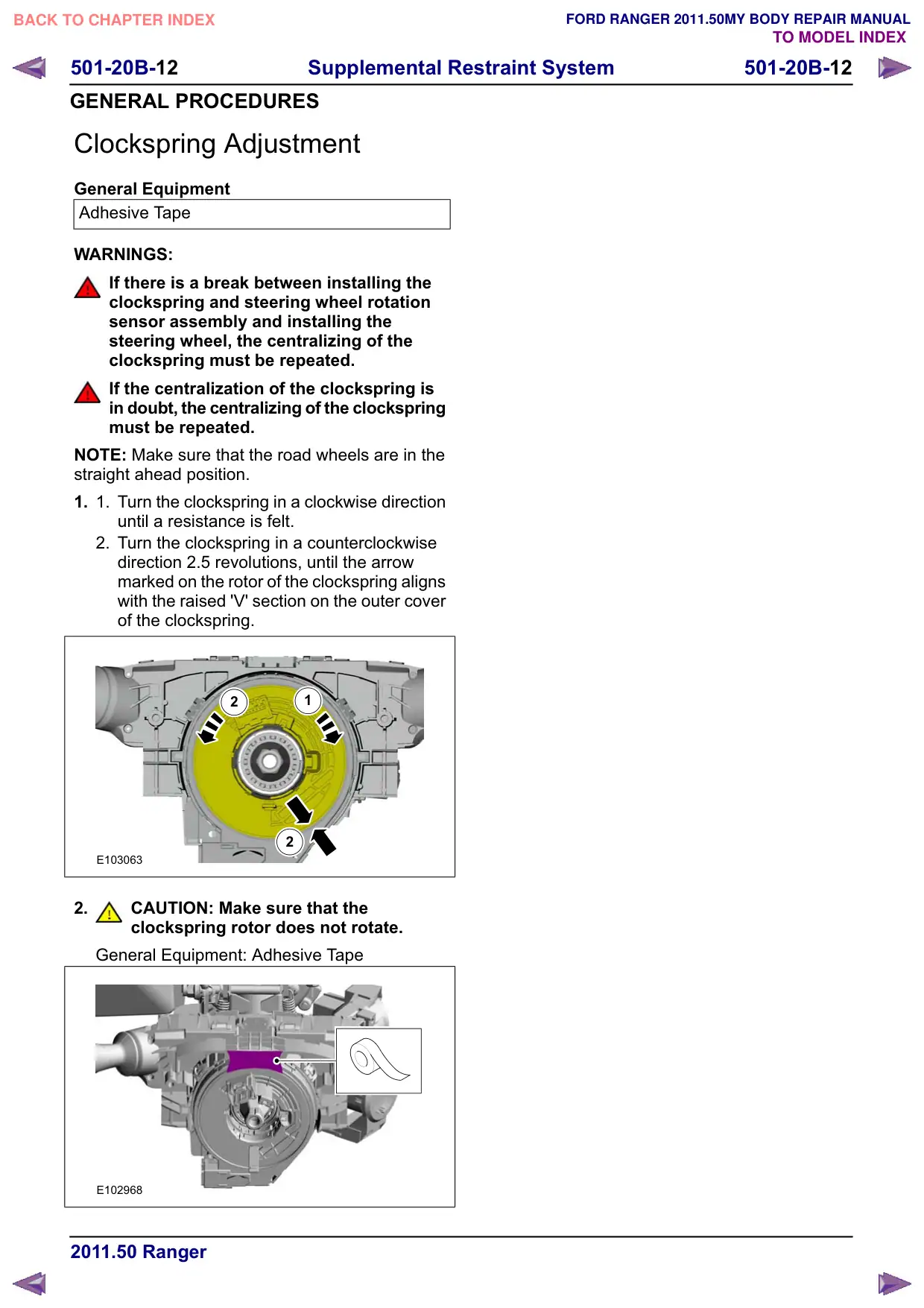

501-20B-12 Supplemental Restraint System 501-20B-12 GENERAL PROCEDURES Clockspring Adjustment General Equipment Adhesive Tape WARNINGS: If there is a break between installing the clockspring and steering wheel rotation sensor assembly and installing the steering wheel, the centralizing of the clockspring must be repeated. If the centralization of the clockspring is in doubt, the centralizing of the clockspring must be repeated. NOTE: Make sure that the road wheels are in the straight ahead position. 1. 1. Turn the clockspring in a clockwise direction until a resistance is felt. 2. Turn the clockspring in a counterclockwise direction 2.5 revolutions, until the arrow marked on the rotor of the clockspring aligns with the raised 'V' section on the outer cover of the clockspring. 2 1 2 E103063 2. CAUTION: Make sure that the clockspring rotor does not rotate. General Equipment: Adhesive Tape E102968
