Airbag e pré-tensionador do cinto de segurança - sistema de retenção suplementar

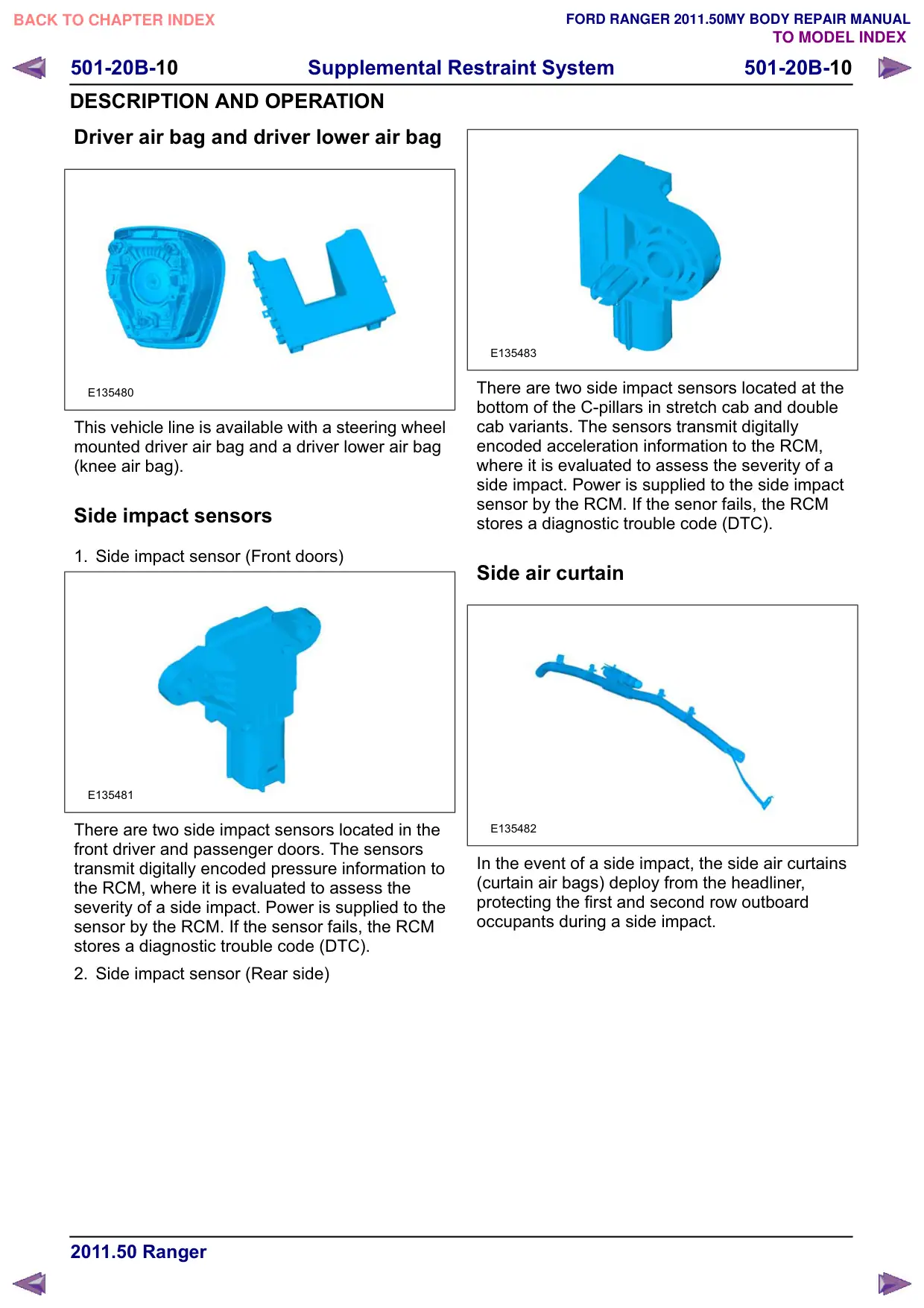

501-20B-10 Supplemental Restraint System 501-20B-10 DESCRIPTION AND OPERATION Driver air bag and driver lower air bag E135480 This vehicle line is available with a steering wheel mounted driver air bag and a driver lower air bag (knee air bag). Side impact sensors 1. Side impact sensor (Front doors) E135481 There are two side impact sensors located in the front driver and passenger doors. The sensors transmit digitally encoded pressure information to the RCM, where it is evaluated to assess the severity of a side impact. Power is supplied to the sensor by the RCM. If the sensor fails, the RCM stores a diagnostic trouble code (DTC). 2. Side impact sensor (Rear side) E135483 There are two side impact sensors located at the bottom of the C-pillars in stretch cab and double cab variants. The sensors transmit digitally encoded acceleration information to the RCM, where it is evaluated to assess the severity of a side impact. Power is supplied to the side impact sensor by the RCM. If the senor fails, the RCM stores a diagnostic trouble code (DTC). Side air curtain E135482 In the event of a side impact, the side air curtains (curtain air bags) deploy from the headliner, protecting the first and second row outboard occupants during a side impact.
