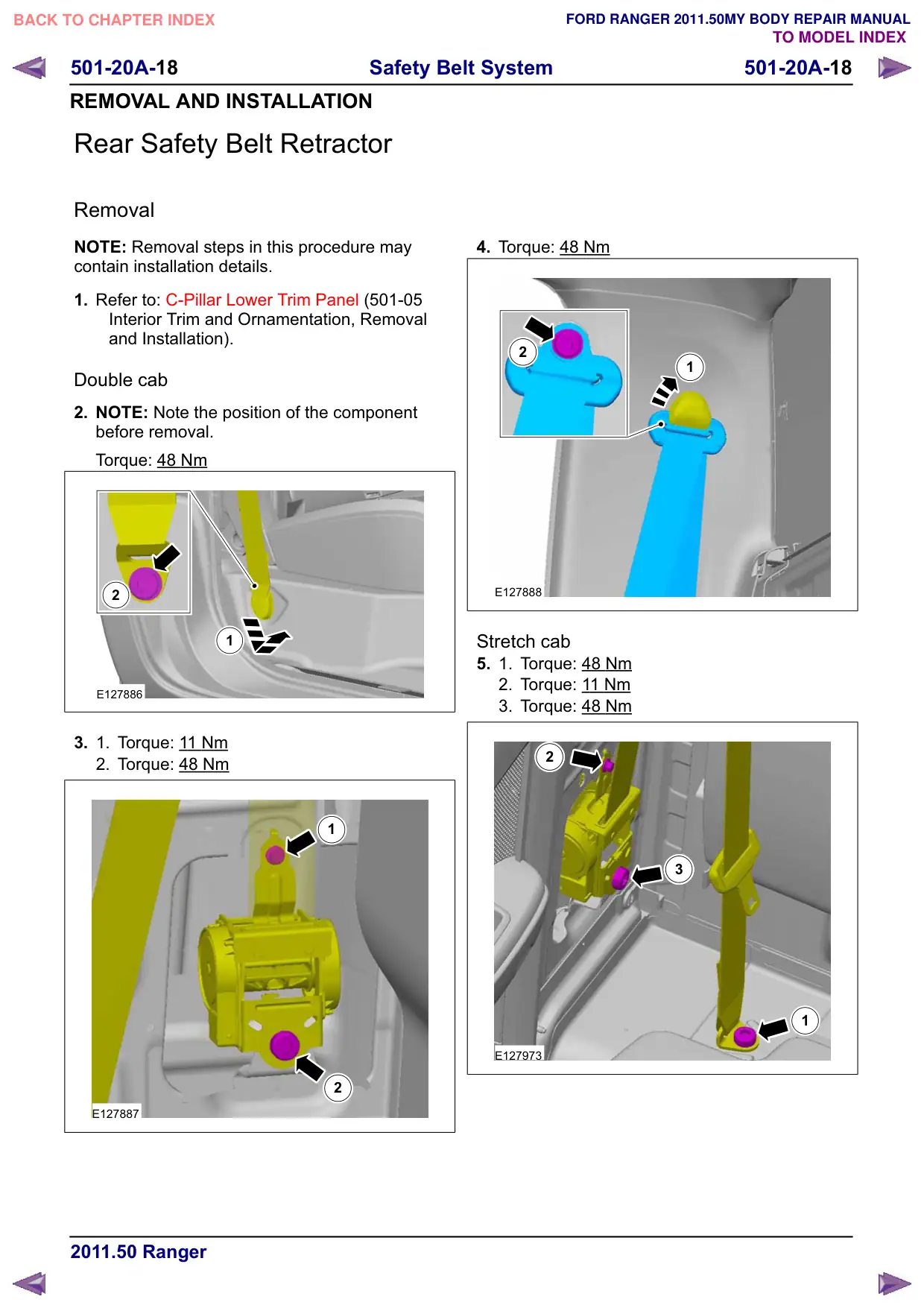

501-20A-18
Safety Belt System
501-20A-18
REMOVAL AND INSTALLATION
Rear Safety Belt Retractor
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: C-Pillar Lower Trim Panel (501-05
Interior Trim and Ornamentation, Removal
and Installation).
Double cab
2. NOTE: Note the position of the component
before removal.
Torque: 48 Nm
2
1
E127886
3.
1.
Torque: 11 Nm
2. Torque: 48 Nm
1
2
E127887
4. Torque: 48 Nm
2
1
E127888
Stretch cab
5.
1.
Torque: 48 Nm
2. Torque: 11 Nm
3. Torque: 48 Nm
2
3
1
E127973
