Motor do limpador do para-brisa

Windshield Wiper Motor

Carroceria · página 184 de 566 · 501-16-5

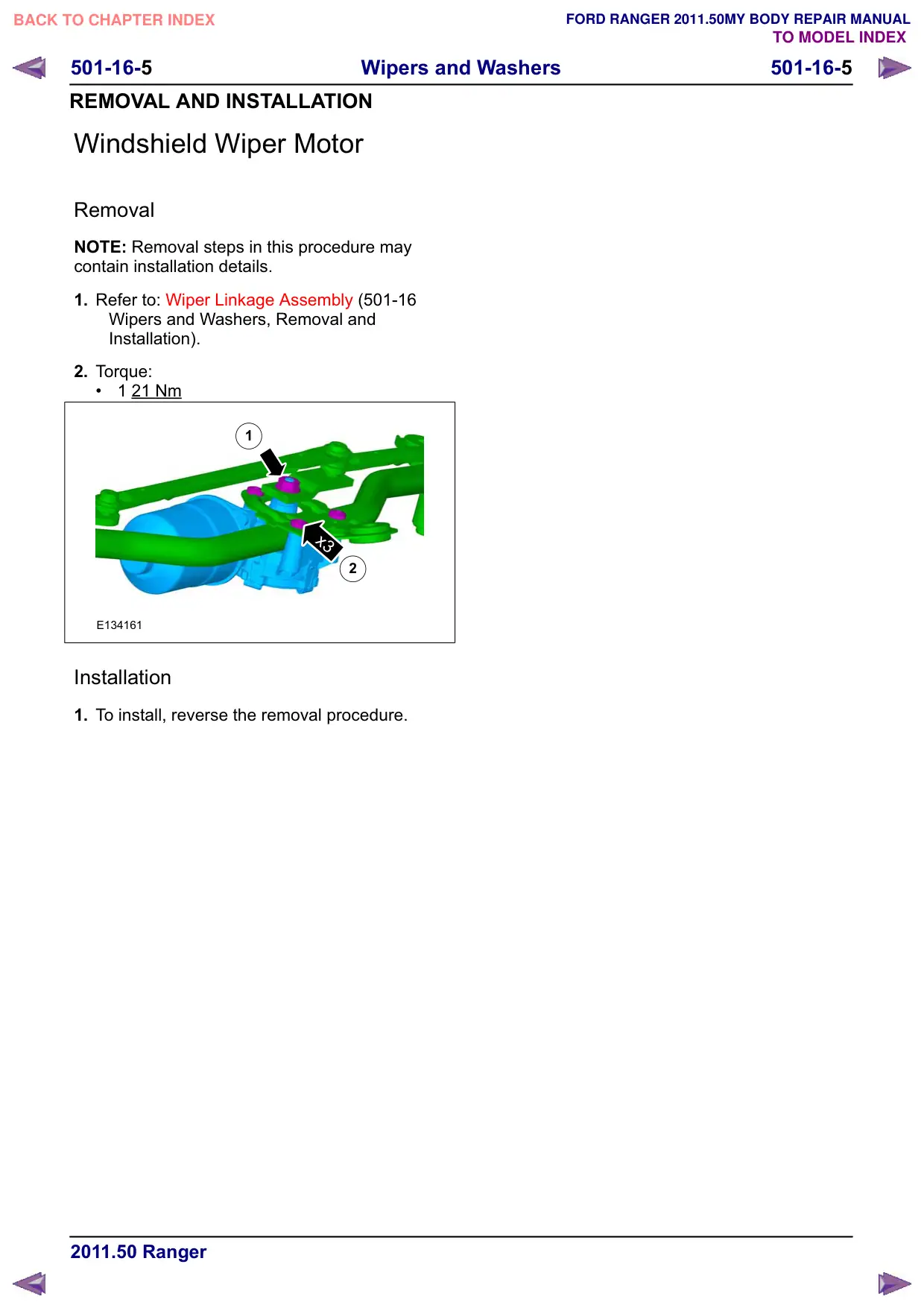

Página 184 do Manual de Carroceria: Motor do limpador do para-brisa

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/184
Imagem: https://ranger.mbrace.com.br/img/carroceria/184.webp

501-16-5 Wipers and Washers 501-16-5 REMOVAL AND INSTALLATION Windshield Wiper Motor Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Wiper Linkage Assembly (501-16 Wipers and Washers, Removal and Installation). 2. Torque: 1 21 Nm 1 x3 2 E134161 Installation 1. To install, reverse the removal procedure.
