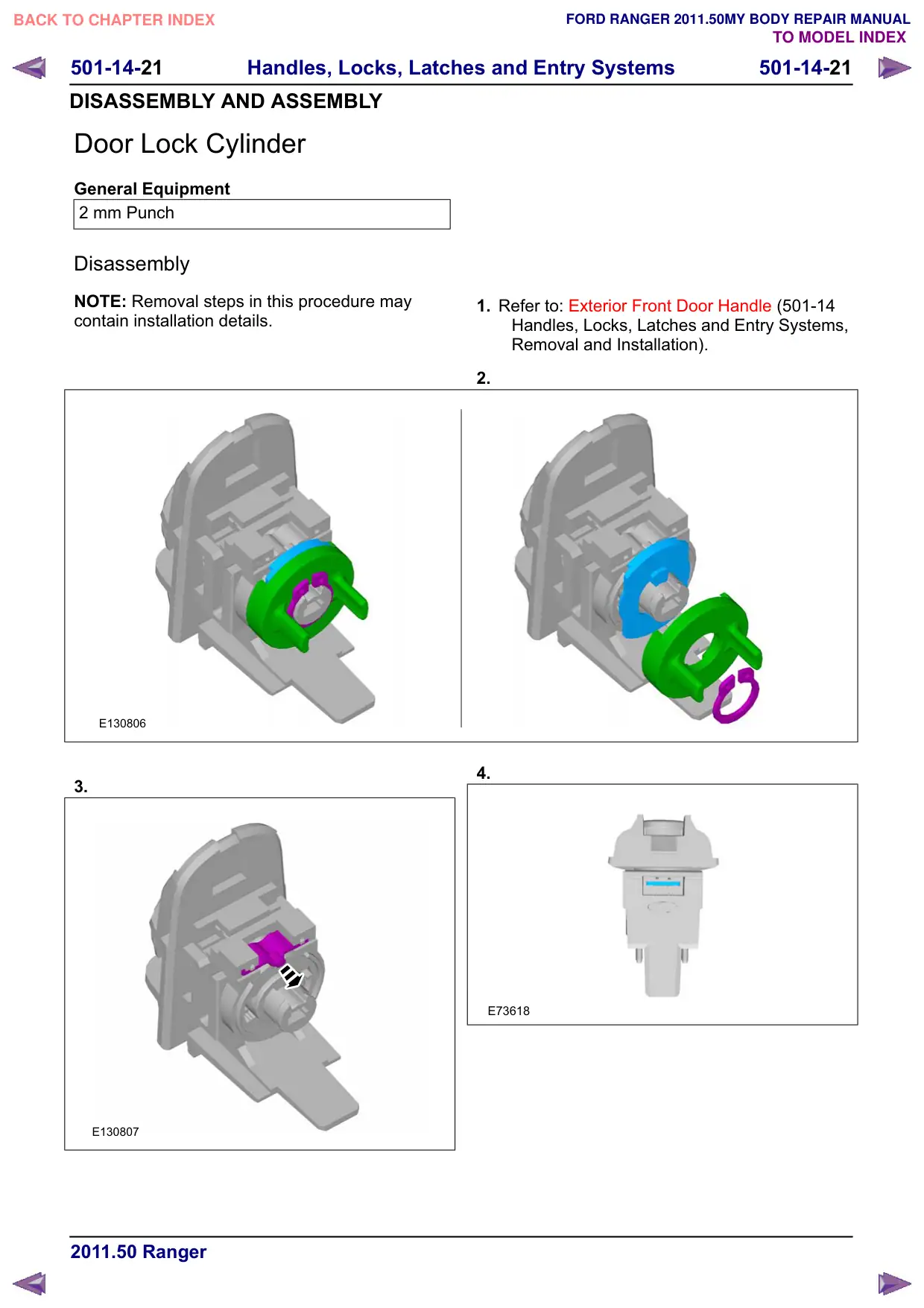

501-14-21
Handles, Locks, Latches and Entry Systems
501-14-21
DISASSEMBLY AND ASSEMBLY
Door Lock Cylinder
General Equipment
2 mm Punch
Disassembly
NOTE: Removal steps in this procedure may
contain installation details.
E130806
3.
E130807
1. Refer to: Exterior Front Door Handle (501-14
Handles, Locks, Latches and Entry Systems,
Removal and Installation).
2.
4.
E73618
