Fechadura da porta traseira – Cabine estendida

Rear Door Latch – Super Cab

Carroceria · página 168 de 566 · 501-14-13 · parte 1 de 2

Página 168 do Manual de Carroceria: Fechadura da porta traseira – Cabine estendida

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/168
Imagem: https://ranger.mbrace.com.br/img/carroceria/168.webp

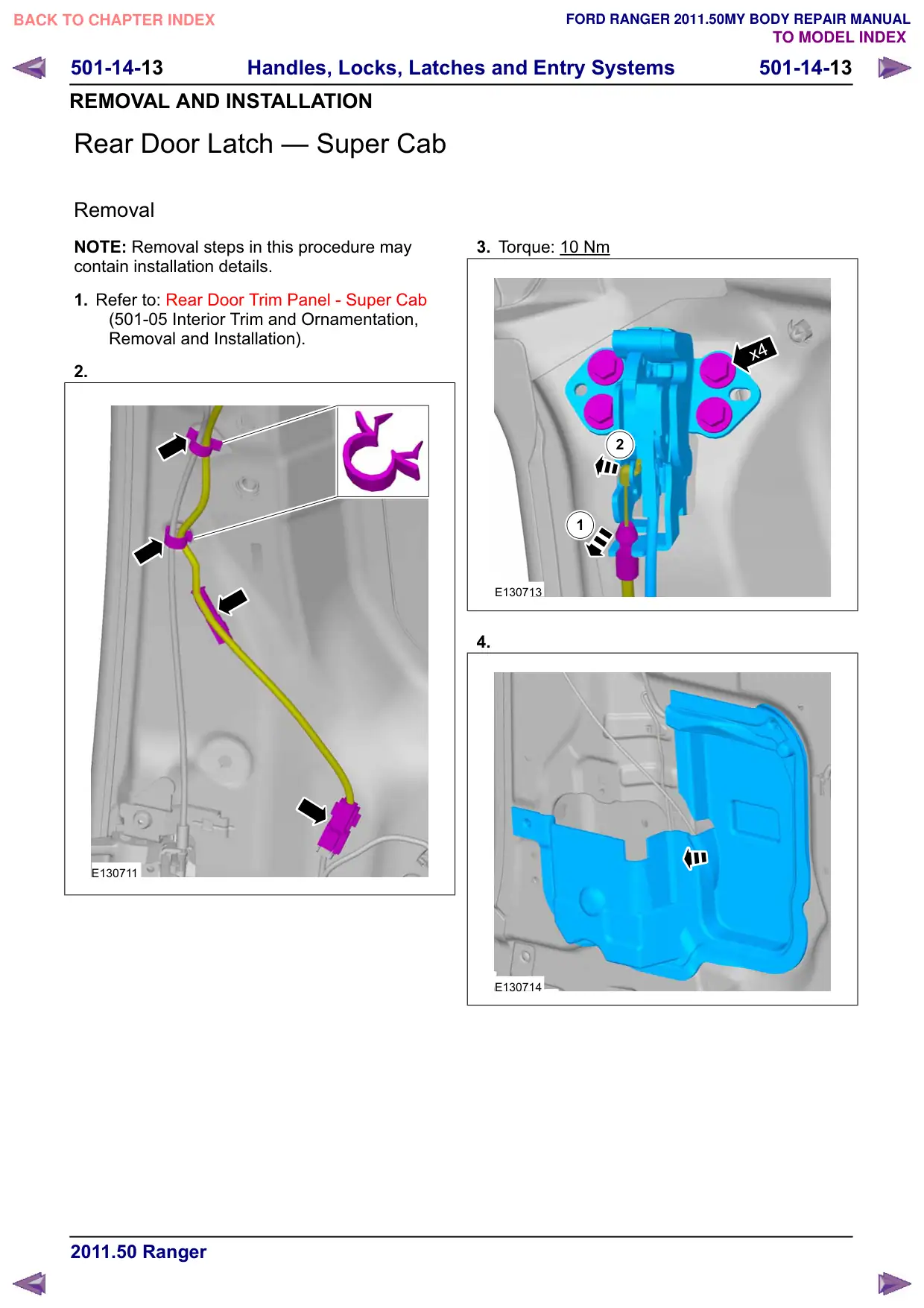

501-14-13 Handles, Locks, Latches and Entry Systems 501-14-13 REMOVAL AND INSTALLATION Rear Door Latch – Super Cab Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Rear Door Trim Panel - Super Cab (501-05 Interior Trim and Ornamentation, Removal and Installation). 2. E130711 3. Torque: 10 Nm x4 2 1 E130713 4. E130714
