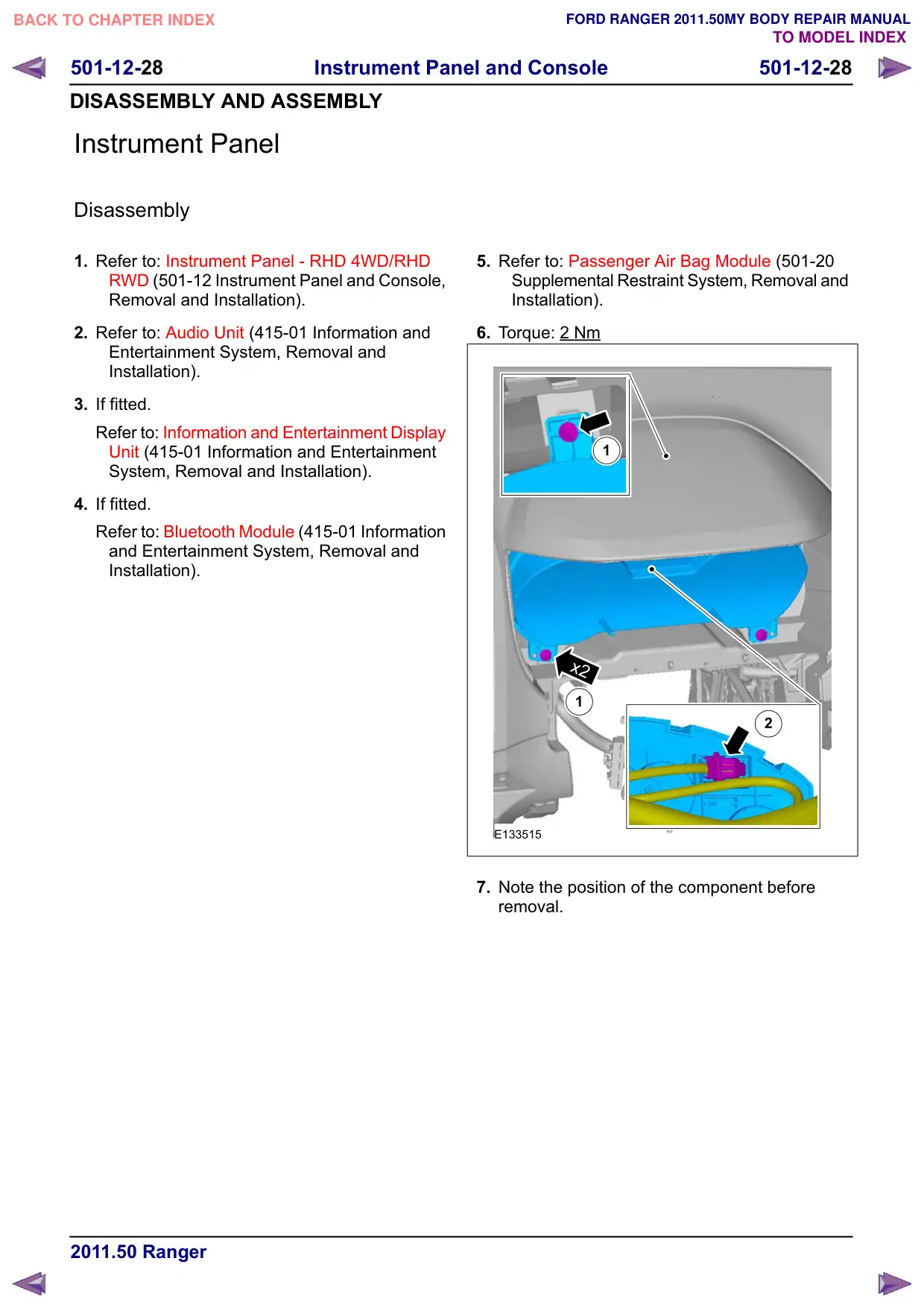

501-12-28 Instrument Panel and Console 501-12-28 DISASSEMBLY AND ASSEMBLY Instrument Panel Disassembly 1. Refer to: Instrument Panel - RHD 4WD/RHD 5:' (501-12 Instrument Panel and Console, Removal and Installation). 2. Refer to: Audio Unit (415-01 Information and Entertainment System, Removal and Installation). 3. If fitted. Refer to: Information and Entertainment Display Unit (415-01 Information and Entertainment System, Removal and Installation). 4. If fitted. Refer to: Bluetooth Module (415-01 Information and Entertainment System, Removal and Installation). 5. Refer to: Passenger Air Bag Module (501-20 Supplemental Restraint System, Removal and Installation). 6. Torque: 2 Nm 1 x2 1 2 E133515 7. Note the position of the component before removal.
