Travessa interna do veículo

In-Vehicle Crossbeam

Carroceria · página 148 de 566 · 501-12-24

Página 148 do Manual de Carroceria: Travessa interna do veículo

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/148
Imagem: https://ranger.mbrace.com.br/img/carroceria/148.webp

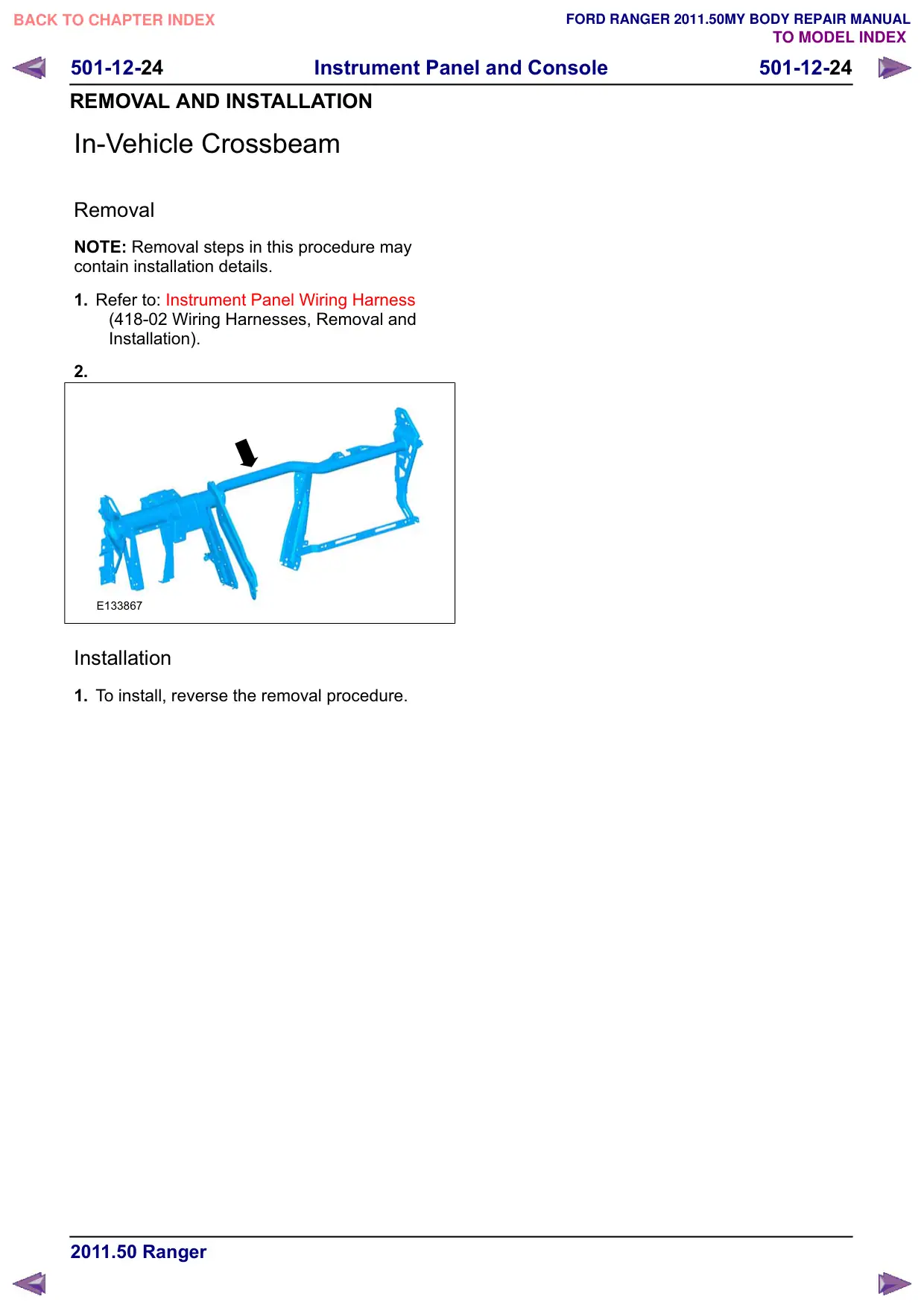

501-12-24 Instrument Panel and Console 501-12-24 REMOVAL AND INSTALLATION In-Vehicle Crossbeam Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Instrument Panel Wiring Harness (418-02 Wiring Harnesses, Removal and Installation). 2. E133867 Installation 1. To install, reverse the removal procedure.
