Instrument Panel and Console
501-12-21
501-12-21
REMOVAL AND INSTALLATION

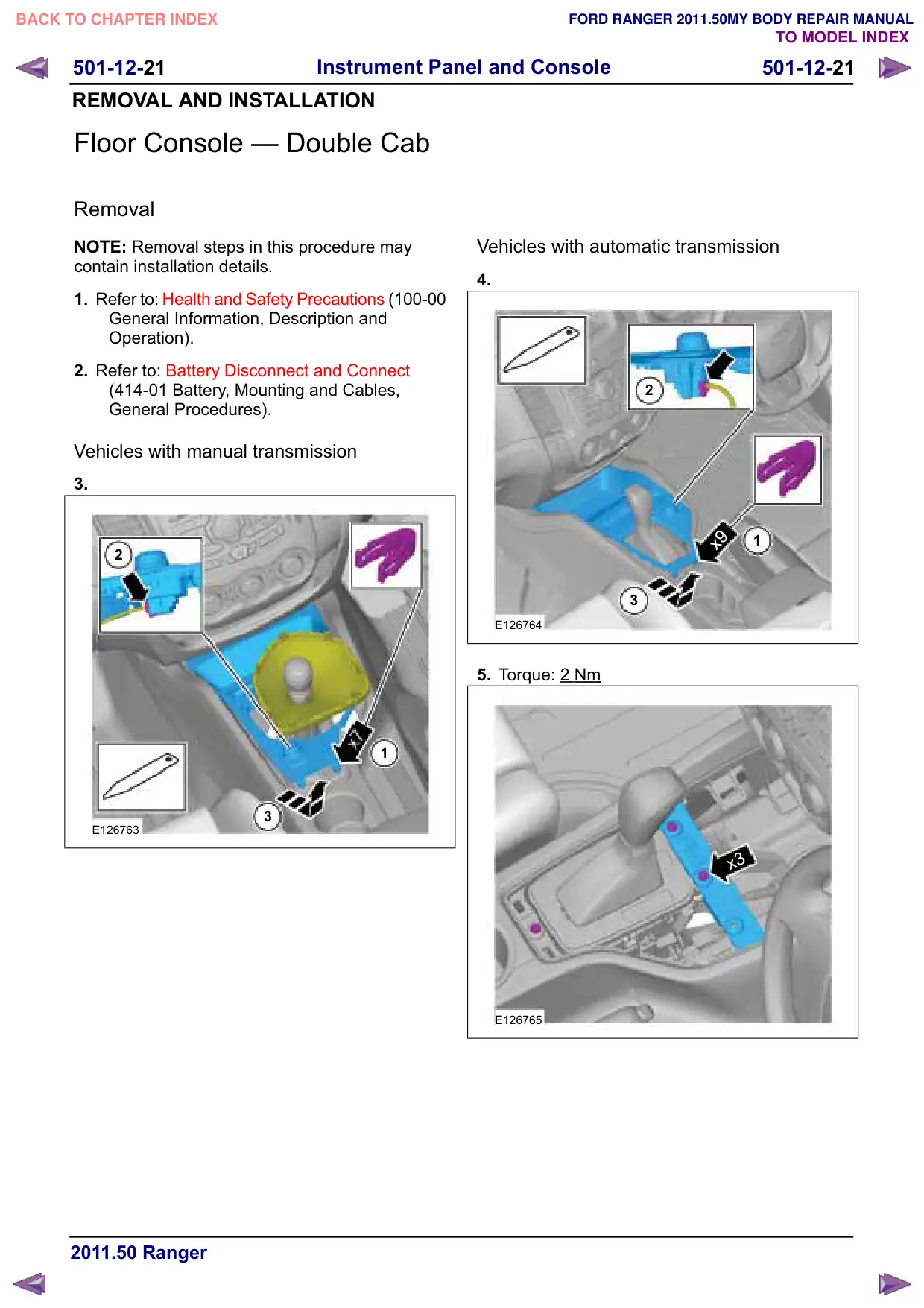

Floor Console – Double Cab
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
Vehicles with manual transmission
3.
2
1
3
E126763
Vehicles with automatic transmission
4.
2
x9
1
3
E126764
5. Torque: 2
Nm
x3
E126765
