Painel – RHD 4WD/RHD RWD

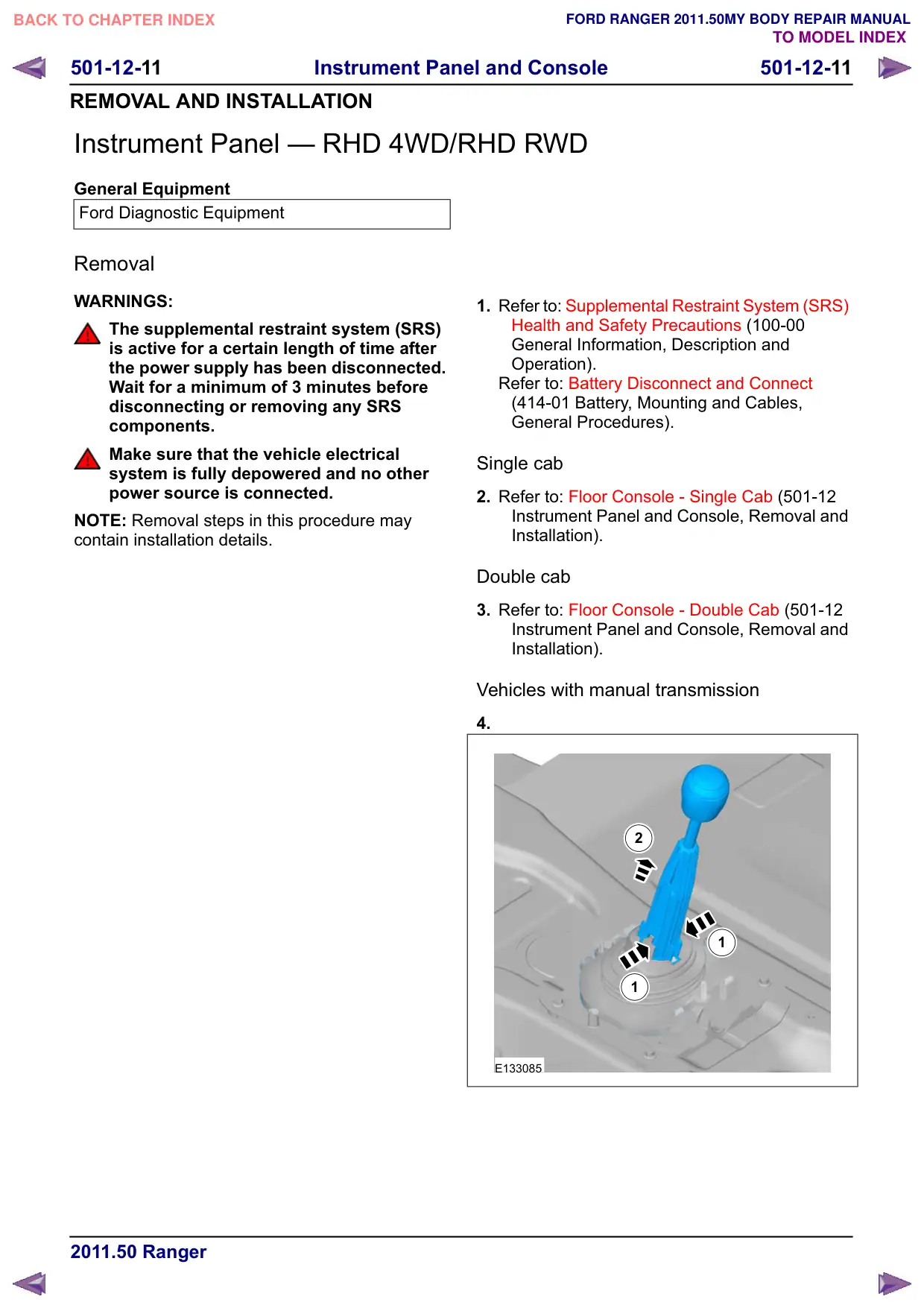

501-12-11 Instrument Panel and Console 501-12-11 REMOVAL AND INSTALLATION Instrument Panel – RHD 4WD/RHD RWD General Equipment Ford Diagnostic Equipment Removal WARNINGS: The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components. Make sure that the vehicle electrical system is fully depowered and no other power source is connected. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions (100-00 General Information, Description and Operation). Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). Single cab 2. Refer to: Floor Console - Single Cab (501-12 Instrument Panel and Console, Removal and Installation). Double cab 3. Refer to: Floor Console - Double Cab (501-12 Instrument Panel and Console, Removal and Installation). Vehicles with manual transmission 4. 2 1 1 E133085
