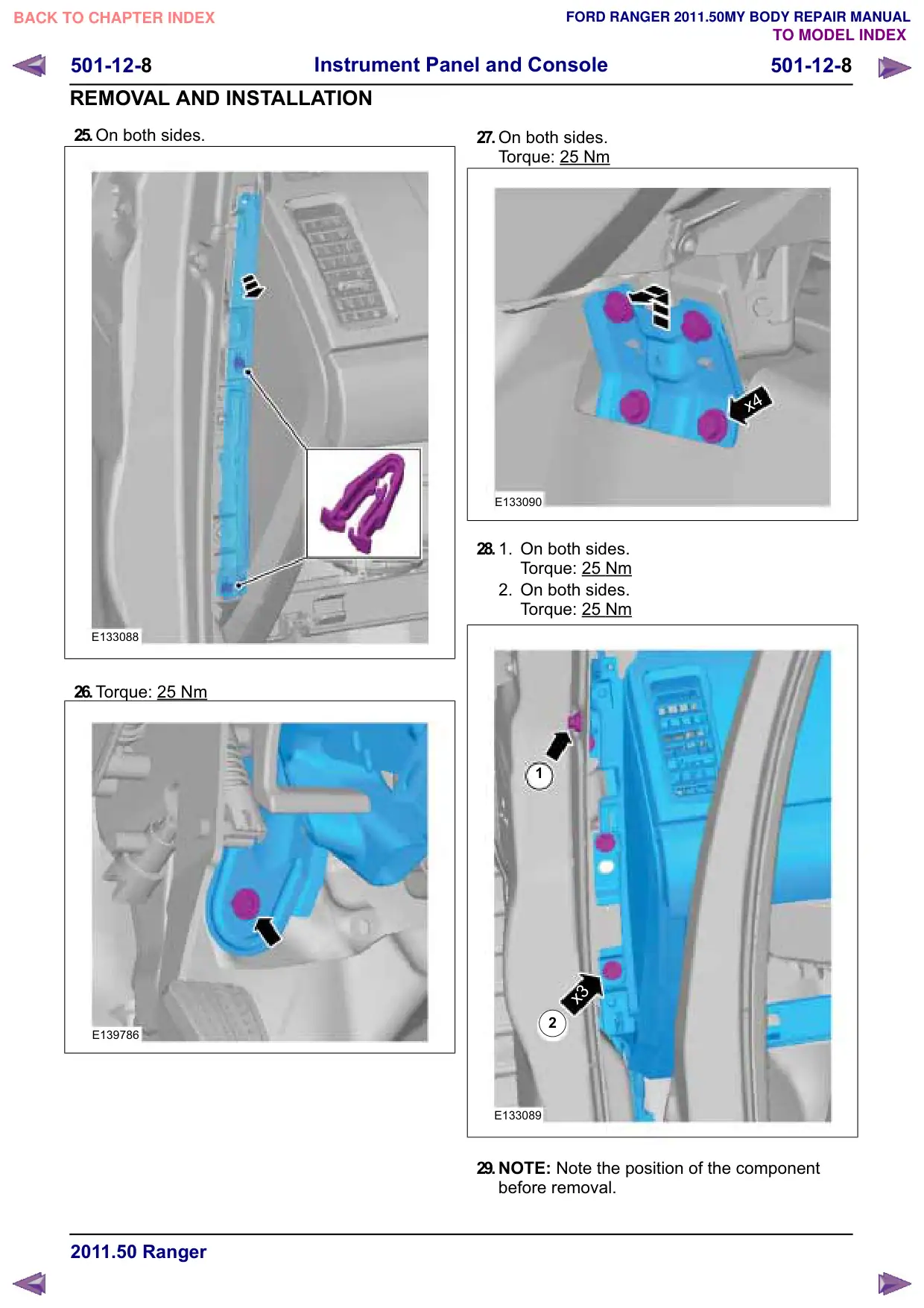

501-12-8
Instrument Panel and Console
501-12-8
REMOVAL AND INSTALLATION
25.On both sides.
E133088
26.Torque: 25 Nm
E139786
27.On both sides.
Torque: 25 Nm
x4
E133090
28.
1.
On both sides.
Torque: 25 Nm
2. On both sides.
Torque: 25 Nm
1
x3
2
E133089
29.NOTE: Note the position of the component
before removal.
