501-12-2
Instrument Panel and Console
501-12-2

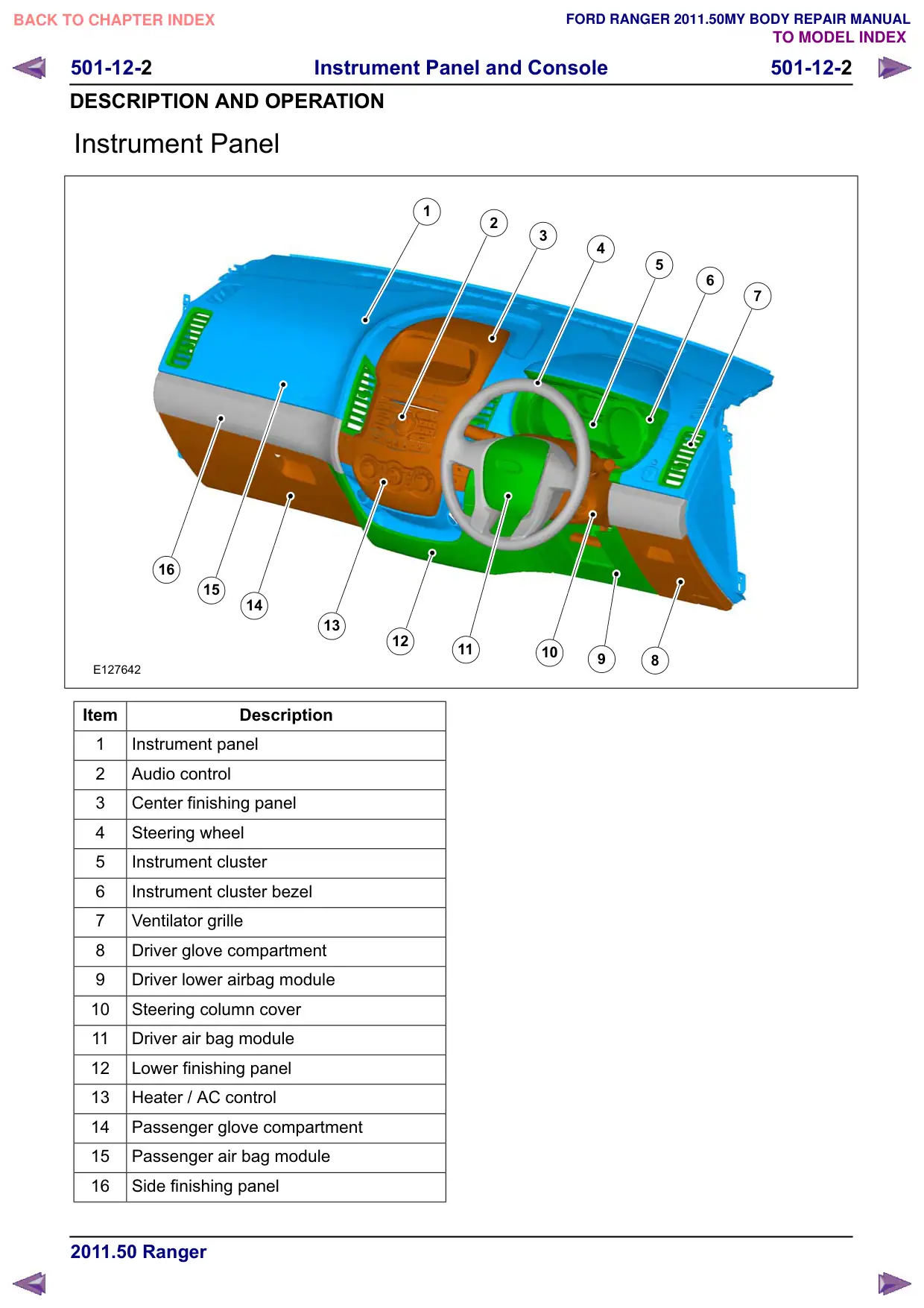

DESCRIPTION AND OPERATION
Instrument Panel
1
16
15
14
13
12
E127642
Item
Description
1
Instrument panel
2
Audio control
3
Center finishing panel
4
Steering wheel
5
Instrument cluster
6
Instrument cluster bezel
7
Ventilator grille
8
Driver glove compartment
Driver lower airbag module
10
Steering column cover
11
Driver air bag module
12
Lower finishing panel
13
Heater / AC control
14
Passenger glove compartment
15
Passenger air bag module
16
Side finishing panel
2
3
4
5
6
7
11
10
8
