Vidro traseiro

Rear Window Glass

Carroceria · página 123 de 566 · 501-11-24 · parte 3 de 4

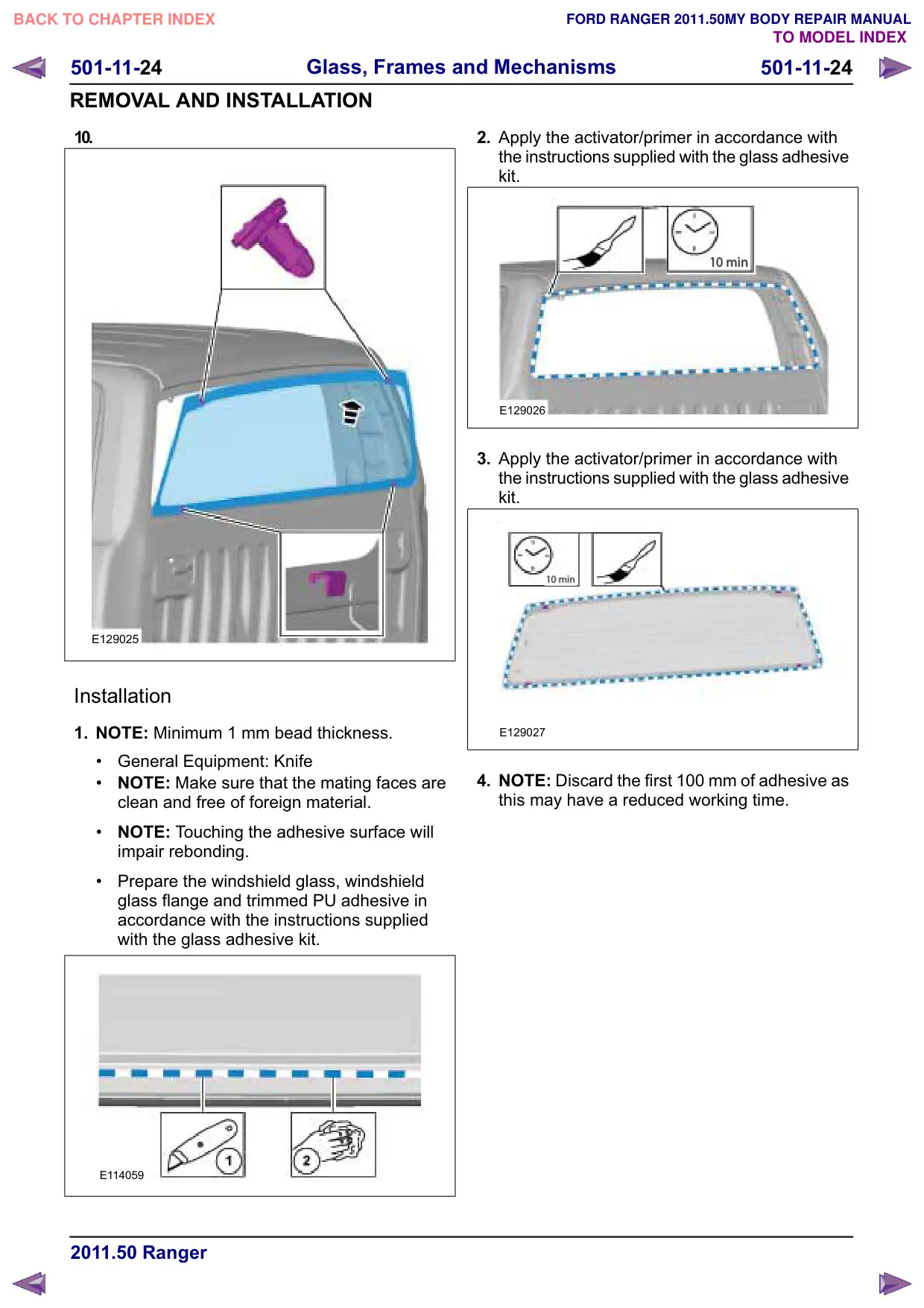

Página 123 do Manual de Carroceria: Vidro traseiro
Explicar no Gemini Ampliar imagem Traduzir texto
Texto da página
501-11-24 Glass, Frames and Mechanisms 501-11-24 REMOVAL AND INSTALLATION 10. E129025 Installation 1. NOTE: Minimum 1 mm bead thickness. ‡ General Equipment: Knife ‡ NOTE: Make sure that the mating faces are clean and free of foreign material. ‡ NOTE: Touching the adhesive surface will impair rebonding. ‡ Prepare the windshield glass, windshield glass flange and trimmed PU adhesive in accordance with the instructions supplied with the glass adhesive kit. E114059 2. Apply the activator/primer in accordance with the instructions supplied with the glass adhesive kit. E129026 3. Apply the activator/primer in accordance with the instructions supplied with the glass adhesive kit. E129027 4. NOTE: Discard the first 100 mm of adhesive as this may have a reduced working time.
