Steering Column Switches 211-05-1 211-05-1 . SECTION 211-05 Steering Column Switches VEHICLE APPLICATION: 2011.50 Ranger CONTENTS REMOVAL AND INSTALLATION Ignition Switch................................................................................................ Steering Column Multifunction Switch............................................................ Steering Column Multifunction Switch LH.......................................................................... Steering Column Multifunction Switch RH.......................................................................... Steering Column Lock and Ignition Switch Housing........................................................... PAGE (33 616 0) 211-05-2 (33 612 0) 211-05-4 211-05-5 211-05-7 211-05-9

Steering Column Switches 211-05-2 211-05-2 REMOVAL AND INSTALLATION Ignition Switch(33 616 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. x2 E126842 3. E127542 4. E128174 5. E128175

Steering Column Switches 211-05-3 211-05-3 REMOVAL AND INSTALLATION 6. E127543 7. 1 2 E127548 8. 1 2 1 E127549 Installation 1. To install, reverse the removal procedure.

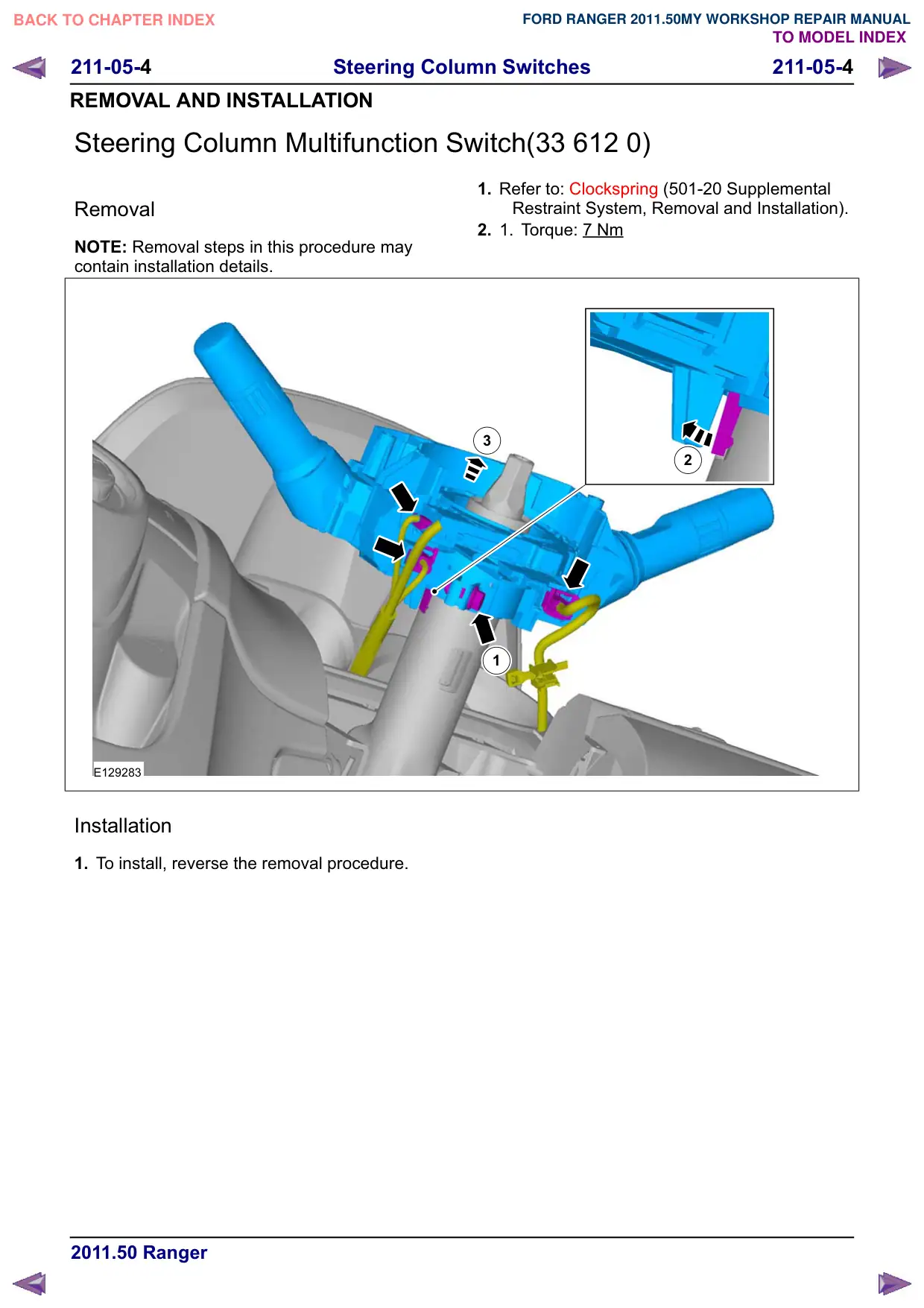

Steering Column Switches 211-05-4 211-05-4 REMOVAL AND INSTALLATION Steering Column Multifunction Switch(33 612 0) Removal NOTE: Removal steps in this procedure may contain installation details. E129283 Installation 1. To install, reverse the removal procedure. 1. Refer to: Clockspring (501-20 Supplemental Restraint System, Removal and Installation). 2. 1. Torque: 7 Nm 3 2 1

Steering Column Switches 211-05-5 211-05-5 REMOVAL AND INSTALLATION Steering Column Multifunction Switch LH Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. x2 E126842 3. E127542 4. Torque: 1.5 Nm E128174 5. Torque: 1.5 Nm E128175

Steering Column Switches 211-05-6 211-05-6 REMOVAL AND INSTALLATION 6. Torque: 2.5 Nm E127543 7. E134141 8. 1 2 E134140 Installation 1. To install, reverse the removal procedure.

Steering Column Switches 211-05-7 211-05-7 REMOVAL AND INSTALLATION Steering Column Multifunction Switch RH Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. E126842 3. E127542 4. Torque: 1.5 Nm E128174 5. Torque: 1.5 Nm E128175

Steering Column Switches 211-05-8 211-05-8 REMOVAL AND INSTALLATION 6. Torque: 2.5 Nm E127543 7. E134138 8. 1 2 E134139 Installation 1. To install, reverse the removal procedure.

211-05- Steering Column Switches 211-05- REMOVAL AND INSTALLATION Steering Column Lock and Ignition Switch Housing General Equipment Punch Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). Refer to: Steering System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Ignition Switch (211-05 Steering Column Switches, Removal and Installation). 3. 1 2 2 3 E127835 4. NOTE: This step is only necessary when installing a new component. Torque: 30 Nm 2 1 3 E127836 5. Turn the ignition key to position I. General Equipment: Punch 1 3 2 E130848 Installation 1. To install, reverse the removal procedure.
