Front Drive Axle/Differential 205-03-1 205-03-1 . SECTION 205-03 Front Drive Axle/Differential VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Front Drive Axle and Differential......................................................................................... 4x4 Hi-rider......................................................................................................................... GENERAL PROCEDURES Differential Draining and Filling........................................................................................... REMOVAL AND INSTALLATION Axle Assembly.................................................................................................................... PAGE 205-03-2 205-03-2 205-03-3 205-03-5

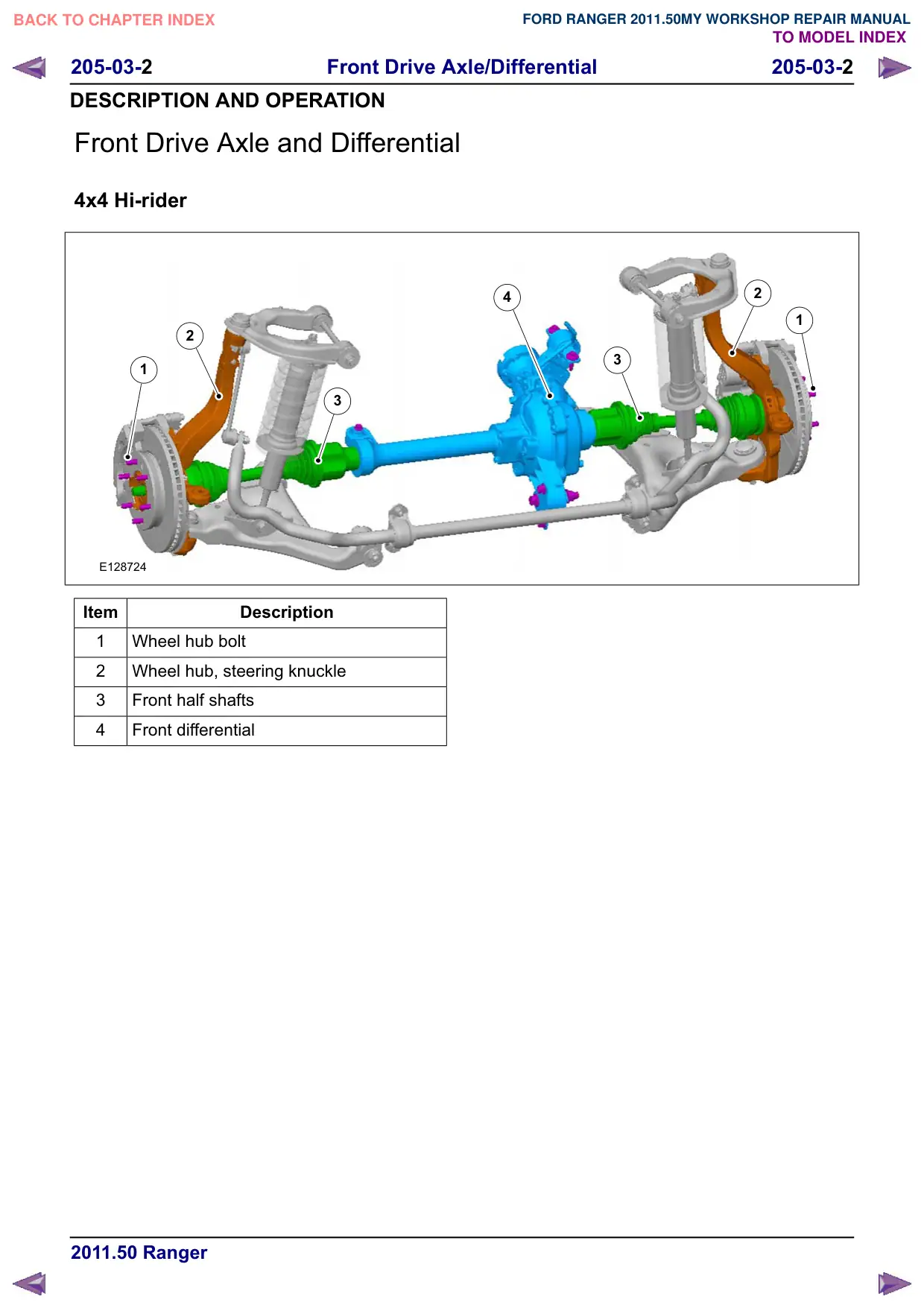

Front Drive Axle/Differential 205-03-2 205-03-2 DESCRIPTION AND OPERATION Front Drive Axle and Differential 4x4 Hi-rider 2 1 3 E128724 Item Description 1 Wheel hub bolt 2 Wheel hub, steering knuckle 3 Front half shafts 4 Front differential 4 2 1 3

Front Drive Axle/Differential 205-03-3 205-03-3 GENERAL PROCEDURES Differential Draining and Filling 1. For additional information, refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 2. ‡ Tightening torque 30 Nm. 1 x4 2 E128859 3. Position the vehicle on level ground. 4. Remove the oil-fill plug. E128860 5. Remove the drain plug and drain the oil. E128861 6. Install a new drain plug and tighten. ‡ Tightening torque 30 Nm. E128876 7. Add the specified oil through the oil-fill plug hole. ‡ Front differential oil spec: WSP-M2C197-A and fill to 1.275L +/-0.10L. 8. After adding the oil, perform the oil level inspection. 9. Install a new oil-fill plug and tighten.

Front Drive Axle/Differential 205-03-4 205-03-4 GENERAL PROCEDURES ‡ Tightening torque 30 Nm. E128875

Front Drive Axle/Differential 205-03-5 205-03-5 REMOVAL AND INSTALLATION Axle Assembly General Equipment Transmission Jack Removal NOTE: Removal steps in this procedure may contain installation details. E128831 6. WARNING: Make sure that a new bolt and nut is installed. 1. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 2. Refer to: Differential Draining and Filling (205-03 Front Drive Axle/Differential, General Procedures). 3. Refer to: Front Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). 4. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation). Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation). 5. Torque: 90 Nm 1 x4 2 NOTE: Position a suitable transmission jack under the front axle. Securely strap the jack to the axle. ‡ General Equipment: Transmission Jack 1. Torque: 70 Nm 2. Torque: 300 Nm 3. Torque: 125 Nm

205-03-6 Front Drive Axle/Differential 205-03-6 REMOVAL AND INSTALLATION 2 E128832 7. WARNING: Make sure that a new bolt and nut is installed. Torque: 48 Nm x2 E128833 1 4 3 x2 8. NOTE: Lower the axle to gain access to the axle vent hose. 2 1 E128834 Installation 1. To install, reverse the removal procedure.
