Comandos da embreagem
Clutch Controls
Texto da página
Link desta página: https://ranger.mbrace.com.br/oficina/953
Imagem: https://ranger.mbrace.com.br/img/oficina/953.webp

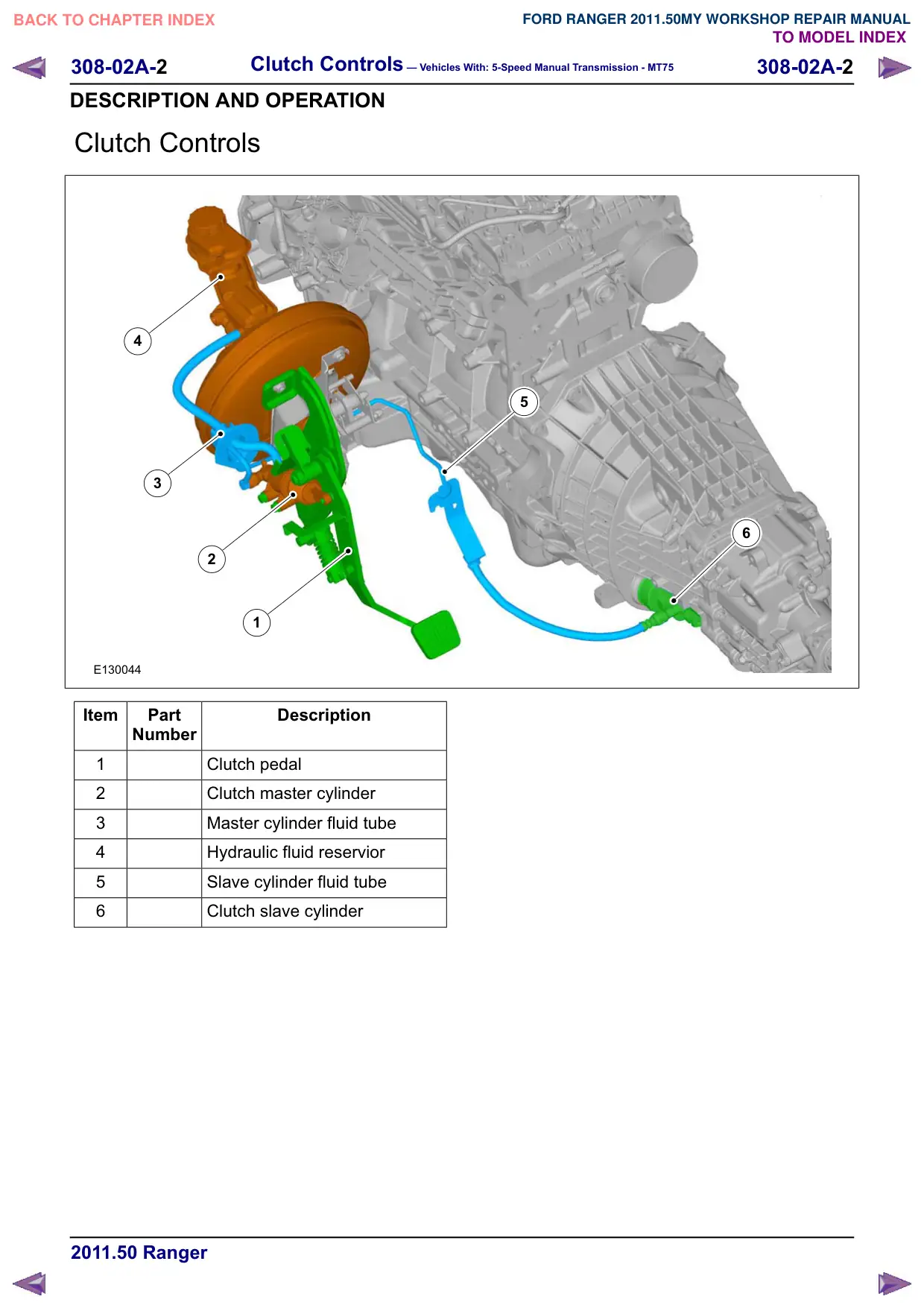

Clutch Controls – Vehicles With: 5-Speed Manual Transmission - MT75
308-02A-2
308-02A-2
DESCRIPTION AND OPERATION
Clutch Controls
4
3
2
1
E130044
Item
Part
Description
Number
1
Clutch pedal
2
Clutch master cylinder
3
Master cylinder fluid tube
4
Hydraulic fluid reservior
5
Slave cylinder fluid tube
6
Clutch slave cylinder
5
6
