Glow Plug System – 3.2L Duratorq-TDCi (148kW/200PS) - Puma
303-07C-5
303-07C-5
REMOVAL AND INSTALLATION

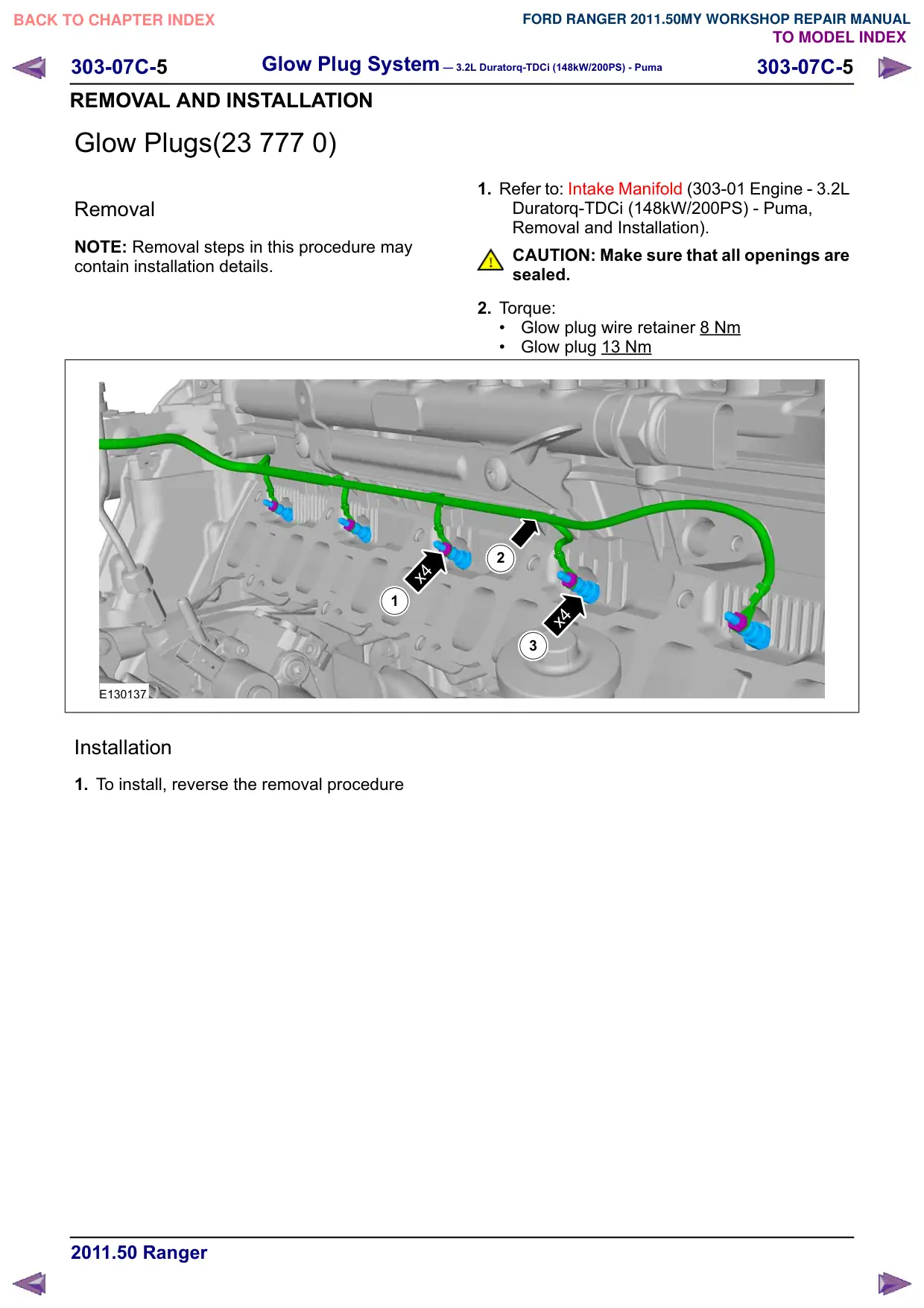

Glow Plugs(23 777 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
x4
1
E130137
Installation
1. To install, reverse the removal procedure
1. Refer to: Intake Manifold (303-01 Engine - 3.2L
Duratorq-TDCi (148kW/200PS) - Puma,
Removal and Installation).
CAUTION: Make sure that all openings are
sealed.
2. Torque:
Glow plug wire retainer 8 Nm
Glow plug 13 Nm
2
x4
3
