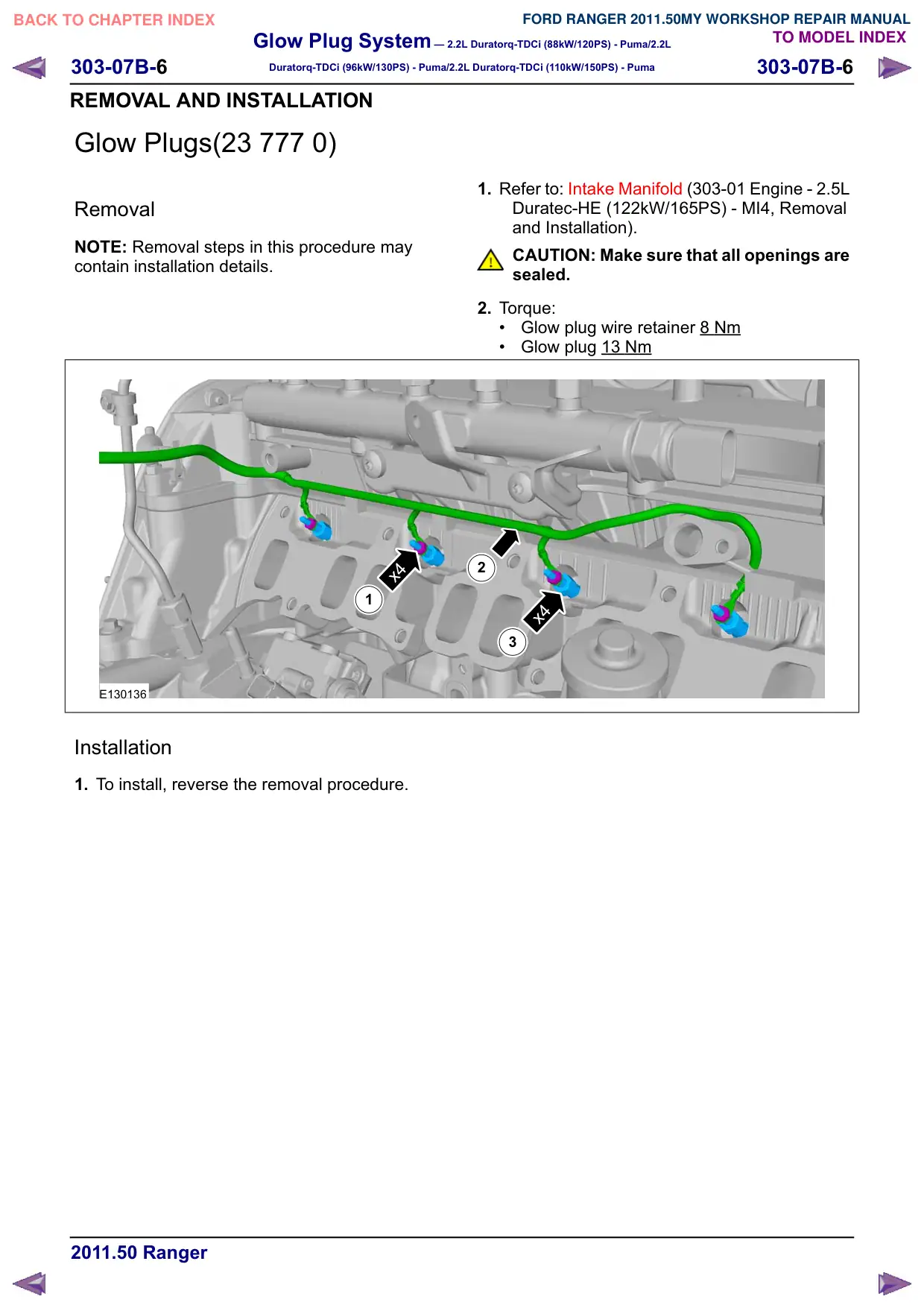

Glow Plug System – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L
303-07B-6
303-07B-6
Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma
REMOVAL AND INSTALLATION
Glow Plugs(23 777 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
x4
1
E130136
Installation
1. To install, reverse the removal procedure.
1. Refer to: Intake Manifold (303-01 Engine - 2.5L
Duratec-HE (122kW/165PS) - MI4, Removal
and Installation).
CAUTION: Make sure that all openings are
sealed.
2. Torque:
Glow plug wire retainer 8 Nm
Glow plug 13 Nm
2
x4
3
