Motor de partida

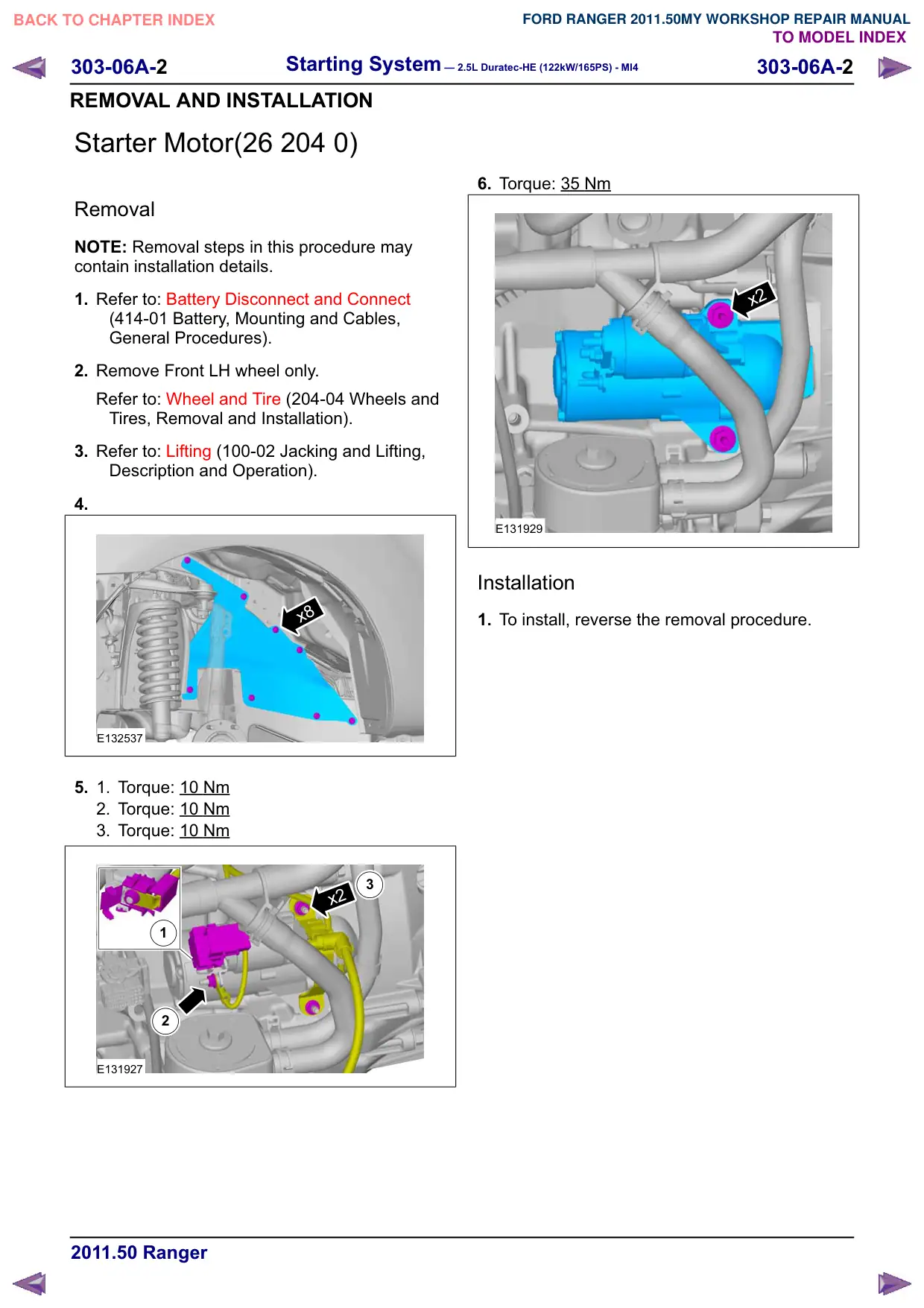

Starting System – 2.5L Duratec-HE (122kW/165PS) - MI4 303-06A-2 303-06A-2 REMOVAL AND INSTALLATION Starter Motor(26 204 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Remove Front LH wheel only. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 3. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 4. x8 E132537 5. 1. Torque: 10 Nm 2. Torque: 10 Nm 3. Torque: 10 Nm 3 x2 1 2 E131927 6. Torque: 35 Nm x2 E131929 Installation 1. To install, reverse the removal procedure.
