Bicos injetores

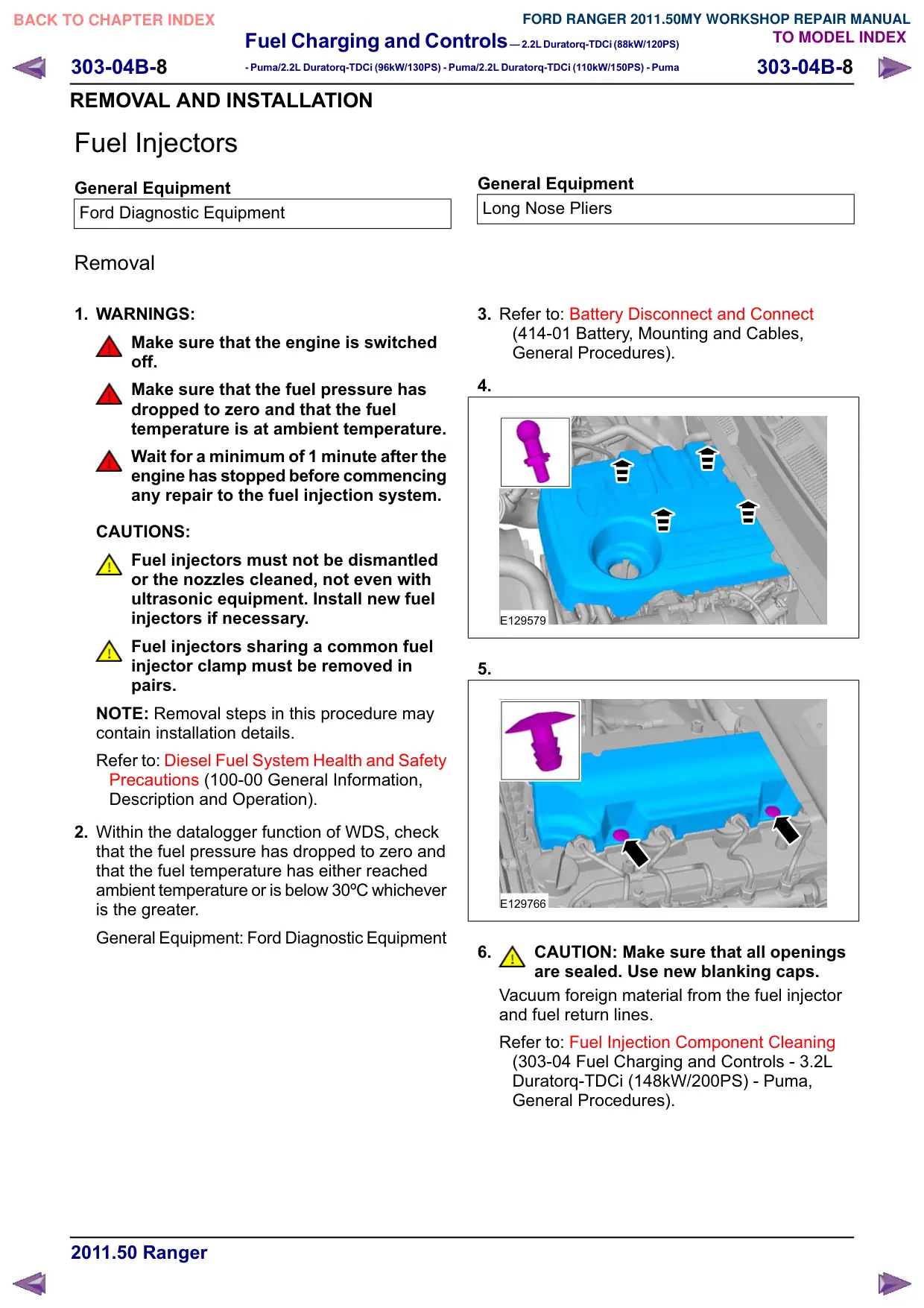

Fuel Charging and Controls – 2.2L Duratorq-TDCi (88kW/120PS) 303-04B-8 303-04B-8 - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma REMOVAL AND INSTALLATION Fuel Injectors General Equipment Ford Diagnostic Equipment Removal 1. WARNINGS: Make sure that the engine is switched off. Make sure that the fuel pressure has dropped to zero and that the fuel temperature is at ambient temperature. Wait for a minimum of 1 minute after the engine has stopped before commencing any repair to the fuel injection system. CAUTIONS: Fuel injectors must not be dismantled or the nozzles cleaned, not even with ultrasonic equipment. Install new fuel injectors if necessary. Fuel injectors sharing a common fuel injector clamp must be removed in pairs. NOTE: Removal steps in this procedure may contain installation details. Refer to: Diesel Fuel System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Within the datalogger function of WDS, check that the fuel pressure has dropped to zero and that the fuel temperature has either reached ambient temperature or is below 30ºC whichever is the greater. General Equipment: Ford Diagnostic Equipment General Equipment Long Nose Pliers 3. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 4. E129579 5. E129766 6. CAUTION: Make sure that all openings are sealed. Use new blanking caps. Vacuum foreign material from the fuel injector and fuel return lines. Refer to: Fuel Injection Component Cleaning (303-04 Fuel Charging and Controls - 3.2L Duratorq-TDCi (148kW/200PS) - Puma, General Procedures).
