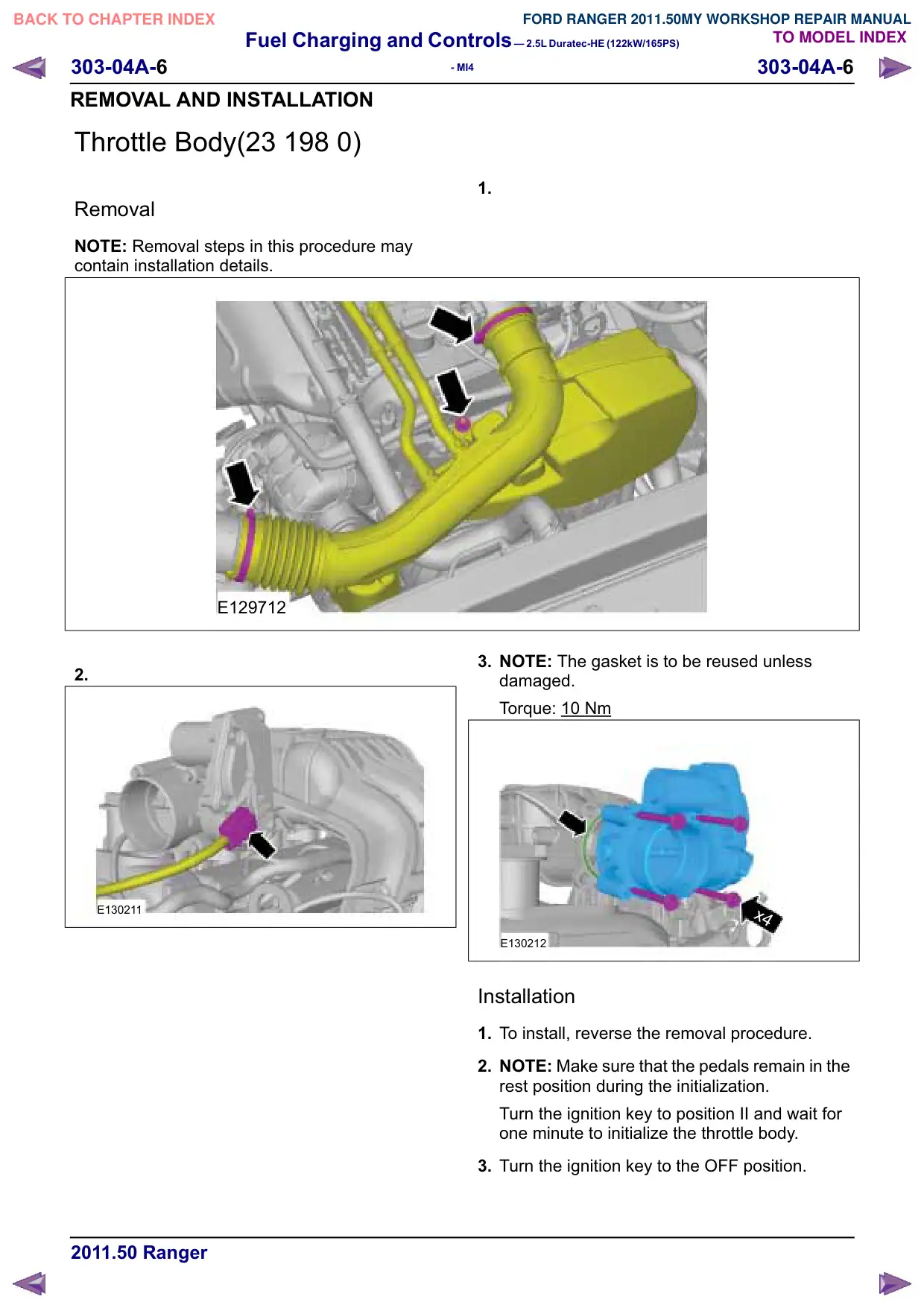

Fuel Charging and Controls – 2.5L Duratec-HE (122kW/165PS) 303-04A-6 303-04A-6 - MI4 REMOVAL AND INSTALLATION Throttle Body(23 198 0) Removal NOTE: Removal steps in this procedure may contain installation details. E129712 2. E130211 1. 3. NOTE: The gasket is to be reused unless damaged. Torque: 10 Nm x4 E130212 Installation 1. To install, reverse the removal procedure. 2. NOTE: Make sure that the pedals remain in the rest position during the initialization. Turn the ignition key to position II and wait for one minute to initialize the throttle body. 3. Turn the ignition key to the OFF position.
