Motor – Veículos com: transmissão automática de 6 marchas -
Engine – Vehicles With: 6-Speed Automatic Transaxle -
Texto da página
Link desta página: https://ranger.mbrace.com.br/oficina/530
Imagem: https://ranger.mbrace.com.br/img/oficina/530.webp
Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS)
303-01B-128
303-01B-128
- Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma

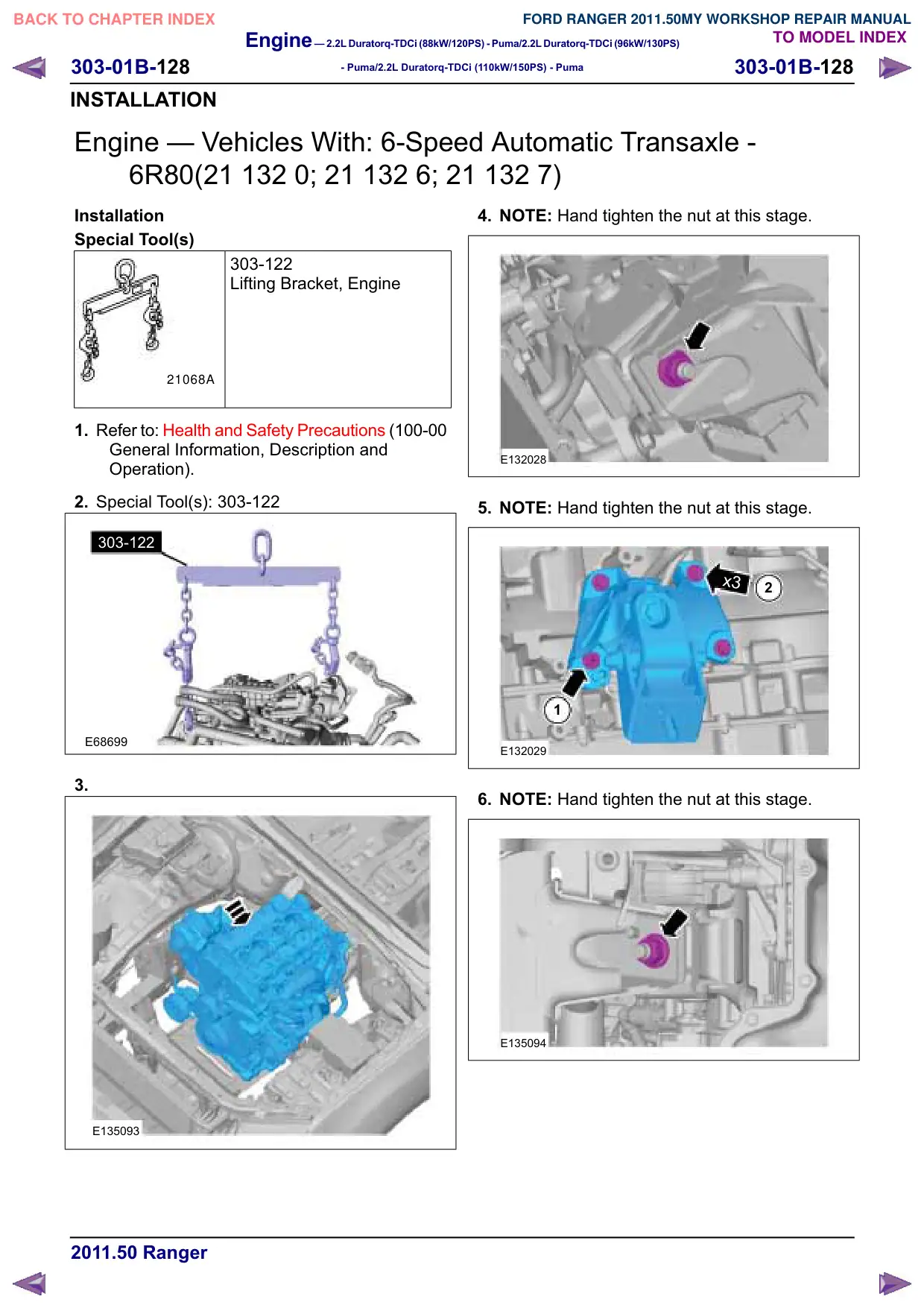

INSTALLATION
Engine – Vehicles With: 6-Speed Automatic Transaxle -
6R80(21 132 0; 21 132 6; 21 132 7)
Installation
Special Tool(s)
303-122
Lifting Bracket, Engine
21068A
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Special Tool(s): 303-122
303-122
E68699
3.
E135093
4. NOTE: Hand tighten the nut at this stage.
E132028
5. NOTE: Hand tighten the nut at this stage.
x3
2
1
E132029
6. NOTE: Hand tighten the nut at this stage.
E135094
