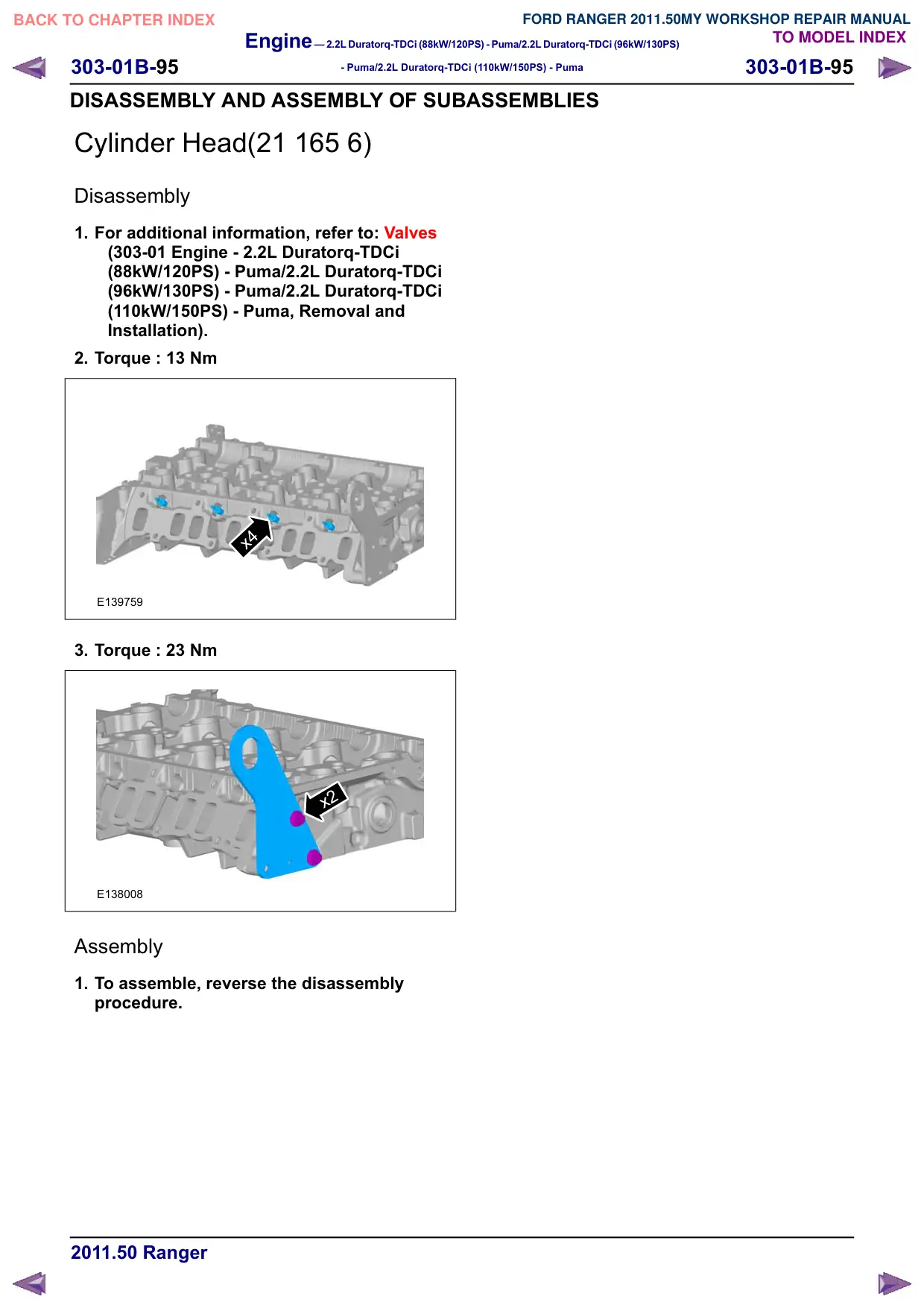

Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS)
303-01B-95
303-01B-95
- Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Cylinder Head(21 165 6)
Disassembly
1. For additional information, refer to: 9DOYHV
(303-01 Engine - 2.2L Duratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi
(96kW/130PS) - Puma/2.2L Duratorq-TDCi
(110kW/150PS) - Puma, Removal and
Installation).
2. Torque : 13 Nm
x4
E139759
3. Torque : 23 Nm
x2
E138008
Assembly
1. To assemble, reverse the disassembly
procedure.
