Motor – Veículos com: transmissão automática de 6 marchas -
Engine – Vehicles With: 6-Speed Automatic Transaxle -
Texto da página
Link desta página: https://ranger.mbrace.com.br/oficina/474
Imagem: https://ranger.mbrace.com.br/img/oficina/474.webp
Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS)
303-01B-72
303-01B-72
- Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma

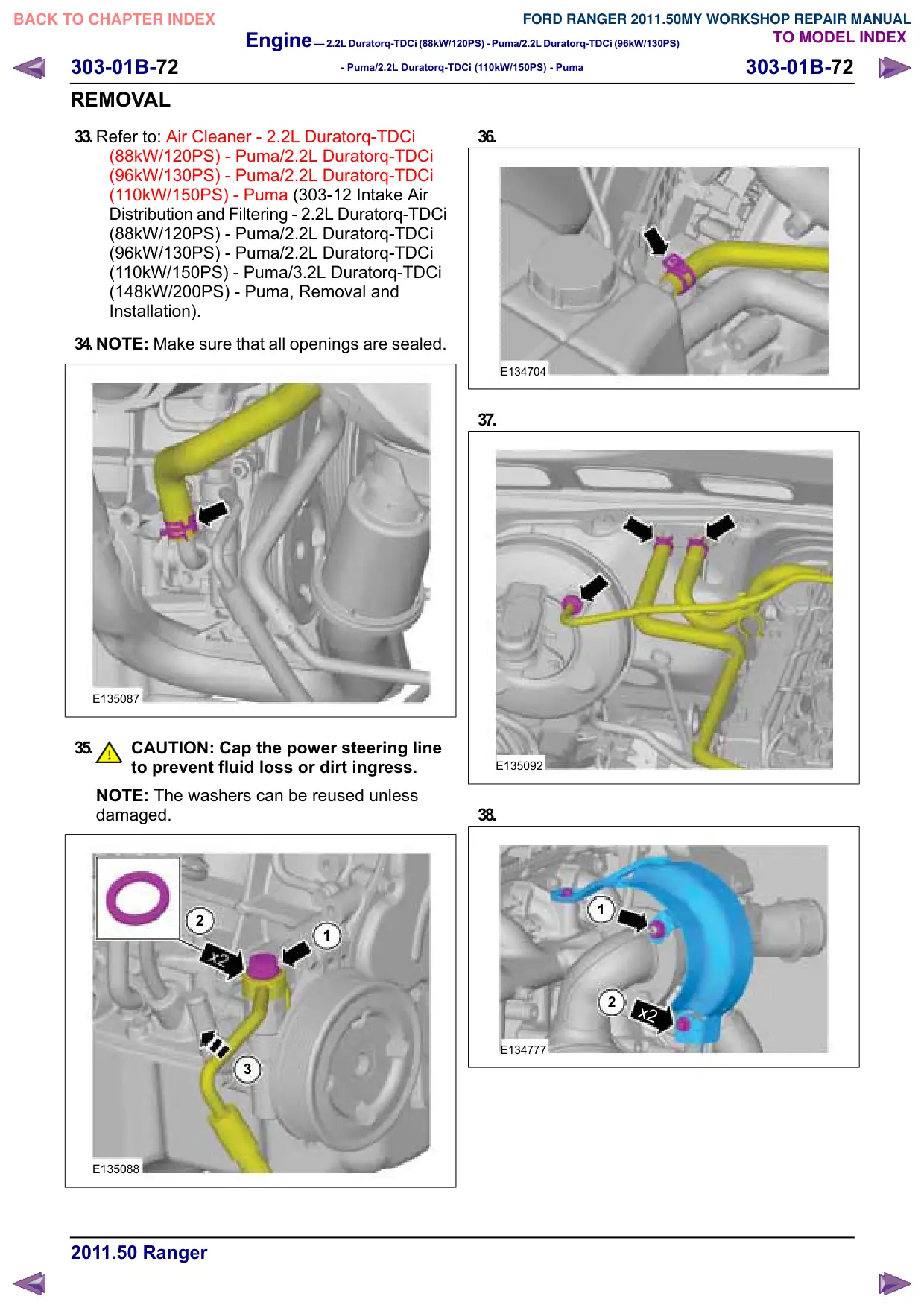

REMOVAL
33.Refer to: Air Cleaner - 2.2L Duratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi
(96kW/130PS) - Puma/2.2L Duratorq-TDCi
(110kW/150PS) - Puma (303-12 Intake Air
Distribution and Filtering - 2.2L Duratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi
(96kW/130PS) - Puma/2.2L Duratorq-TDCi
(110kW/150PS) - Puma/3.2L Duratorq-TDCi
(148kW/200PS) - Puma, Removal and
Installation).
34.NOTE: Make sure that all openings are sealed.
E135087
35.
CAUTION: Cap the power steering line
to prevent fluid loss or dirt ingress.
NOTE: The washers can be reused unless
damaged.
2
1
3
E135088
36.
E134704
37.
E135092
38.
1
2
x2
E134777
