Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS)
303-01B-44
303-01B-44
- Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma

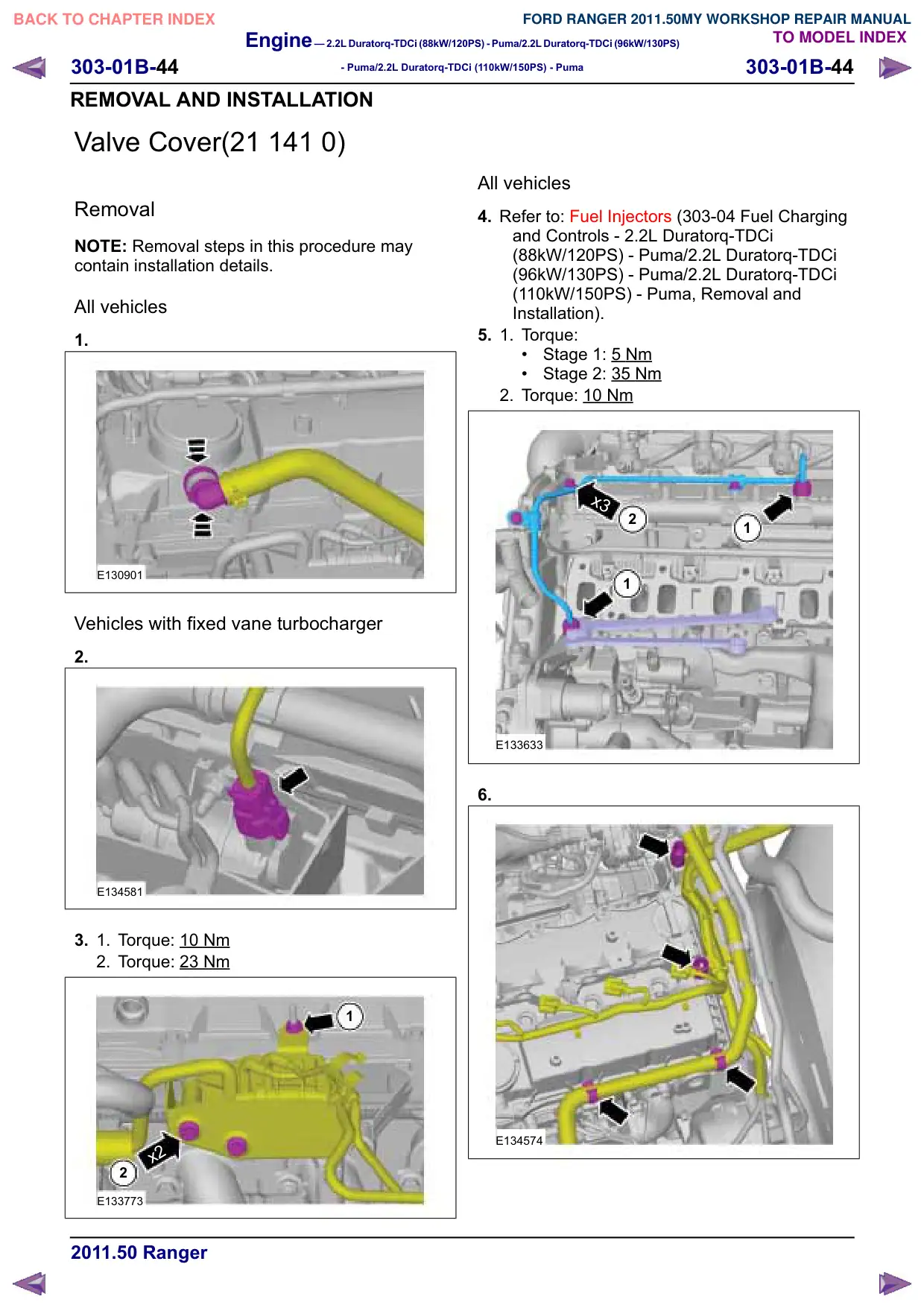

REMOVAL AND INSTALLATION
Valve Cover(21 141 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
All vehicles
1.
E130901
Vehicles with fixed vane turbocharger
2.
E134581
3.
1.
Torque: 10 Nm
2. Torque: 23 Nm
1
x2
2
E133773
All vehicles
4. Refer to: Fuel Injectors (303-04 Fuel Charging
and Controls - 2.2L Duratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi
(96kW/130PS) - Puma/2.2L Duratorq-TDCi
(110kW/150PS) - Puma, Removal and
Installation).
5.
1.
Torque:
Stage 1: 5 Nm
Stage 2: 35 Nm
2. Torque: 10
Nm
x3
2
1
1
E133633
6.
E134574
