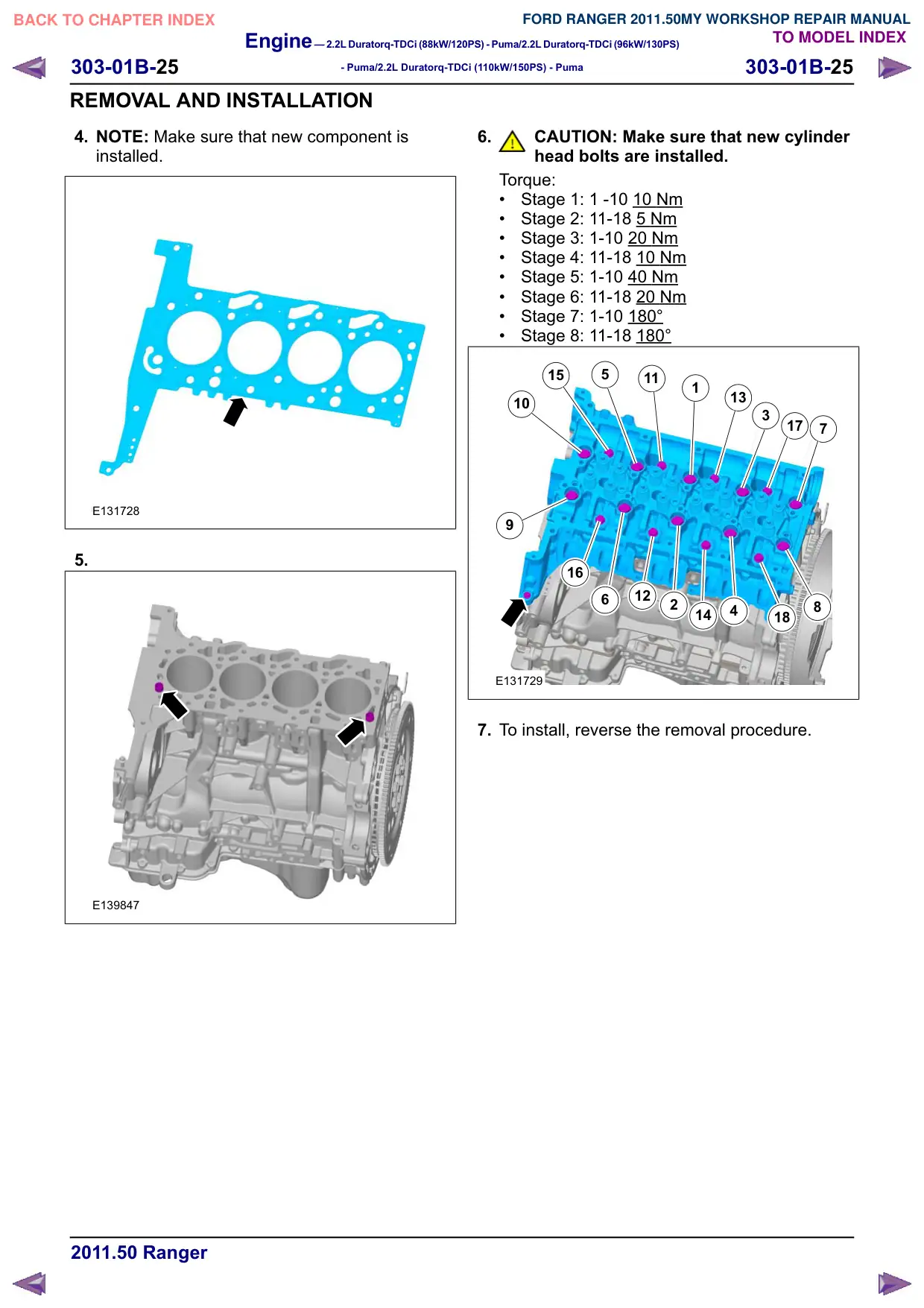

Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS)
303-01B-25
303-01B-25
- Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma
REMOVAL AND INSTALLATION
4. NOTE: Make sure that new component is
installed.
E131728
5.
E139847
6.
CAUTION: Make sure that new cylinder
head bolts are installed.
Torque:
Stage 1: 1 -10 10 Nm
Stage 2: 11-18 5 Nm
Stage 3: 1-10 20 Nm
Stage 4: 11-18 10 Nm
Stage 5: 1-10 40 Nm
Stage 6: 11-18 20 Nm
Stage 7: 1-10 180°
Stage 8: 11-18 180°
15
5
11
1
13
10
3
17
7
16
12
6
2
8
4
14
18
E131729
7. To install, reverse the removal procedure.
