Eixos de comando

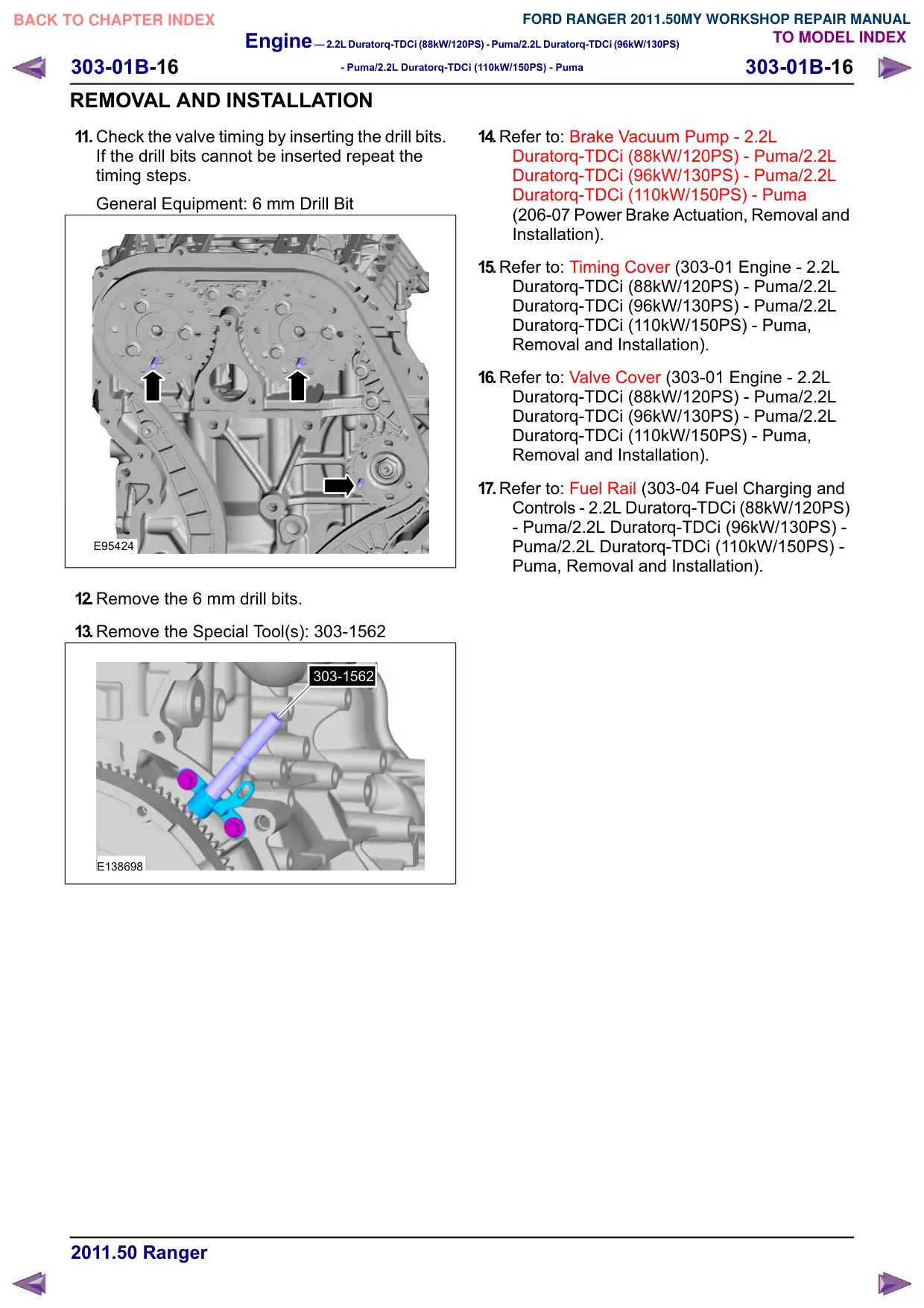

Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) 303-01B-16 303-01B-16 - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma REMOVAL AND INSTALLATION 11. Check the valve timing by inserting the drill bits. If the drill bits cannot be inserted repeat the timing steps. General Equipment: 6 mm Drill Bit E95424 12.Remove the 6 mm drill bits. 13.Remove the Special Tool(s): 303-1562 303-1562 E138698 14.Refer to: Brake Vacuum Pump - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma (206-07 Power Brake Actuation, Removal and Installation). 15.Refer to: Timing Cover (303-01 Engine - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma, Removal and Installation). 16.Refer to: Valve Cover (303-01 Engine - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma, Removal and Installation). 17.Refer to: Fuel Rail (303-04 Fuel Charging and Controls - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma, Removal and Installation).
