Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS)
303-01B-
303-01B-
- Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma
DESCRIPTION AND OPERATION

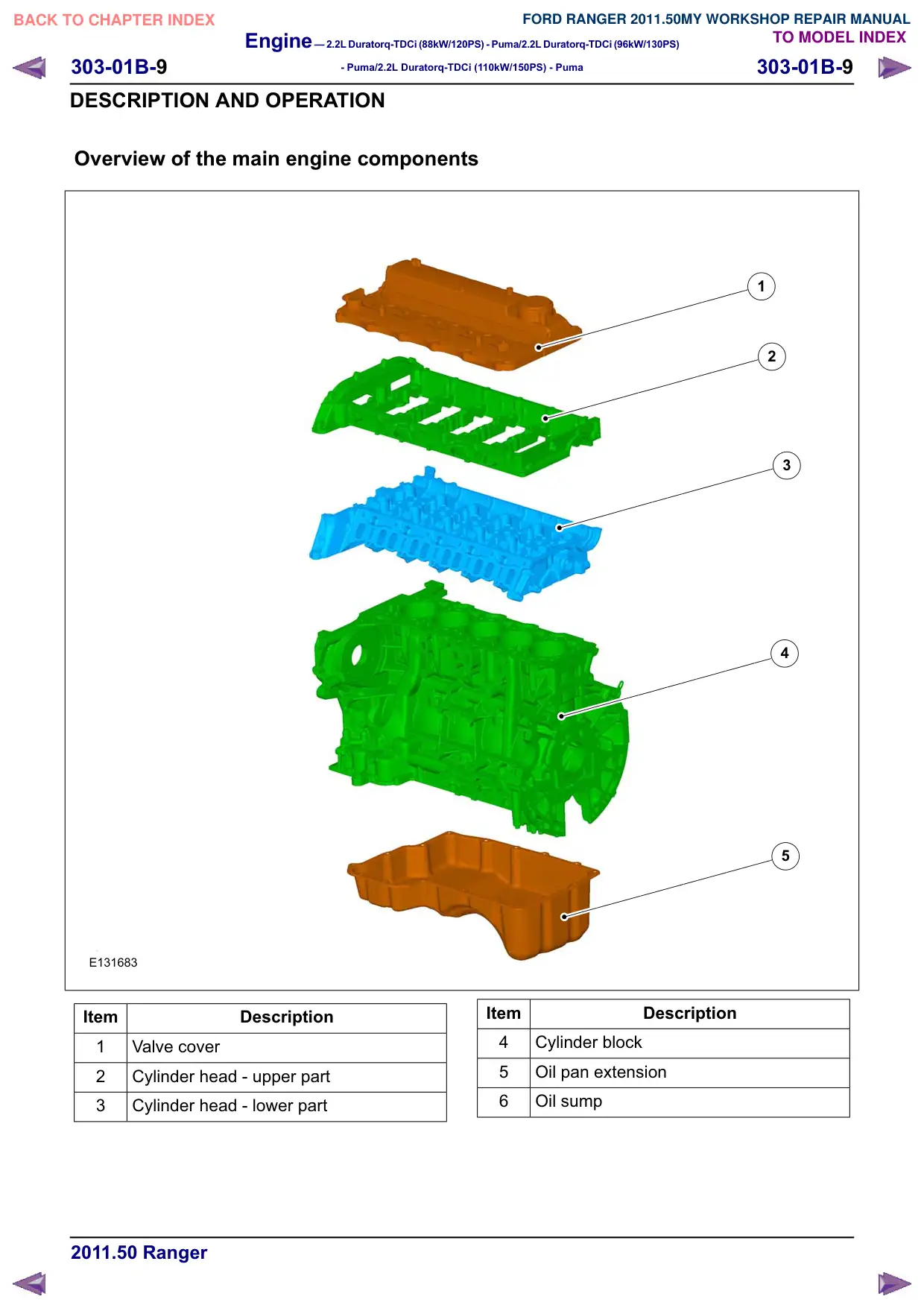

Overview of the main engine components
E131683
Item
Description
1
Valve cover
2
Cylinder head - upper part
3
Cylinder head - lower part
1
2
3
4
5
Item
Description
4
Cylinder block
5
Oil pan extension
6
Oil sump
