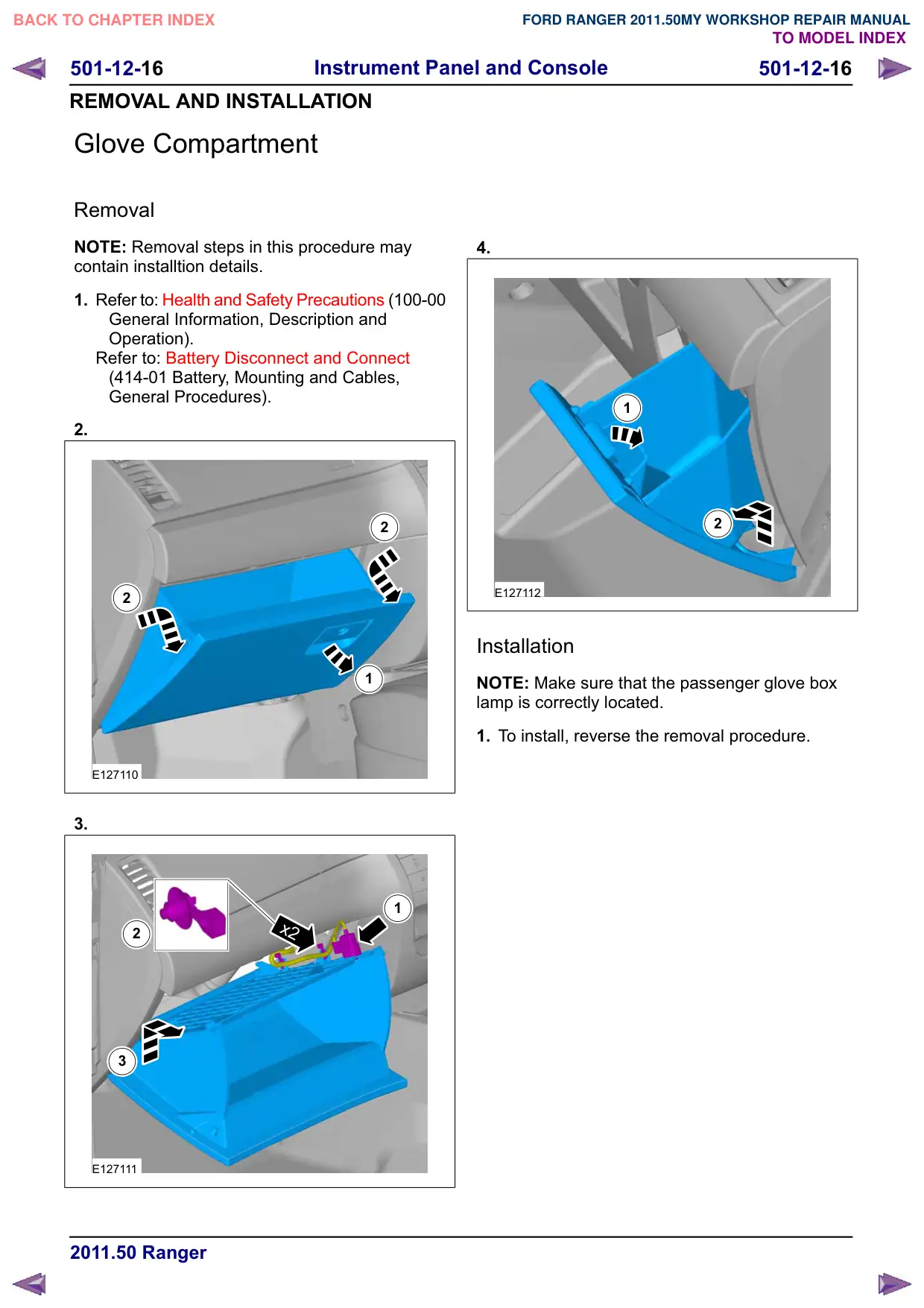

501-12-16
501-12-16
Instrument Panel and Console
REMOVAL AND INSTALLATION
Glove Compartment
Removal
NOTE: Removal steps in this procedure may
contain installtion details.
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
2.
2
2
1
E127110
3.
1
x2
2
3
E127111
4.
1
2
E127112
Installation
NOTE: Make sure that the passenger glove box
lamp is correctly located.
1. To install, reverse the removal procedure.
