Alternador – 3.2L Duratorq-TDCi (148kW/200PS) -

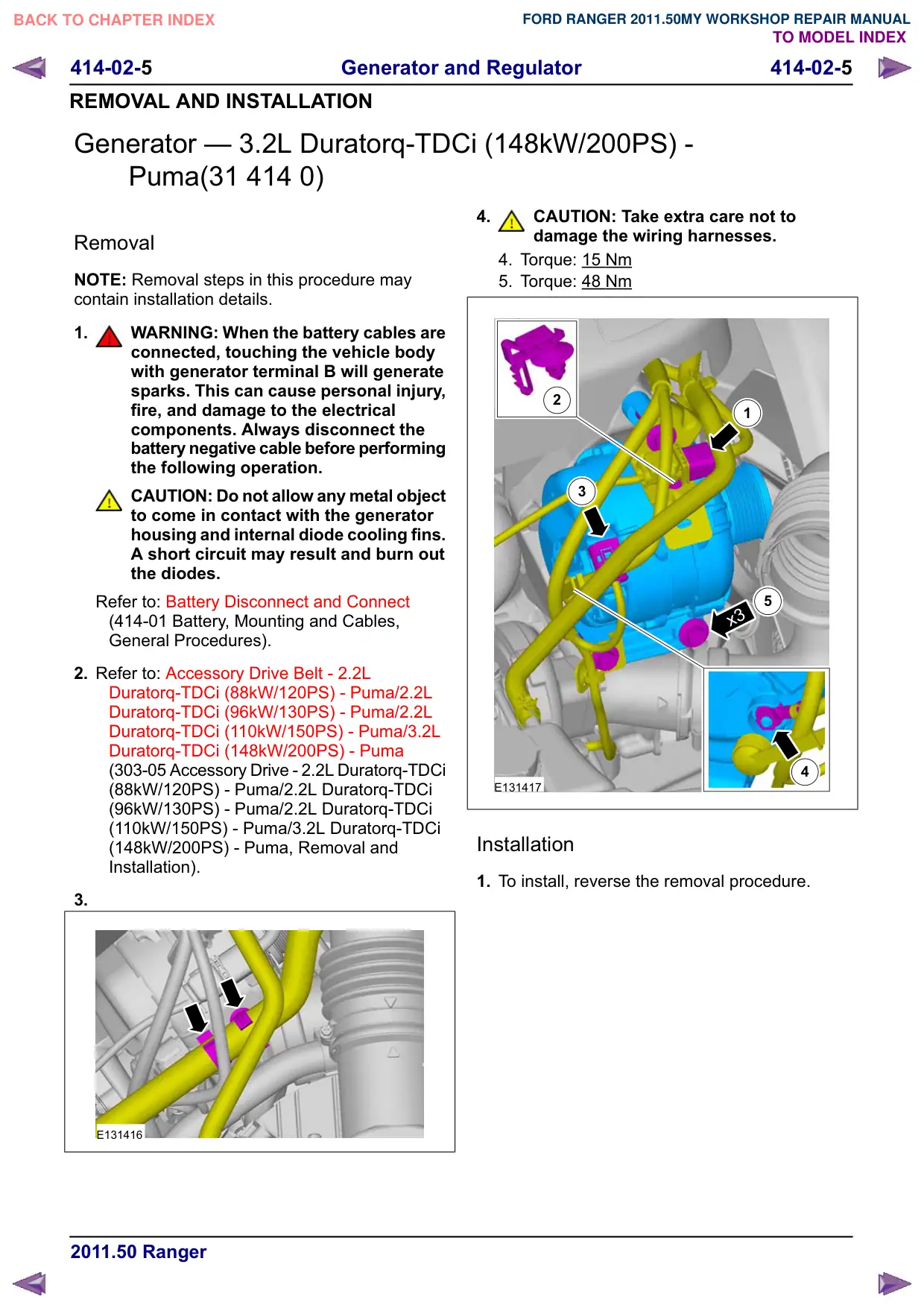

414-02-5 Generator and Regulator 414-02-5 REMOVAL AND INSTALLATION Generator – 3.2L Duratorq-TDCi (148kW/200PS) - Puma(31 414 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. WARNING: When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cable before performing the following operation. CAUTION: Do not allow any metal object to come in contact with the generator housing and internal diode cooling fins. A short circuit may result and burn out the diodes. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Accessory Drive Belt - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma (303-05 Accessory Drive - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 3. E131416 4. CAUTION: Take extra care not to damage the wiring harnesses. 4. Torque: 15 Nm 5. Torque: 48 Nm 2 1 3 5 x3 4 E131417 Installation 1. To install, reverse the removal procedure.
