Roda e pneu

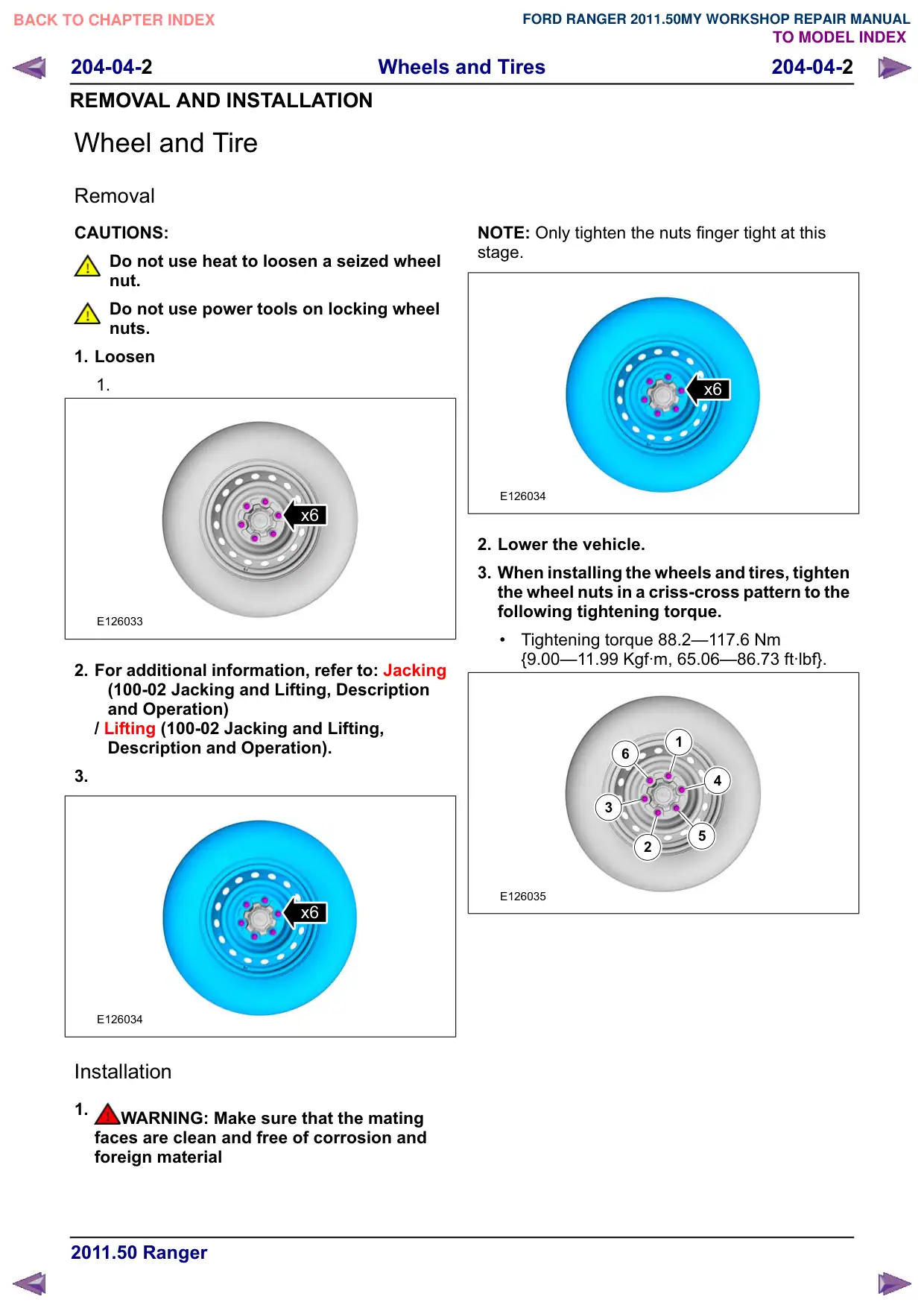

Wheels and Tires 204-04-2 204-04-2 REMOVAL AND INSTALLATION Wheel and Tire Removal CAUTIONS: Do not use heat to loosen a seized wheel nut. Do not use power tools on locking wheel nuts. 1. Loosen 1. x6 E126033 2. For additional information, refer to: Jacking (100-02 Jacking and Lifting, Description and Operation) / Lifting (100-02 Jacking and Lifting, Description and Operation). 3. x6 E126034 Installation 1. WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material NOTE: Only tighten the nuts finger tight at this stage. x6 E126034 2. Lower the vehicle. 3. When installing the wheels and tires, tighten the wheel nuts in a criss-cross pattern to the following tightening torque. ‡ Tightening torque 88.2–117.6 Nm {9.00–11.99 Kgf‡m, 65.06–86.73 ft‡lbf}. 1 6 4 3 5 2 E126035
