Conector em linha 44—E (G1404949)
In-Line Connector 44—E (G1404949)
Texto da página
Link desta página: https://ranger.mbrace.com.br/eletrico/604
Imagem: https://ranger.mbrace.com.br/img/eletrico/604.webp
700-04-26

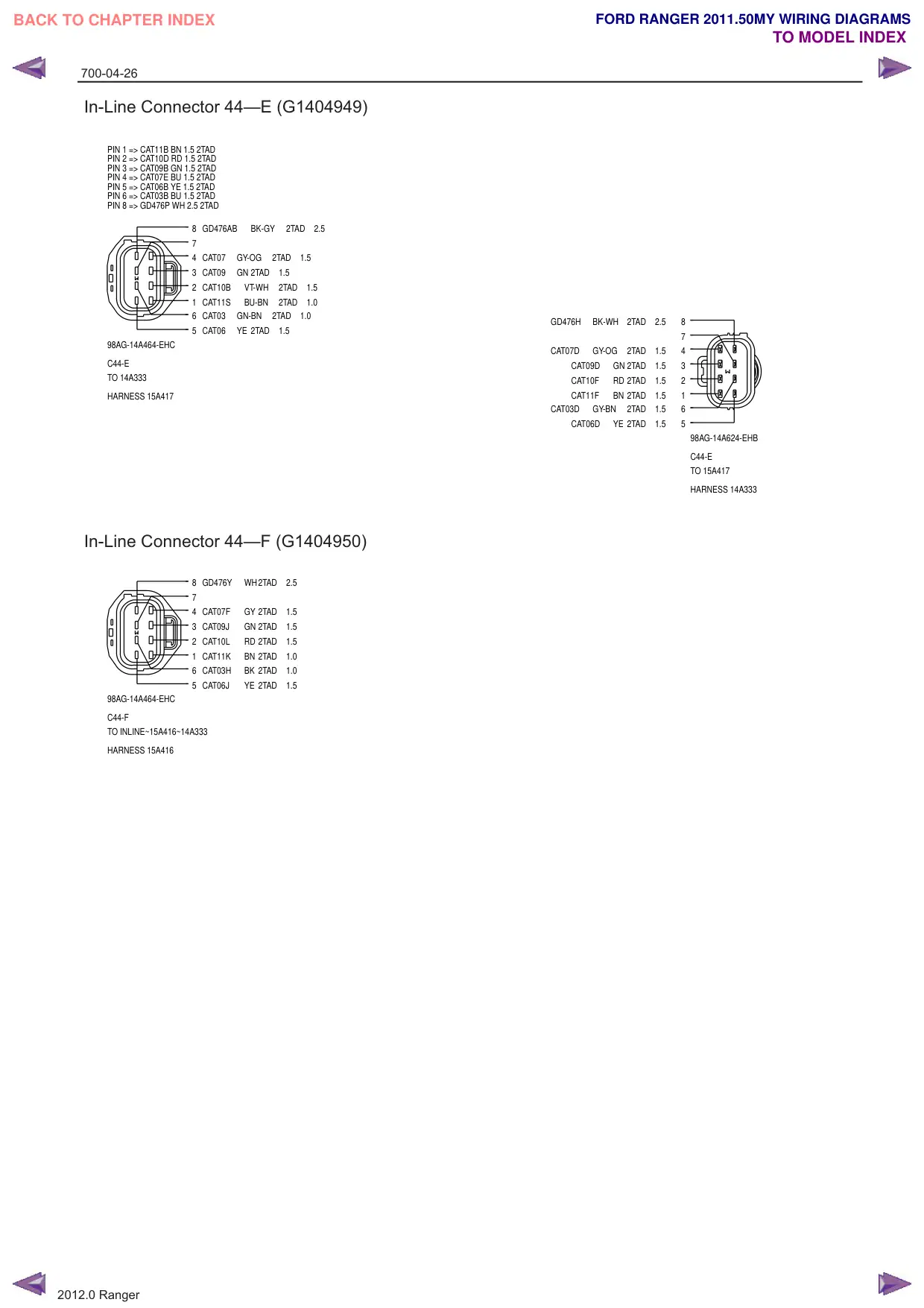

In-Line Connector 44—E (G1404949)
PIN 1 => CAT11B BN 1.5 2TAD
PIN 2 => CAT10D RD 1.5 2TAD
PIN 3 => CAT09B GN 1.5 2TAD
PIN 4 => CAT07E BU 1.5 2TAD
PIN 5 => CAT06B YE 1.5 2TAD
PIN 6 => CAT03B BU 1.5 2TAD
PIN 8 => GD476P WH 2.5 2TAD
8
GD476AB
BK-GY
2TAD
2.5
7
4
CAT07
GY-OG
2TAD
1.5
3
CAT09
GN
2TAD
1.5
2
CAT10B
VT-WH
2TAD
1.5
1
CAT11S
BU-BN
2TAD
1.0
6
CAT03
GN-BN
2TAD
1.0
5
CAT06
YE
2TAD
1.5
98AG-14A464-EHC
C44-E
TO 14A333
HARNESS 15A417
In-Line Connector 44—F (G1404950)
8
GD476Y
WH
2TAD
2.5
7
4
CAT07F
GY
2TAD
1.5
3
CAT09J
GN
2TAD
1.5
2
CAT10L
RD
2TAD
1.5
1
CAT11K
BN
2TAD
1.0
6
CAT03H
BK
2TAD
1.0
5
CAT06J
YE
2TAD
1.5
98AG-14A464-EHC
C44-F
TO INLINE~15A416~14A333
HARNESS 15A416
2012.0 Ranger
GD476H
BK-WH
2TAD
2.5
8
7
CAT07D
GY-OG
2TAD
1.5
4
CAT09D
GN
2TAD
1.5
3
CAT10F
RD
2TAD
1.5
2
CAT11F
BN
2TAD
1.5
1
CAT03D
GY-BN
2TAD
1.5
6
CAT06D
YE
2TAD
1.5
5
98AG-14A624-EHB
C44-E
TO 15A417
HARNESS 14A333
