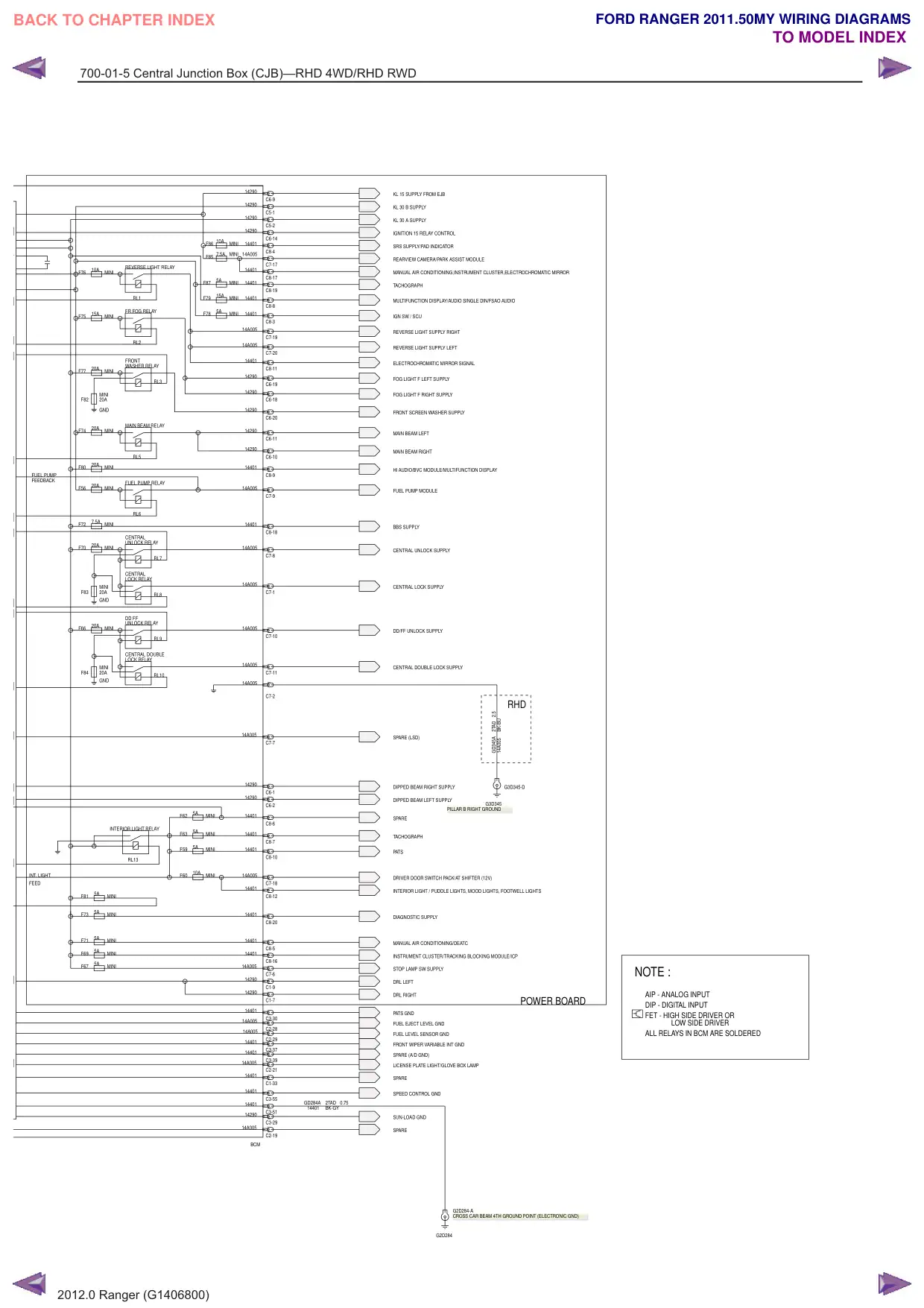

Caixa de junção central (CJB)—RHD 4WD/RHD RWD

700-01-5 Central Junction Box (CJB)—RHD 4WD/RHD RWD 14290 KL 15 SUPPLY FROM EJB C6-9 14290 KL 30 B SUPPLY C5-1 14290 KL 30 A SUPPLY C5-2 14290 IGNITION 15 RELAY CONTROL 10A C6-14 F86 MINI 14401 SRS SUPPLY/PAD INDICATOR 7.5A MINI 14A005 C8-4 T F85 REARVIEW CAMERA/PARK ASSIST MODULE C7-17 10A REVERSE LIGHT RELAY 14401 F76 MINI MANUAL AIR CONDITIONING,INSTRUMENT CLUSTER,ELECTROCHROMATIC MIRROR C8-17 F87 5A MINI 14401 TACHOGRAPH C8-19 15A RL1 F79 MINI 14401 MULTIFUNCTION DISPLAY/AUDIO SINGLE DIN/FSAO AUDIO C8-8 FR FOG RELAY 5A 15A F78 MINI 14401 F75 MINI IGN SW / SCU C8-3 14A005 REVERSE LIGHT SUPPLY RIGHT C7-19 RL2 14A005 REVERSE LIGHT SUPPLY LEFT C7-20 FRONT 14401 WASHER RELAY ELECTROCHROMATIC MIRROR SIGNAL F77 20A MINI C8-11 14290 RL3 FOG LIGHT F LEFT SUPPLY C6-19 MINI 14290 FOG LIGHT F RIGHT SUPPLY F82 20A C6-18 GND 14290 FRONT SCREEN WASHER SUPPLY C6-20 MAIN BEAM RELAY F74 20A MINI 14290 MAIN BEAM LEFT C6-11 14290 MAIN BEAM RIGHT RL5 C6-10 20A F80 MINI 14401 HI AUDIO/BVC MODULE/MULTIFUNCTION DISPLAY FUEL PUMP C8-9 FEEDBACK FUEL PUMP RELAY F56 20A MINI 14A005 FUEL PUMP MODULE C7-9 RL6 F72 7.5A MINI 14401 BBS SUPPLY C8-18 CENTRAL UNLOCK RELAY F70 20A MINI 14A005 CENTRAL UNLOCK SUPPLY RL7 C7-8 CENTRAL LOCK RELAY 14A005 MINI CENTRAL LOCK SUPPLY F83 20A RL8 C7-1 GND DD FF UNLOCK RELAY F66 20A MINI 14A005 DD/FF UNLOCK SUPPLY C7-10 RL9 CENTRAL DOUBLE LOCK RELAY 14A005 MINI CENTRAL DOUBLE LOCK SUPPLY F84 20A C7-11 RL10 GND 14A005 C7-2 14A005 SPARE (LSD) C7-7 14290 DIPPED BEAM RIGHT SUPPLY C6-1 14290 DIPPED BEAM LEFT SUPPLY C6-2 5A F62 MINI 14401 SPARE C8-6 INTERIOR LIGHT RELAY 5A F63 MINI 14401 TACHOGRAPH C8-7 5A F59 MINI 14401 PATS RL13 C8-10 INT. LIGHT F60 10A MINI 14A005 DRIVER DOOR SWITCH PACK/AT SHIFTER (12V) FEED C7-18 14401 5A INTERIOR LIGHT / PUDDLE LIGHTS, MOOD LIGHTS, FOOTWELL LIGHTS F81 MINI C8-12 5A F73 MINI 14401 DIAGNOSTIC SUPPLY C8-20 F71 5A MINI 14401 MANUAL AIR CONDITIONING/DEATC C8-5 F69 5A MINI 14401 INSTRUMENT CLUSTER/TRACKING BLOCKING MODULE/ICP 5A C8-16 F67 MINI 14A005 STOP LAMP SW SUPPLY C7-6 14290 DRL LEFT C1-9 14290 DRL RIGHT C1-7 14401 PATS GND C3-30 14A005 FUEL EJECT LEVEL GND C2-28 14A005 FUEL LEVEL SENSOR GND 14401 C2-29 FRONT WIPER VARIABLE INT GND 14401 C3-37 SPARE (A/D GND) C3-39 14A005 LICENSE PLATE LIGHT/GLOVE BOX LAMP C2-21 14401 SPARE C1-33 14401 SPEED CONTROL GND C3-55 GD284A 2TAD 0.75 14401 14401 BK-GY C3-51 14290 SUN-LOAD GND C3-29 14A005 SPARE C2-19 BCM 2012.0 Ranger (G1406800) RHD 2.5 BK-BU 2TAD GD345A 14A005 G3D345-D G3D345 PILLAR B RIGHT GROUND NOTE : AIP - ANALOG INPUT POWER BOARD DIP - DIGITAL INPUT FET - HIGH SIDE DRIVER OR LOW SIDE DRIVER ALL RELAYS IN BCM ARE SOLDERED G2D284-A CROSS CAR BEAM 4TH GROUND POINT (ELECTRONIC GND) G2D284
