303-04D-1
Fuel Charging and Controls - Turbocharger
303-04D-1
.
SECTION 303-04D Fuel Charging and Controls -
Turbocharger
VEHICLE APPLICATION: 2012.0 Ranger
CONTENTS

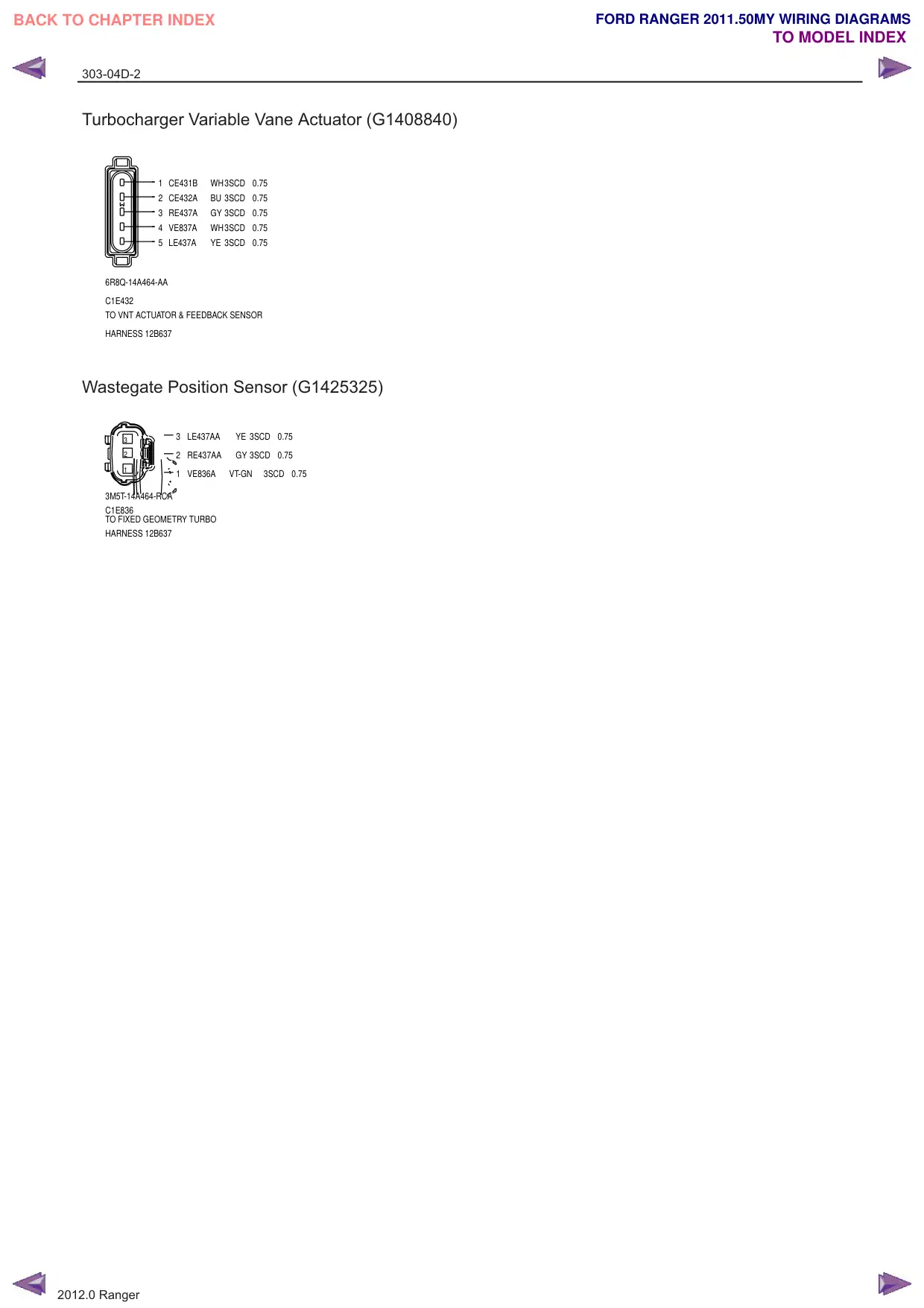

ELECTRICAL CONNECTORS
Turbocharger Variable Vane Actuator.................................................................................
Wastegate Position Sensor................................................................................................
PAGE
303-04D-2
303-04D-2
