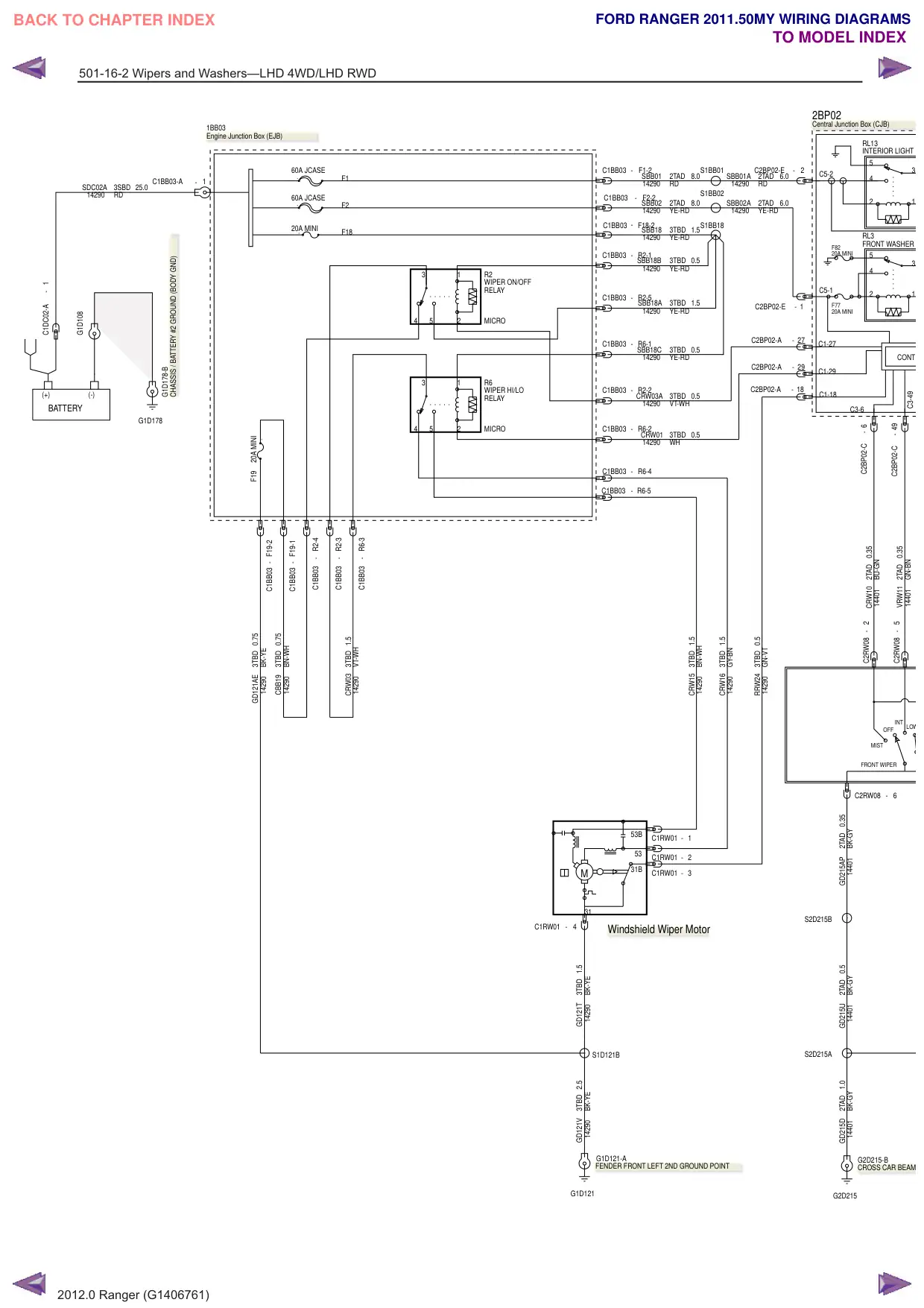

501-16-1 Wipers and Washers 501-16-1 . SECTION 501-16 Wipers and Washers VEHICLE APPLICATION: 2012.0 Ranger CONTENTS ELECTRICAL SCHEMATICS Wipers and Washers — LHD 4WD/LHD RWD................................................................... Wipers and Washers — RHD 4WD/RHD RWD.................................................................. ELECTRICAL CONNECTORS Rain Sensor........................................................................................................................ Windshield Washer Pump.................................................................................................. Windshield Wiper Motor...................................................................................................... Windshield Wiper/Washer Switch....................................................................................... Windshield Wiper/Washer Switch — A............................................................................... PAGE 501-16-2 501-16-4 501-16-6 501-16-6 501-16-6 501-16-6 501-16-7
